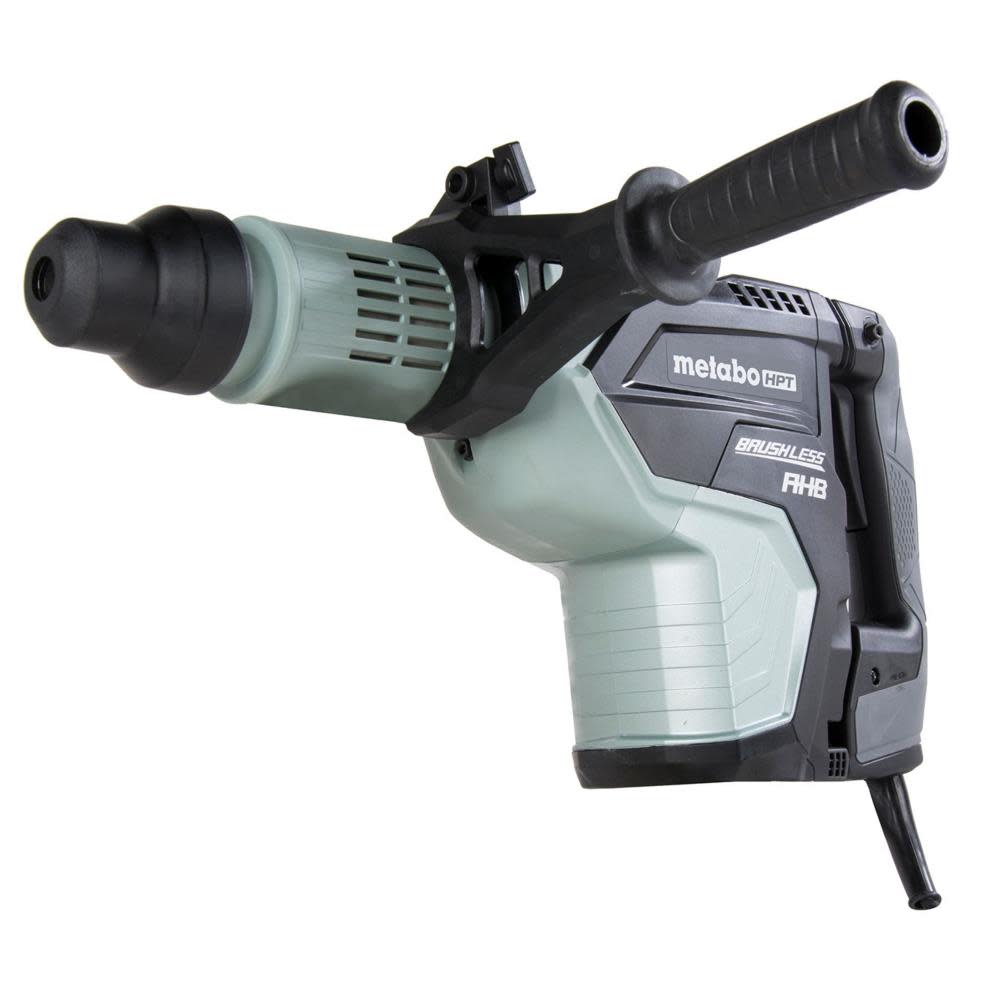

1-3/4 Inch SDS Max Rotary Hammer with Aluminum Housing Body | DH45ME
The DH45ME rotary hammer with AC Brushless motor and AHB (aluminum housing body) construction is the perfect combination of performance and comfort. With top class drilling speed, this hammer is made for hard work. It features the AHB construction that provides significant durability and extended tool life. The Brushless motor allows the tool to operate over an extra long extension cord with reduced power loss, and also eliminates maintenance of armatures or carbon brushes. This rotary hammer delivers superior performance when powered by a generator due to an internal inverter circuit that regulates uneven power supply for ultimate jobsite convenience.
Features
IMPACT: 9.9 ft-lbs of impact energy for busting through hard material
IMPACT RATE: 2,500 Full load max impact rate to quickly remove stubborn material
MOTOR: 1500 watts of input power for increased productivity
LOW VIBRATION: UVP (User Vibration Protection) technology greatly reduces vibration for comfortable extended use and fewer vibration related injuries via the use of internal counterweights and springs, as well as low vibration handles
BODY: AHB (Aluminum Housing Body) construction significantly enhances the internal and external durability of the tool
BRUSHLESS: Ultra efficient AC Brushless motor that permits the use of extra-long extension cords with reduced power loss, extends product life and eliminates maintenance of armatures or carbon brushes
CHANGE LEVER: Located on top of tool for easy access – rotates for hammer drilling or hammer only with a neutral position for transitions
CONSTANT SPEED: Control increases power to the tool when under load to keep speed constant for smooth drilling
ACCEPTS: Fits popular SDS Max bits
Idle strike restrictor to prevent no-load activation and additional wear on the tool
Needle pin slip clutch disengages the gears immediately if a bit binds (such as on rebar) to prevent the tool from whipping around
Variable lock mechanism in neutral position allows for 12-angle positions for optimal working angle options
Quick release bit system for fast and simple bit replacements for different applications
Continuous operation button located at the base of the handle when in hammer mode only, for less fatigue when chiseling for extended periods (on DH45 & DH52 models only)
Large trigger switch for easy operation and less fatigue
Constant speed control increases power to the tool when under load to keep speed constant for smooth drilling
Power indicator lamp lights up when power is supplied to the tool
Soft, non-slip elastomer grip handle for improved comfort and control
360 Degree adjustable side handle for optimal comfort and control
Depth stopper rod for drilling accuracy
Specifications
Acme Tools Brand Name
METABO HPT
Acme Tools Part Number
DH45MEM
Amperage (A)
0
Assembled Weight (lbs)
6.83
California Proposition 65 Warning Required
Yes
Chuck Capacity
SDS Max
Chuck Design
Keyless
Chuck Size
SDS-Max
Color / Finish
Silver/Green
Cordless / Corded
Corded
Core Bit Capacity (in)
4.91
Country of Origin
Malaysia
CSA Certified
Yes
ETL Listed
No
Handle Type
D-shaped handle
Impact Energy
9.9 ft-lbs.
Internal Supplier Part #
DH45MEM
Internet Product Code (IPC)
B0D3371F5E6
Length (in)
21.06
Manufacturer Warranty
Comes with professional 1-year warranty
Material
Aluminum die casting alloy, magnesium die casting alloy and nylon resin
Maximum RPM
270
Net Tool Weight (lbs)
19.8
Package Contents

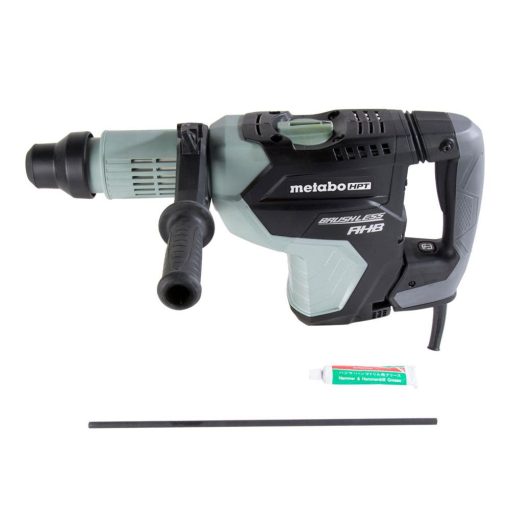

Tool, side handle, depth stopper rod, grease, carrying case
Package Depth
5.79
Package Height
16.22
Package Weight
30.86
Package Weight (lbs)
30.86
Powered Tool Power Source
Electric – Corded
Product Storage Included
Case
Reverse
No
Side Handle
Yes
Thin Wall Core Bit Capacity
Yes
Type of Modes
Rotation + hammering, Hammer only
UL Listed
Yes
Variable Speed
Yes
Voltage
120
Voltage (V)
120
Width (in)
4.56
