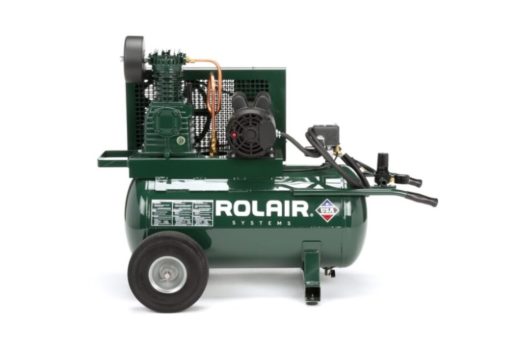

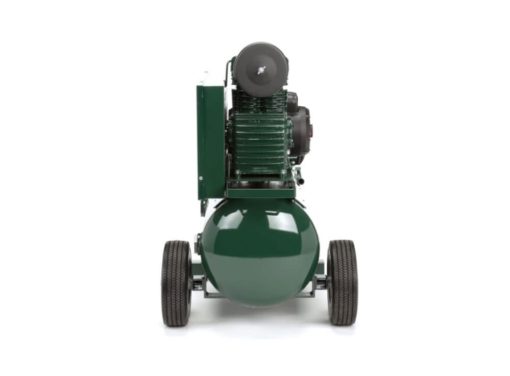

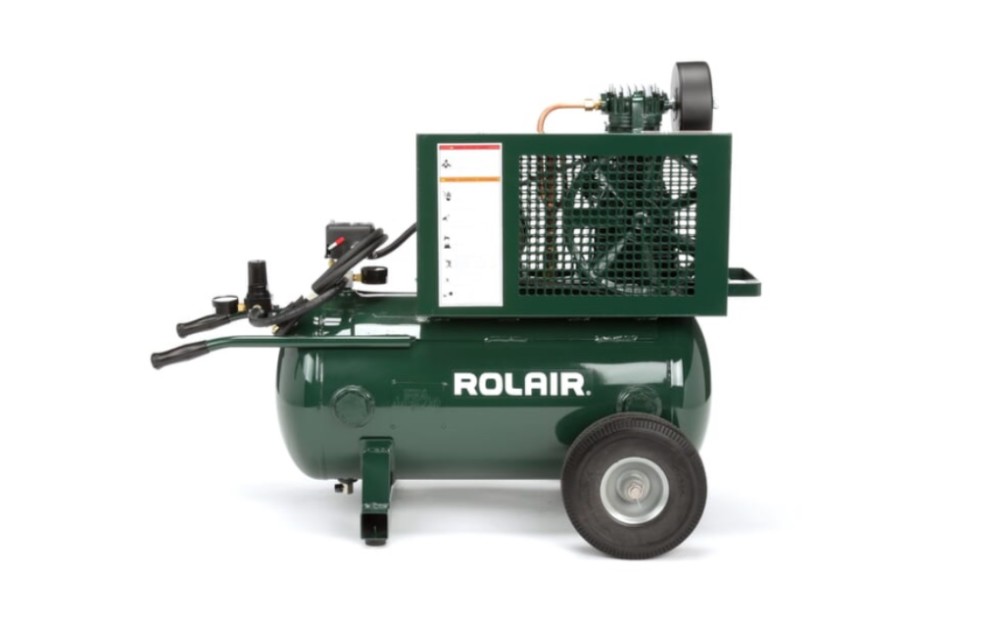

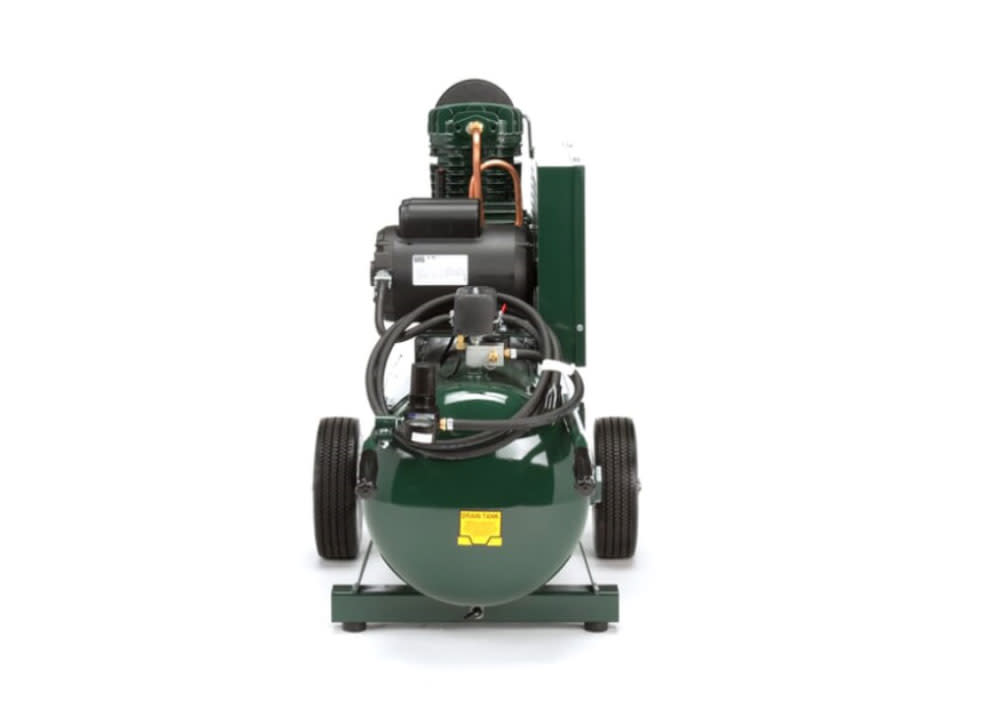

1.5 HP (115V), 7.3 CFM@90PSI, 20 Gallon ASME Compressor

$120.33

1000 in stock

SKU: 662865258752 Category:

Description

Description

1.5 HP (115V), 7.3 CFM@90PSI, 20 Gallon ASME Compressor

This model provides the most reserve air available in an electric wheelbarrow, with a 20 Gallon ASME tank–more than twice the storage capacity of the standard twin tank. Capable of running on a 20 Amp breaker, this unit will deliver 7.3 CFM, doubling the output of many direct-drive units. Additionally, the low RPM pump and motor combine for quiet operation. Battle tested contractor tough? There’s only one way to find out. Get it dirty, run it hot and don’t let up – just like a contractor. That’s how they’re used, so that’s how they’re tested. Engines, pumps, motors, switches – every component of every ROLAIR compressor is battle-tested both in the field and at our Wisconsin factory. You have our guarantee that your ROLAIR compressor is ready to roll on day one, no excuses.



View Warning Label

Features


Capable of running 3-4 framing guns, 3-5 roofing guns, or 7-9 trim/finish guns

20 Gallon ASME-certified tank more than doubles the reserve air of a standard twin tank

Two-cylinder, high-efficiency single-stage pump includes cast iron cylinders, stainless steel reed valves, oil sight glass, oil drain extension, finned after cooler and automotive style bearing inserts

Heavy-duty two piece 16 gauge bolted belt guard

Includes: stop-start pressure switch, thermal overload w/manual reset, regulator and gauge set, ball valve drains, safety valve and cold-start valve and tank is not rated for California use.

Specifications

Acme Tools Brand Name
ROLAIR
Acme Tools Part Number
5520K17A-0001
Air Compressor Pump Design
Oil Lubricated
Air Delivery (scfm) @ 40PSI
7.9
Air Delivery (scfm) @ 90PSI
7.3
Amperage (A)
17.0
Assembled Weight (lbs)
171.0
California Proposition 65 Warning Required
Yes
Carrying System
Wheeled
Color / Finish
Green
Compressor Design
Wheelbarrow/Wheeled
Compressor Uses
Pneumatic tools including nail & staple guns
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
United States
ETL Listed
No
Full Roll Cage
No
Height (in)
34.0
Horsepower (hp)
1.5
Internal Supplier Part #
5520K17A-0001
Internet Product Code (IPC)
A915307FA0D
Length (in)
42.0
Lock-on Switch
No
Manufacturer Warranty
12 Months from Date of Purchase or 18 Months from Date of Manufacture
Maximum Pressure Rating (psi)
135.0
Motor Type
Induction
Nozzle Fitting Size
3/8 In.
Operating Position
Horizontal
Package Contents
Air Compressor
Package Weight
200.0
Package Weight (lbs)
200
Regulator
Yes
Side Handle
Yes
Switch Type
Pressure
Tank Capacity (gal)
20.0
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Portable
UL Listed
Yes
Voltage
115
Voltage Rating
115
Weight (lbs)
198.0
Wheel Width
3.5
Wheeled
Yes
Width (in)
22.0
Working Pressure Gauge
Yes
