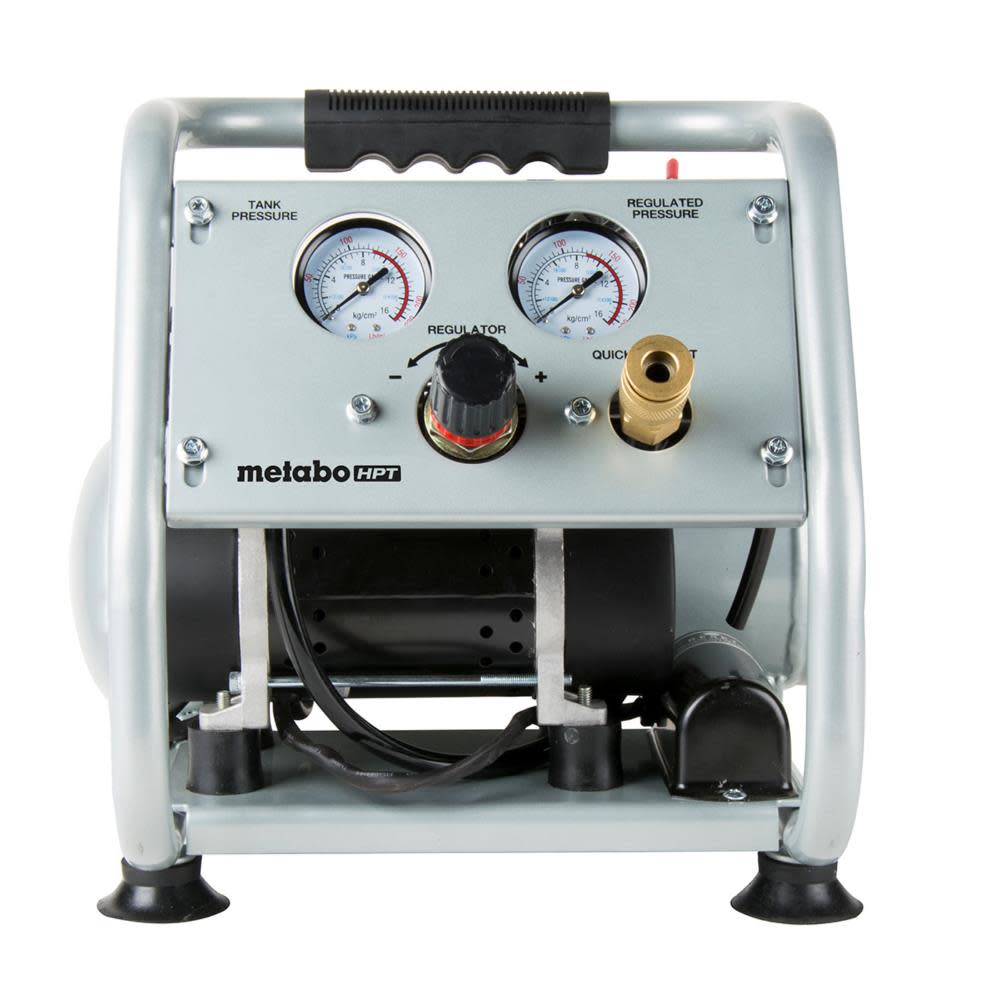

1 Gallon Quiet Compressor
The EC28MM is MetaboHPT’s first quiet compressor that features an industrial oil-free pump that not only provide high durability, but also delivers maintenance free operation. The motor is protected by an overload protection circuit that cuts off power in the case of an overload situation. Weighing just 25.2 lbs. and designed with an ergonomically shaped rubber carrying handle, the EC28MM is easy to transport around any jobsite. The steel roll cage protects the steel encased industrial gauges and all other critical components. The EC28MM has a zero set-up time, and is ready to plug and play straight out of the box.
Features
QUIET: Ultra-quiet operation at only 59 dB’s: so quiet that a normal conversation can take place while the compressor is cycling and the compressor sound is barely noticeable
OIL-FREE: Quiet industrial oil-free pump provides high durability with no maintenance
SAFETY: Motor thermal overload protection stops the motor in a possible overheating situation
QUICK COUPLER: Factory installed industrial quick coupler for easy one handed hose connection
FLEXIBLE: Stainless steel braided discharge hose resists corrosion and remains flexible

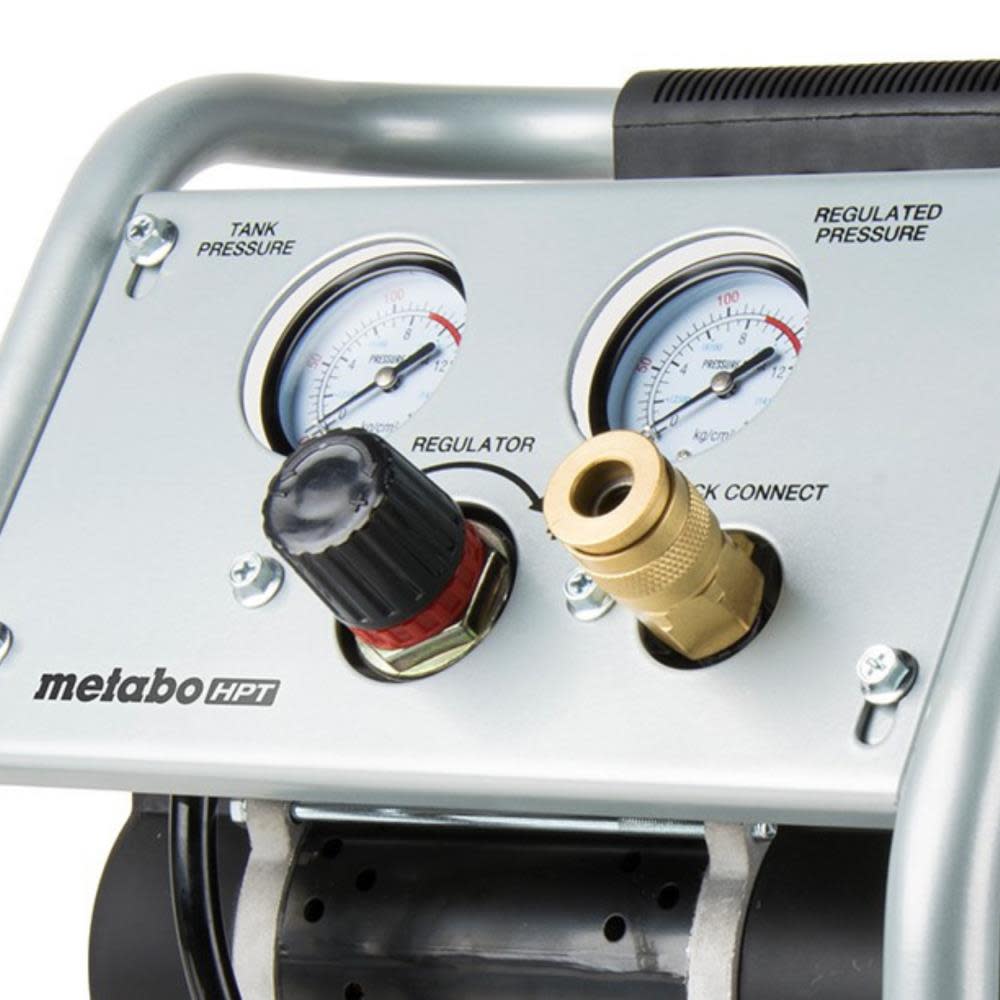

CONTROL PANEL: Integrated control panel protects the gauges and plumbing while centralizing the controls for simple operation
GRIP: Steel roll cage with rubber grip protects all critical components and provides comfort during transport
CORD: 6-1/2 feet length
DIMENSIONS: 14” L x 14” W x 13.5” H
Specifications
Acme Tools Brand Name
METABO HPT
Acme Tools Part Number
EC28MM
Air Compressor Pump Design
Oil Free
Amperage (A)
2.8
Assembled Weight (lbs)
25.2
California Proposition 65 Warning Required
Yes
Color / Finish
MetaboHPt Green and Black
Compressor Design
Portable (Hand Carried)
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
No
ETL Listed
Yes
Height (in)
13.5
Horsepower (hp)
0.5
Internal Supplier Part #
EC28MM
Internet Product Code (IPC)
0622C01EC7B
Length (in)
14
Manufacturer Warranty
1 Year
Maximum Pressure Rating (psi)
125
Motor Type
N/A
Operating Position
Vertical
Package Depth
14
Package Height
14
Package Weight
27
Package Weight (lbs)
27
Tank Capacity (gal)
1
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Portable
UL Listed
No
Voltage
120
Voltage Rating
120
Weight (lbs)
14
Wheeled
No
Width (in)
13.5
