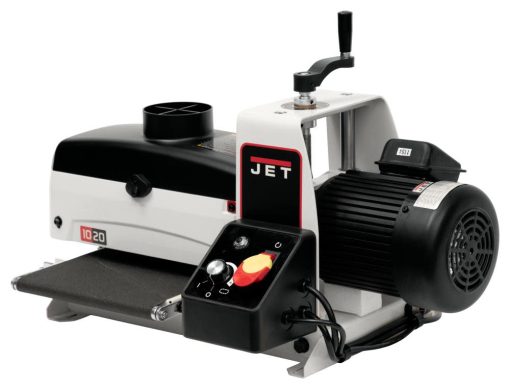

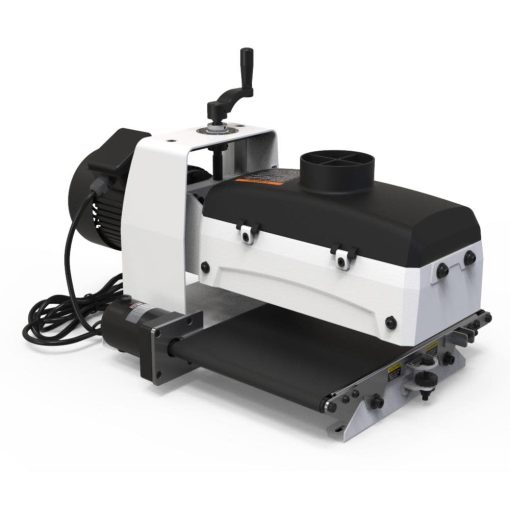

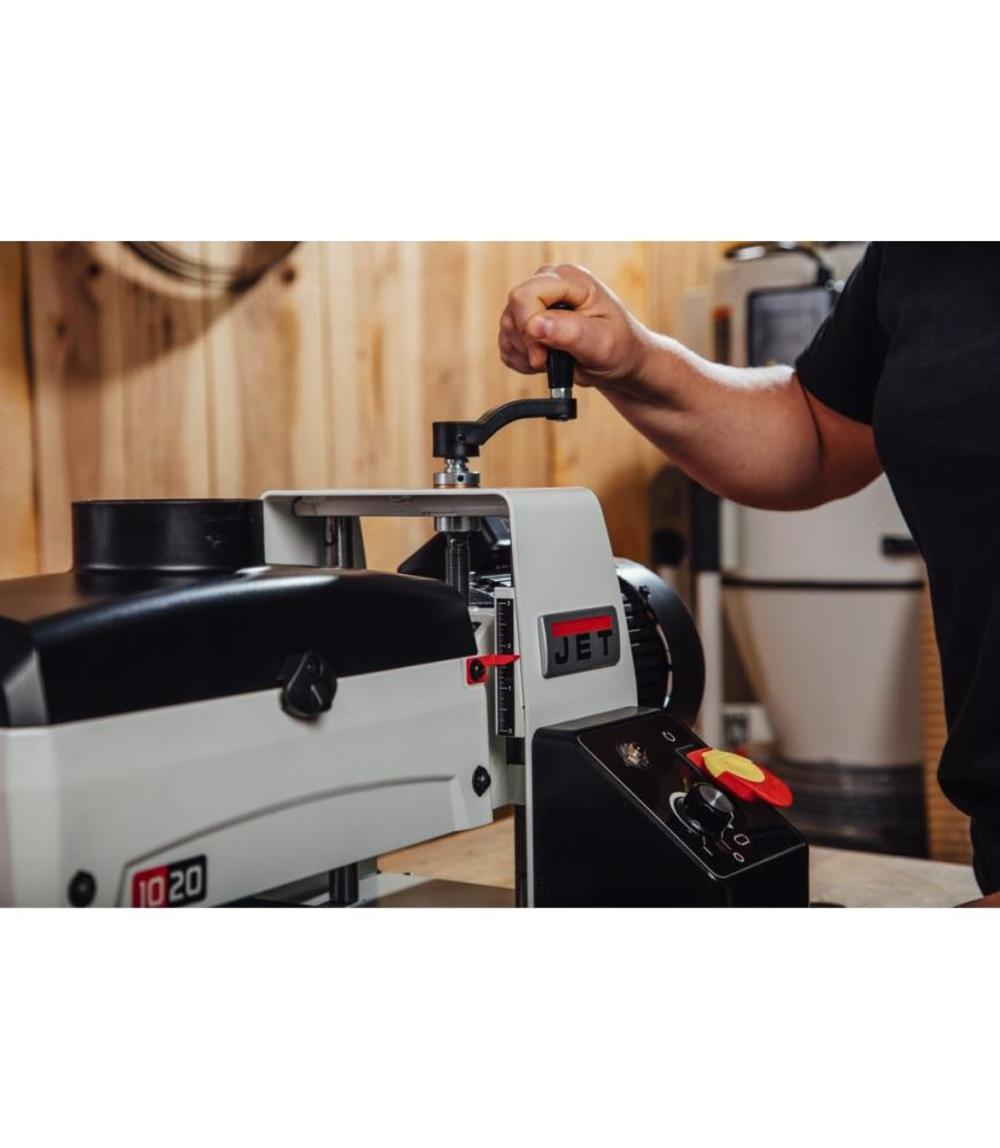

10-20 Benchtop Drum Sander
The compact JWDS-1020 benchtop sander from Jet packs a powerful 1 HP motor that will sand boards up to 3 In. thick and 20 In. wide. The innovative patented dust hood ensures dust is funneled to the 4 In. dust port that easily connects to a dust collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.
Features
Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality
Patented dust hood incorporates an integrated channel that directs dust to a 4-in collection port

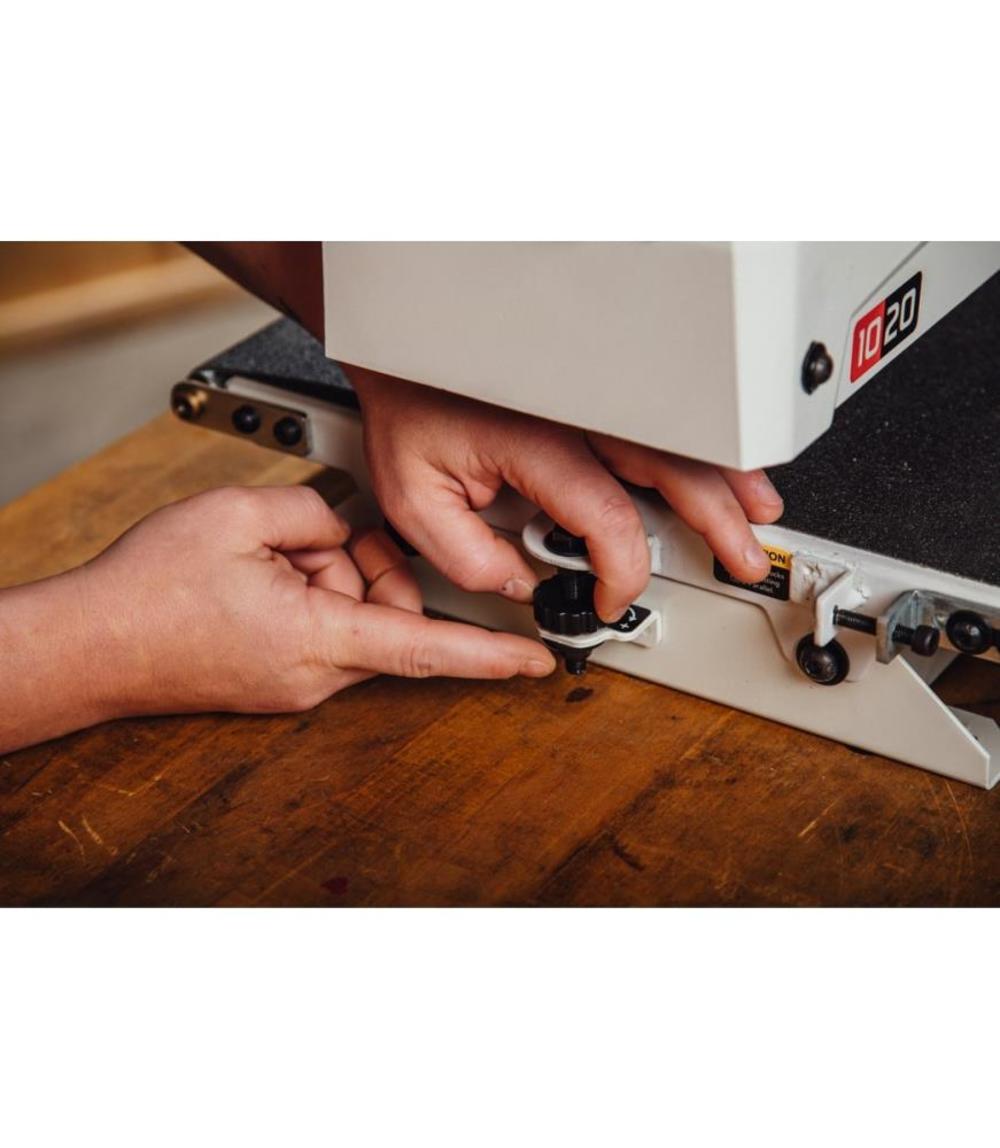

Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Infinitely variable-speed control allows the user to choose the optimal feed rate
Open ended design allows for up to 20-in of sanding capacity with 2 passes
Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
Toolless abrasive take-up fasteners make changing abrasives quick and easy
Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
723510
Amperage (A)
8
Assembled Weight (lbs)
73
Assembly Required
Yes
Bench or Stationary
Bench
California Proposition 65 Warning Required
Yes
Color / Finish
White/Aluminum
Convertible To 220 V
No
Conveyor Maximum Speed (Ft/Min)
10
Conveyor Minimum Speed (Ft/Min)
0
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Drum Diameter (in)
5
Drum Length (in)
10
Drum Material
Extruded Aluminum
Drum Sander Frame Style
Open End
Dust Collection
Yes
Dust Collection Method
4″ Collection Port
Electrical Cord Configuration
SJT 3x16AWG, 300V, 6 ft., 15A plug
ETL Listed
No
Horsepower (hp)
1
Housing Material
aluminum die casting and steel
Internal Supplier Part #
723510
Internet Product Code (IPC)
6D7BD5B795B
Manufacturer Warranty
3 Year
Material
Extruded Aluminum
Maximum Drum Surface Speed (Ft/Min)
1725
Maximum Stock Thickness (in)
3
Maximum Stock Width (Single Pass) (in)
10
Minimum Stock Length (in)
2.375
Minimum Stock Thickness (In)
0.032
Net Tool Weight (lbs)
73
Number of Drums
1
Number of Motors
2
Package Contents
1 Sander with conveyor table
1 Handle
4 Foam pads
1 Operation and Parts manual
1 Product registration card
1 Handle
4 Foam pads
1 Operation and Parts manual
1 Product registration card
Package Depth
17.625
Package Height
24
Package Weight
82
Package Weight (lbs)
82
Sander Style
Drum
Sandpaper Type
80-grit, 3-inch wide abrasive strip
Stand Included
No
UL Listed
No
Variable Speed
Yes
Voltage
115 Volts
