Description
Description

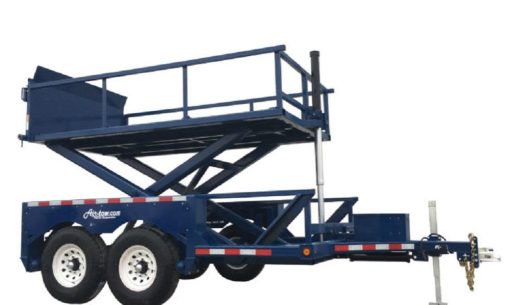

10′ 6″ x 6′ 2″ Drop Deck & Dock Height Trailer – 8,000 lb. Cap

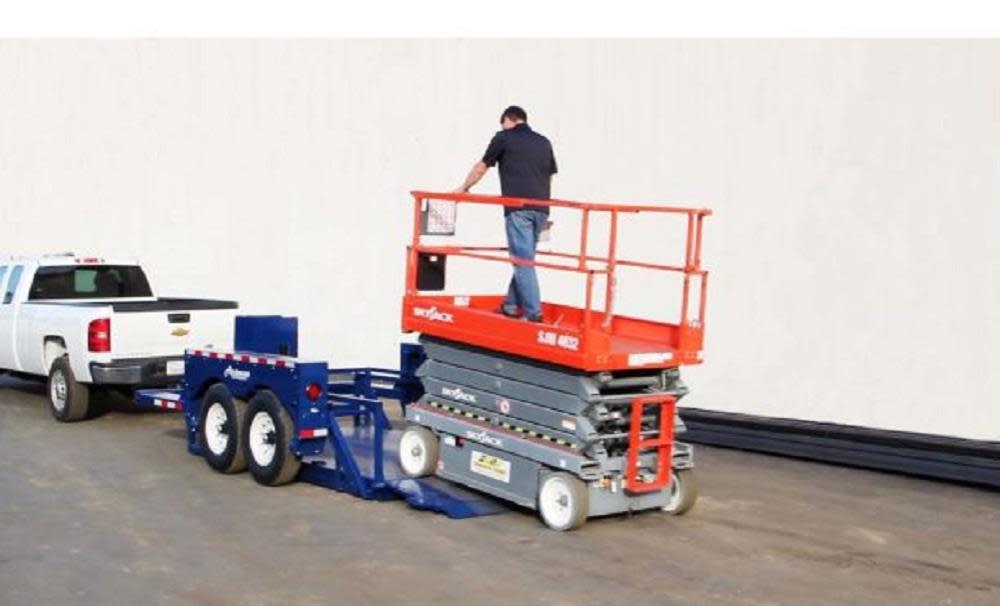

The unique Air-Tow flatbed uses a totally different concept to make loading easier and safer. The trailer deck remains completely level as it raises or lowers hydraulically in less than 30 seconds. At ground level, you simply drive your equipment onto the trailer. It is especially useful for equipment with poor traction or low ground clearance such as scissor lifts, sweepers, pavement rollers, etc. Air-Tow eliminates the need for difficult tilt beds or dangerous loading ramps, making it a one-man job even in adverse weather conditions.
Features

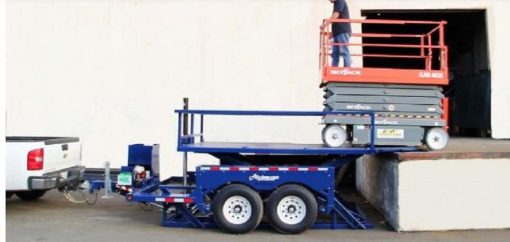

60 In. dock height loading
Diamond plate steel deck
8,000 lbs. load capacity
Electric brakes
Fold-down tailgate ramp
Dual hydraulic lift
Specifications
Acme Tools Brand Name
AIR-TOW TRAILERS
Acme Tools Heavy Equipment
true
Acme Tools Part Number
DH10
Assembled Weight (lbs)
5700
Ball Size
2-5/16″
California Proposition 65 Warning Required
Yes
Color / Finish
Royal Blue
Country of Origin
United States
Floor Material
Diamond Plate Steel Deck
Internal Supplier Part #
DH10
Internet Product Code (IPC)
09211328529
Load Weight Capacity (lbs)
8000
Manufacturer Warranty
One Year Warranty (Three Year Limited Warranty on Suspension Compressors and Air Bags)
Material
Diamond Plate Steel Deck
Overall Height (in)
0
Overall Length (ft)
10.5
Package Weight
5700
Package Weight (lbs)
5700
Tire Size
16 In. Wheels – ST235/85R16
Weight (lbs)
5700
