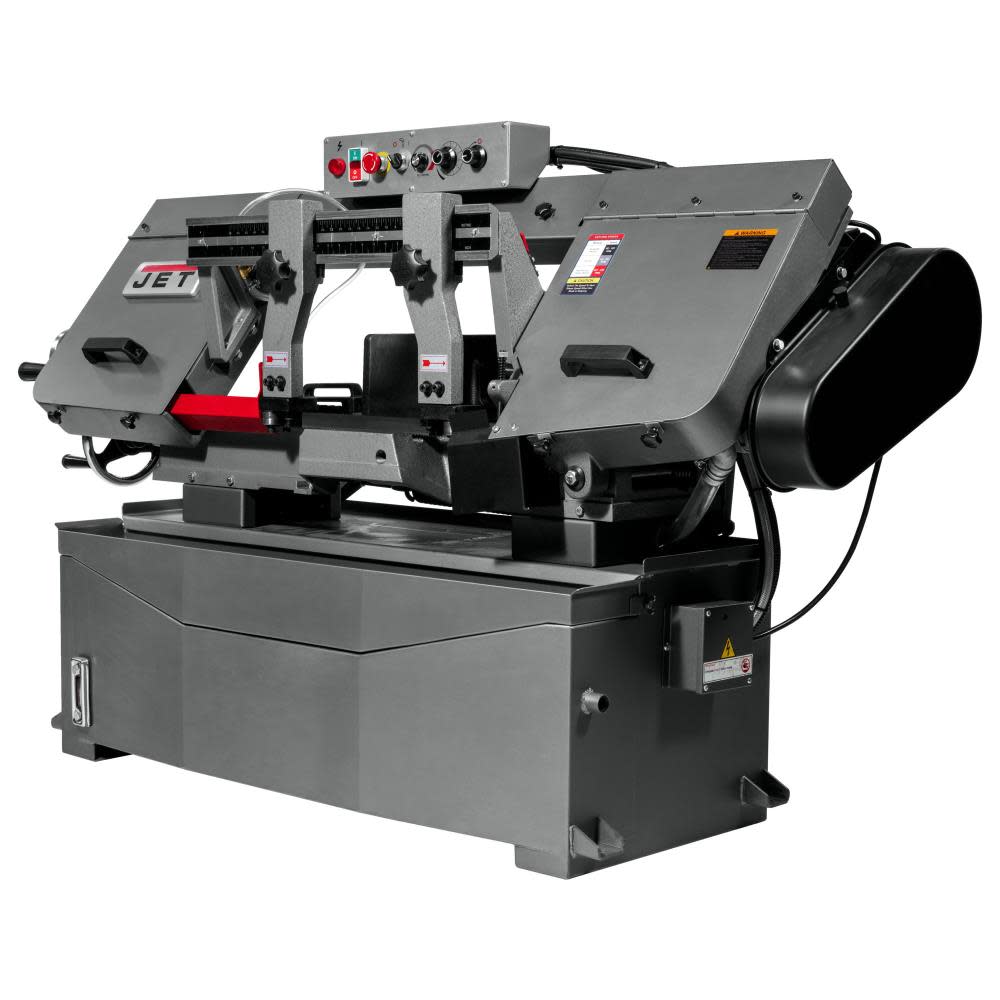

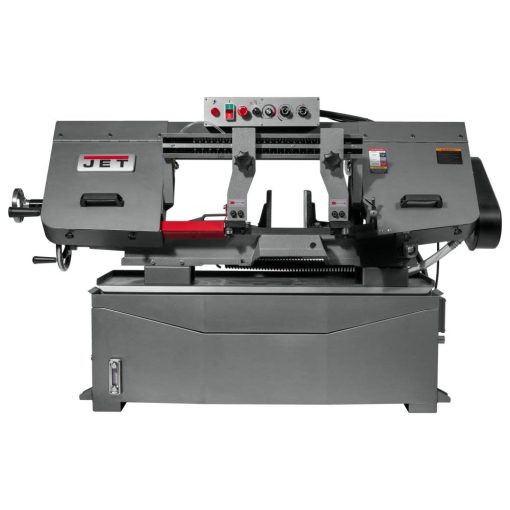

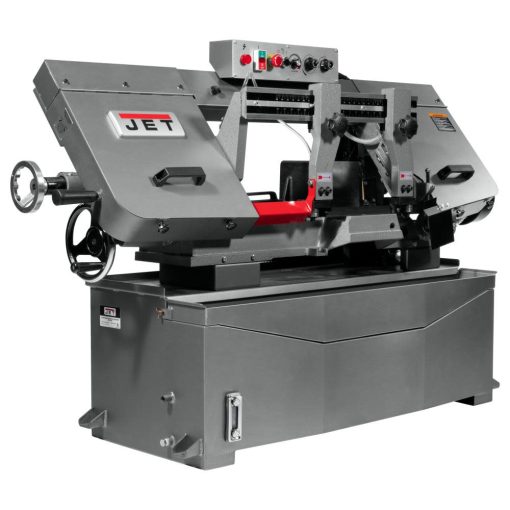

10×18 Electronic Variable Speed Horizontal Bandsaw
Electronic variable speed, oversized removable chip tray, large handwheel, built-in gauge, blade guides and quick-positioning vise are but a few of the features that make this jet horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time.
Features
Electronically controlled blade speed from 82 – 330 SFPM
Proprietary oversized chip tray design minimizes over spray and reduces clean up
Large hand wheel and built-in gauge provides easy blade tensioning
Quick-positioning vise with fully adjustable jaws, swivels to 45°
Blade is fully guarded, regardless of blade guide position
Carbide blade guides feature parallel double-row ball bearing support
Standard coolant system with coolant is distributed through the blade guides
Built-in, self propelled blade brush extends blade life
Fully adjustable hydraulic downfeed with separate on/off control valve
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
424470
Amperage (A)
6.5
Assembled Weight (lbs)
805
Band Saw Frame Material
Steel
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Steel
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Cutting Capacity Height (in)
18
Dust Port
No
ETL Listed
No
Horsepower (hp)
2
Internal Supplier Part #
424470
Internet Product Code (IPC)
CCE7E396C59
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Blade Length (In)
130
Maximum Blade Width (In)
1
Maximum Feet Per Minute
330
Maximum RPM
1720
Minimum Blade Width (in)
.125
Minimum Feet Per Minute
82
Number of Wheels
2
Package Depth
71
Package Height
48
Package Weight
874
Package Weight (lbs)
874
Saw Wheel Material
Cast Iron
Speeds
330
Stand Included
Yes
Table Length (in)
10
Table Material
Cast Iron
Table Width (in)
18
UL Listed
No
Variable Speed
Yes
Voltage
230 Volts
