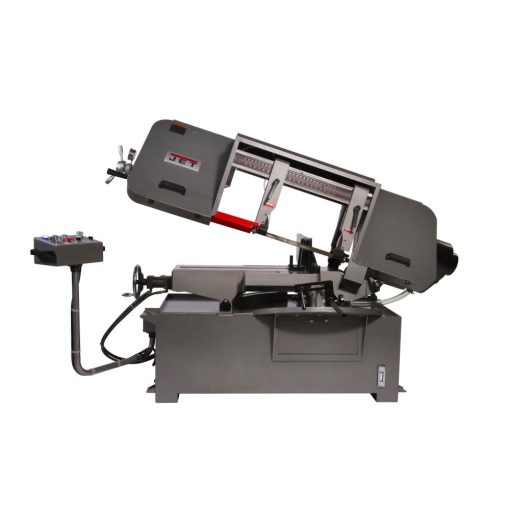

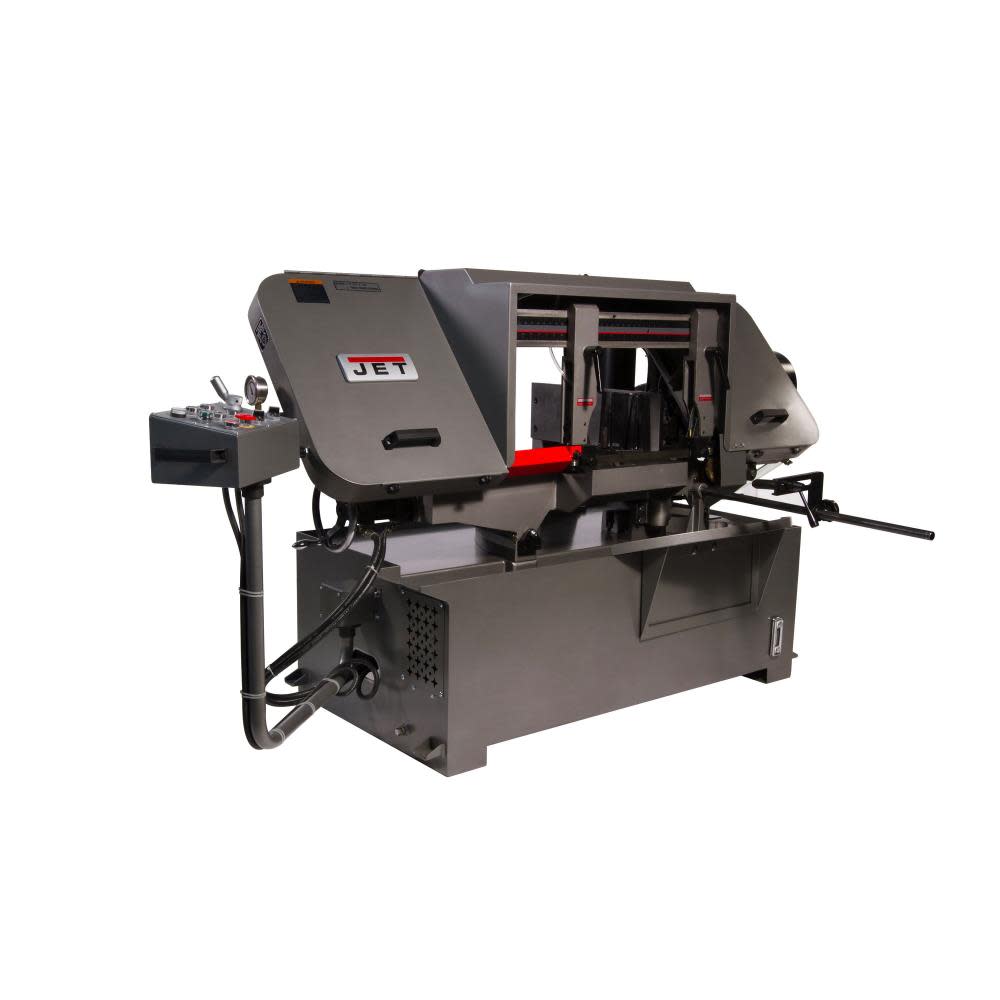

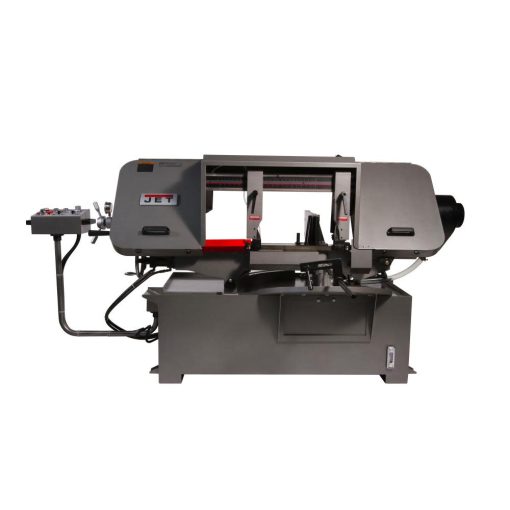

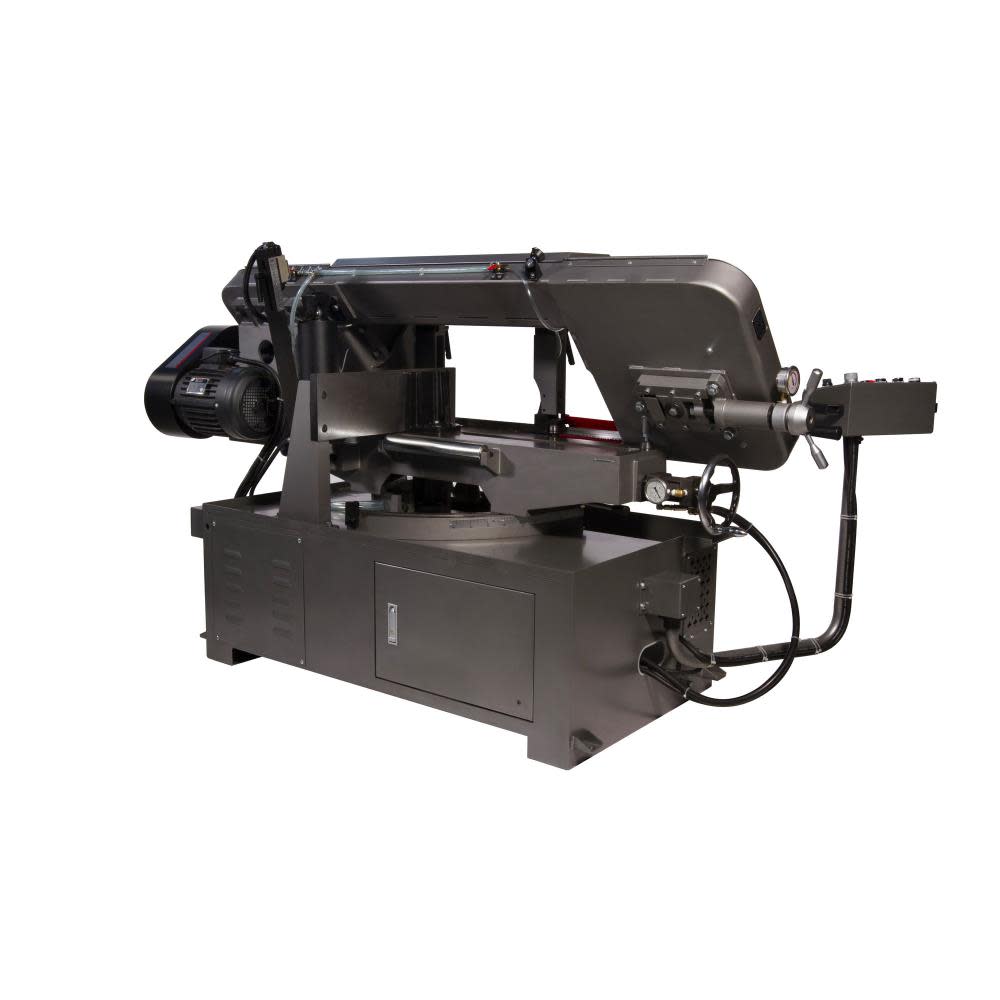

12″ X 20″ SEMI-ATMTC MTRNG BNDSW
This Jet large capacity, semi-automatic horizontal band saw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45° angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of material while the hydraulic vise makes set up easier for the operator.
Features
Heavy duty construction reduces vibration and deflection
CSA/US: following strict guidelines and electrical requirements, this Jet saw is CSA/US certified
Automatic blade breakage sensor detects accidental breakage and interrupts the power
Blade is fully guarded for operator safety
Auto shut off at the end of the cut
Mitering head – the workpiece remains fixed while the head swivels to cut any angle 0° to 45°
Semi-automatic bow raises after cut to predetermined height
Blade tensioning meter
Built-in self propelled blade brush prevents chip build up in blade guides
Variable speed drive train allows the operator to fine tune the blade speed quickly & easily
Auxiliary roller support on back of vise
One piece blade cover makes changing blades extremely easy
Circulating coolant system through both blade guides

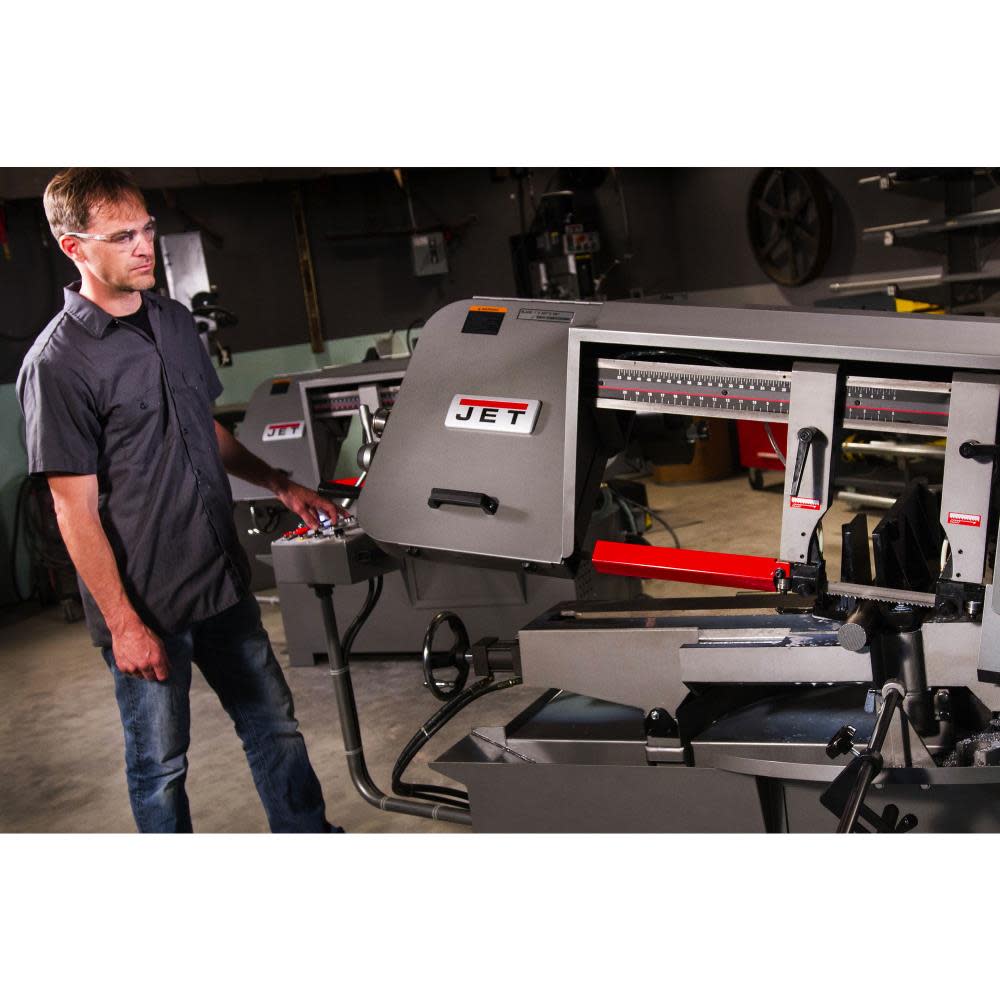

Swing away control arm puts the controls at the operator fingertips
Hydraulic vise makes set up easier for the operator
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
424475
Amperage (A)
15
Assembled Weight (lbs)
1450.0
Band Saw Type
Bench
California Proposition 65 Warning Required
Yes
Color / Finish
steel
Cordless / Corded
Corded
Country of Origin
Taiwan
Dust Port
No
ETL Listed
Pending
Horsepower (hp)
3
Internet Product Code (IPC)
CF211942B9A
Manufacturer Warranty
2 year warranty
Material
Steel
Maximum Blade Length (In)
156
Maximum Blade Width (In)
27
Maximum RPM
370
Minimum Blade Width (in)
27
Package Depth
87.7
Package Height
53
Package Weight
1625
Package Weight (lbs)
1625
Speeds
2
Table Length (in)
20
Table Material
Steel
Table Width (in)
20
UL Listed
Pending
Variable Speed
Yes
Voltage
230 Volts
