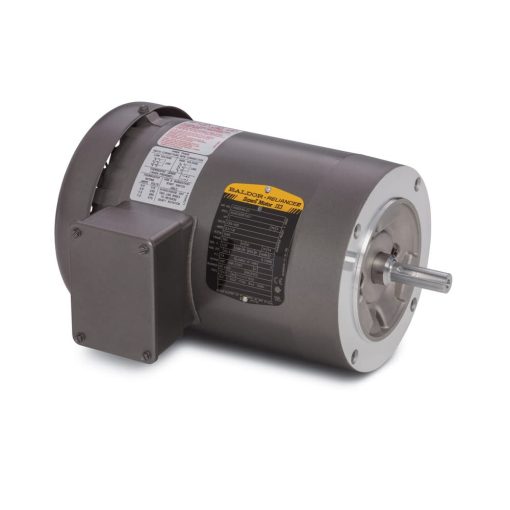

1HP 1760RPM 3PH 60HZ 56C TEFC Electric Motor
Baldor’s extensive line of General Purpose three phase motors are available in totally enclosed cast iron and industrial steel band for harsh applications. Designed for “general purpose” use means that these motors can be used in many applications. The Super E Motors (EM & CEM) provide NEMA Premium efficiency and are designed as standard to be inverter ready with wide variable torque speed ranges.
Features
Suitable for mounting in any position
Ball bearings
Heavy-gauge steel or cast-iron frames, and gasketed conduit boxes
To protect your critical asset from shaft induced
currents that can be harmful to the motor, we offer
an off-the-shelf solution.
Motors with TR suffix have roller bearings for heavy belted loads
Specifications
Acme Tools Brand Name
BALDOR-RELIANCE
Acme Tools Part Number
VEM3546
Assembled Weight (lbs)
36
California Proposition 65 Warning Required
Yes
Color
Gray
Country of Origin
United States
Horsepower (hp)
1.000
Input Frequency (Hz)
60.00
Input Voltage
230V/460V
Motor Enclosure
Totally Enclosed, Fan Cooled (TEFC)
NEMA Frame Size
56
Package Contents
Baldor 1HP 1760RPM 3PH 60HZ 56C TEFC Electric Motor
Package Depth
24
Package Height
24
Package Weight
37
Package Weight (lbs)
37
RPM
1,8000
Service Factor
1.15
Shaft Diameter (in)
.625
Shaft Rotation
Bidirectional
UL Listed
No
Voltage
230/460
