Description
Description

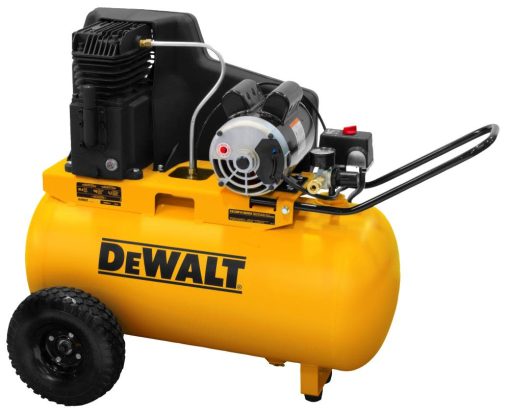

20-Gallon Portable 155-PSI Electric Horizontal Air Compressor

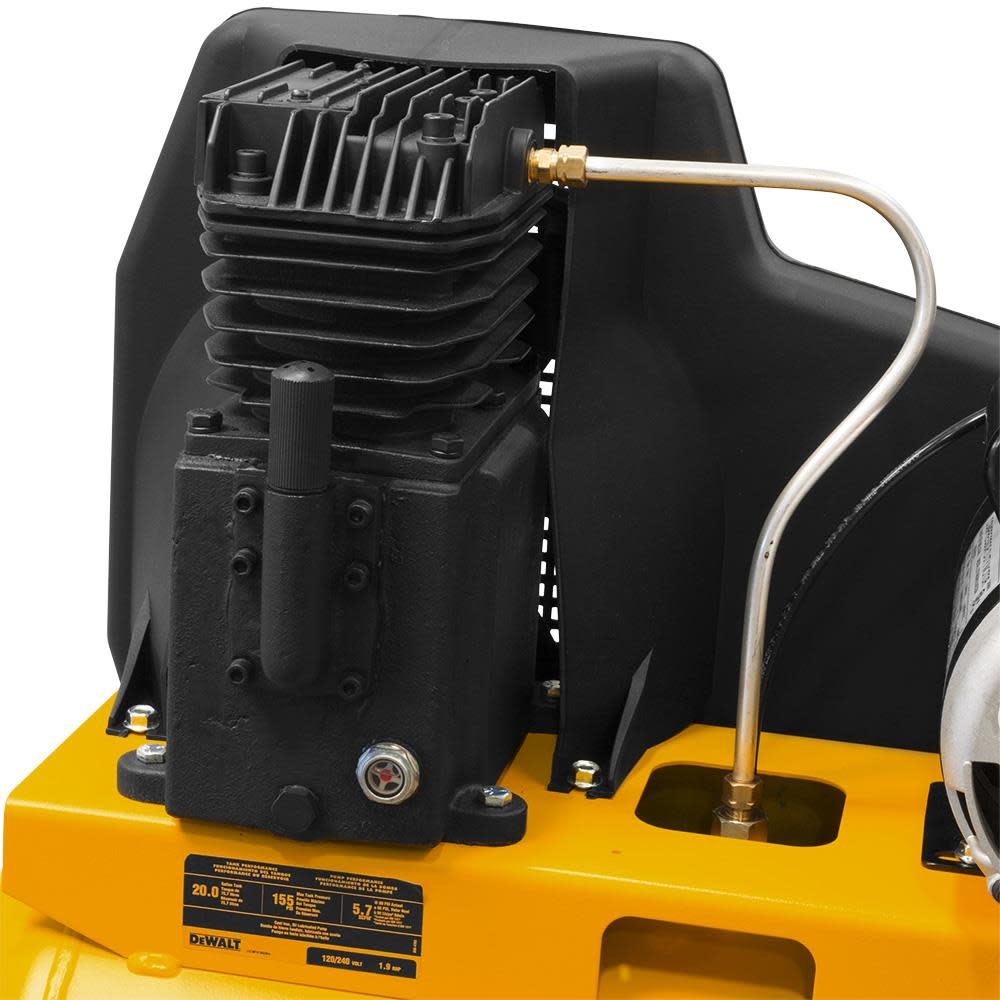

The Dewalt 20 Gallon horizontal portable air compressor features a cast iron, twin-cylinder, oil-lubricated pump. This includes a 1-piece cast iron crankcase, thermally stable cast iron cylinder body, aluminum head and valve plate, automotive style ball bearings, durable Swedish stainless steel reed valves, oil level sight glass, easily accessible oil fill and a 12 in. cast iron balanced flywheel. The compressor has a heavy-duty induction motor for maximum performance and efficiency with 1.9 RHP. This dual voltage motor is wired for a standard 120 Volt outlet and can also be converted for 240 Volt applications.
Features
DEWALT 20-gal, 155-PSI vertical portable electric air compressor for various projects in the workshop and jobsite

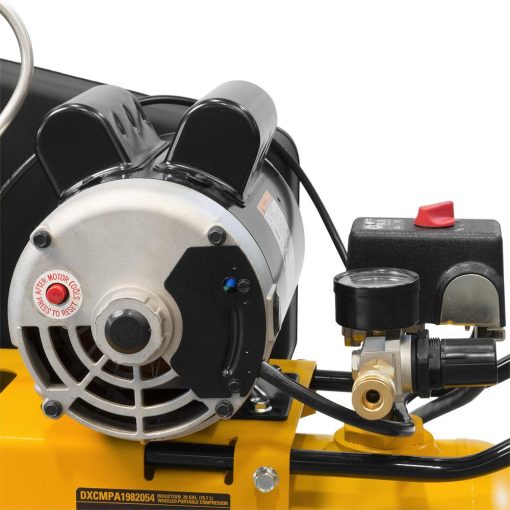

120-volt, 1.9-HP heavy-duty induction motor with belt drive oil lube design for long life and quiet performance

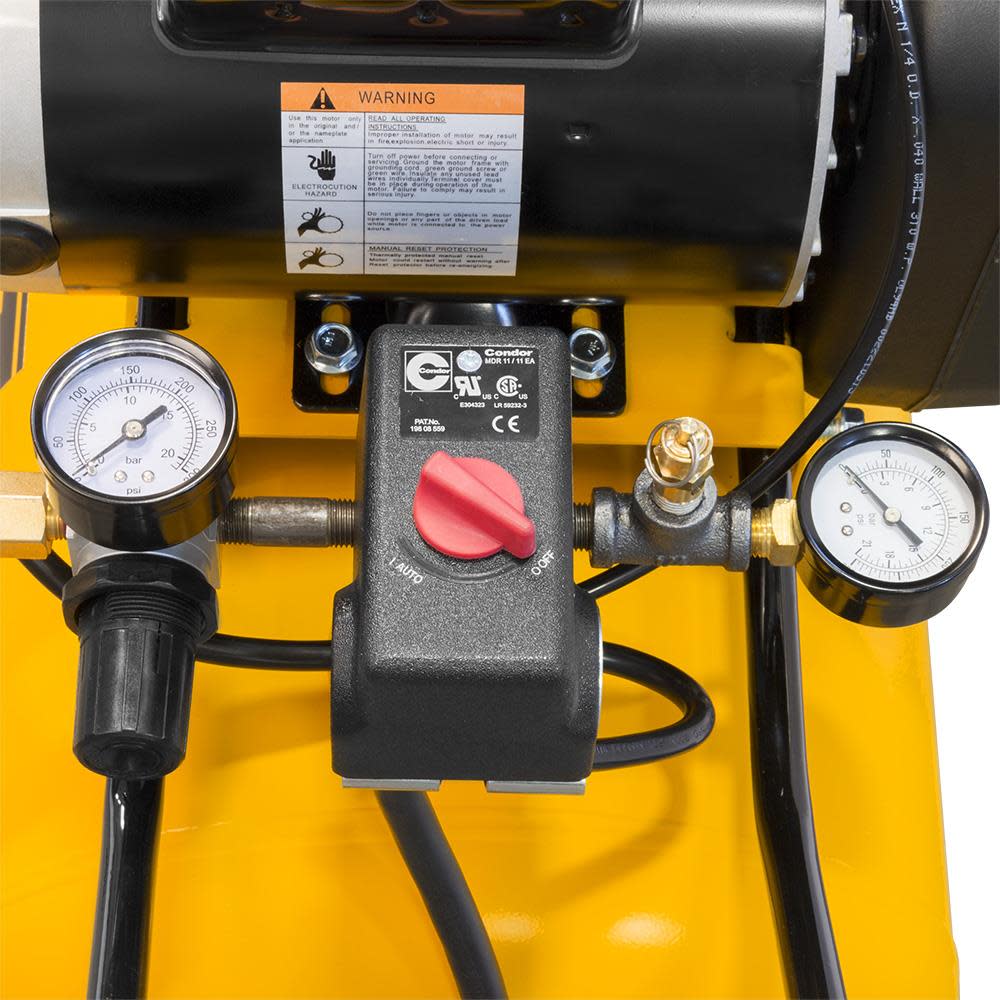

High flow regulator provides more air to the tool when need for tough jobs, like loosening a rusted nut
Quick-set feature on the regulator enables you to set the gauge to the precise pressure needed to prevent damage to the tool

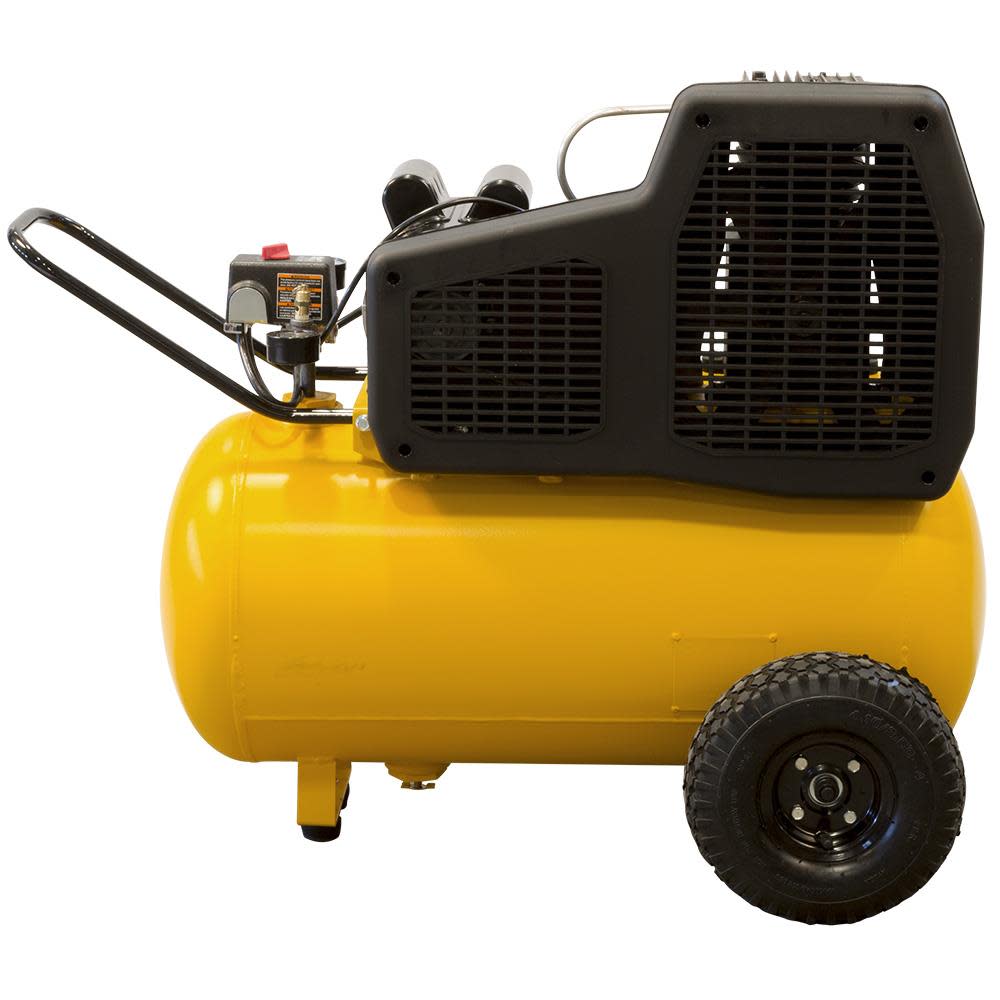

Horizontal tank design is perfect for storing either under a workbench or putting on the back of a pickup
10 inch pneumatic wheels mean easy portability around the workshop or jobsite
2-year limited warranty gives you peace of mind
Plugs into a 120-volt home outlet but can be converted to 230/240-volt if desired
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DXCMPA1982054
Air Compressor Pump Design
Oil Lubricated
Air Delivery (scfm) @ 40PSI
7.0
Air Delivery (scfm) @ 90PSI
5.7
Amperage (A)
15
Assembled Weight (lbs)
166
California Proposition 65 Warning Required
Yes
Color / Finish
DEWALT Yellow
Compressor Design
Wheelbarrow/Wheeled
Cordless / Corded
Corded
Country of Origin
United States
CSA Certified
Yes
ETL Listed
No
Height (in)
34.5
Horsepower (hp)
1.9
Internal Supplier Part #
DXCMPA1982054
Internet Product Code (IPC)
FA463DD8656
Length (in)
34.25
Manufacturer Warranty
2 Year Limited Warranty on oil lubricated pumps. 1 Year Limited Warranty on all other components.
Maximum Pressure Rating (psi)
155
Motor Type
Induction
Operating Position
Horizontal
Package Depth
22.75
Package Height
34.5
Package Weight
212
Package Weight (lbs)
166
Tank Capacity (gal)
20
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Portable
UL Listed
No
Voltage
120
Voltage Rating
120
Weight (lbs)
166
Wheeled
Yes
Width (in)
22.75
