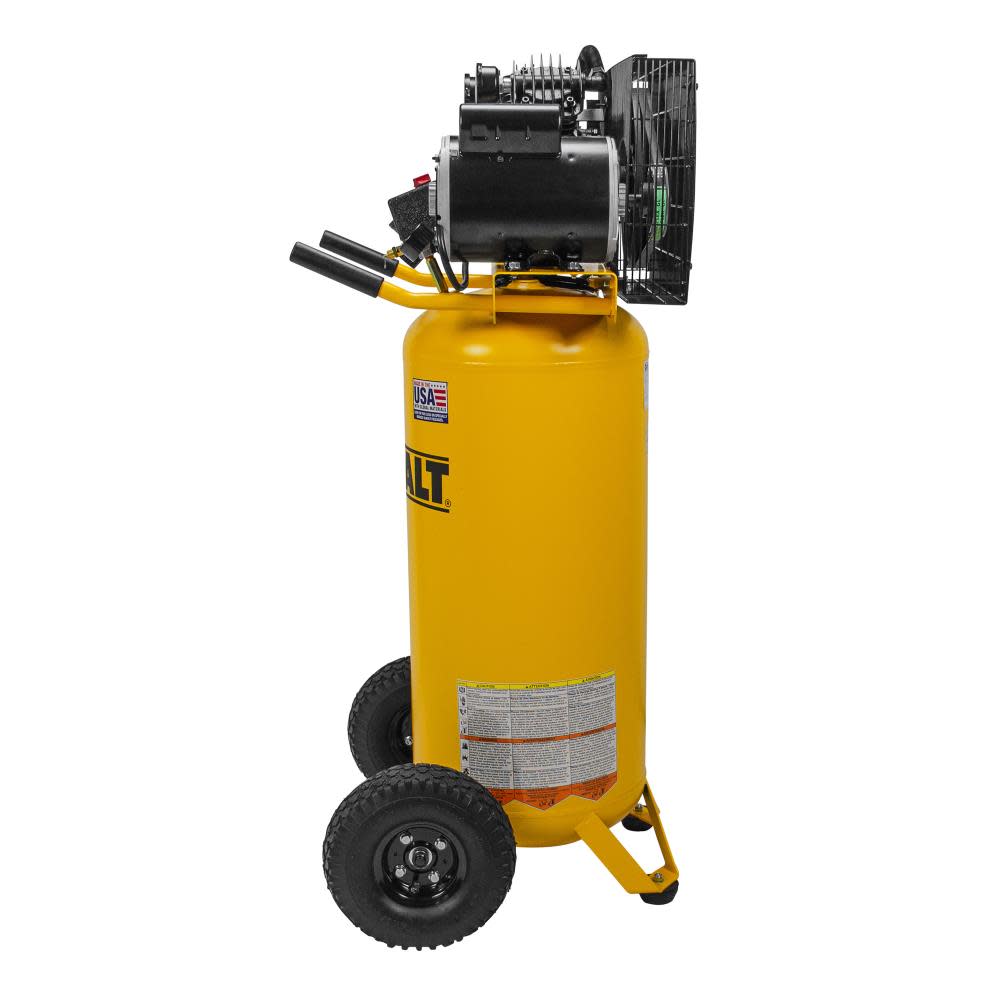

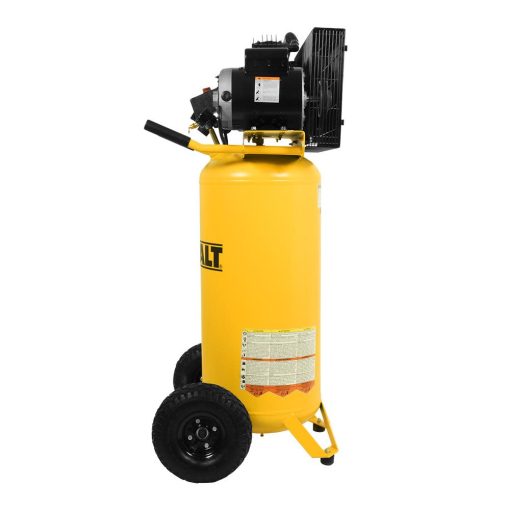

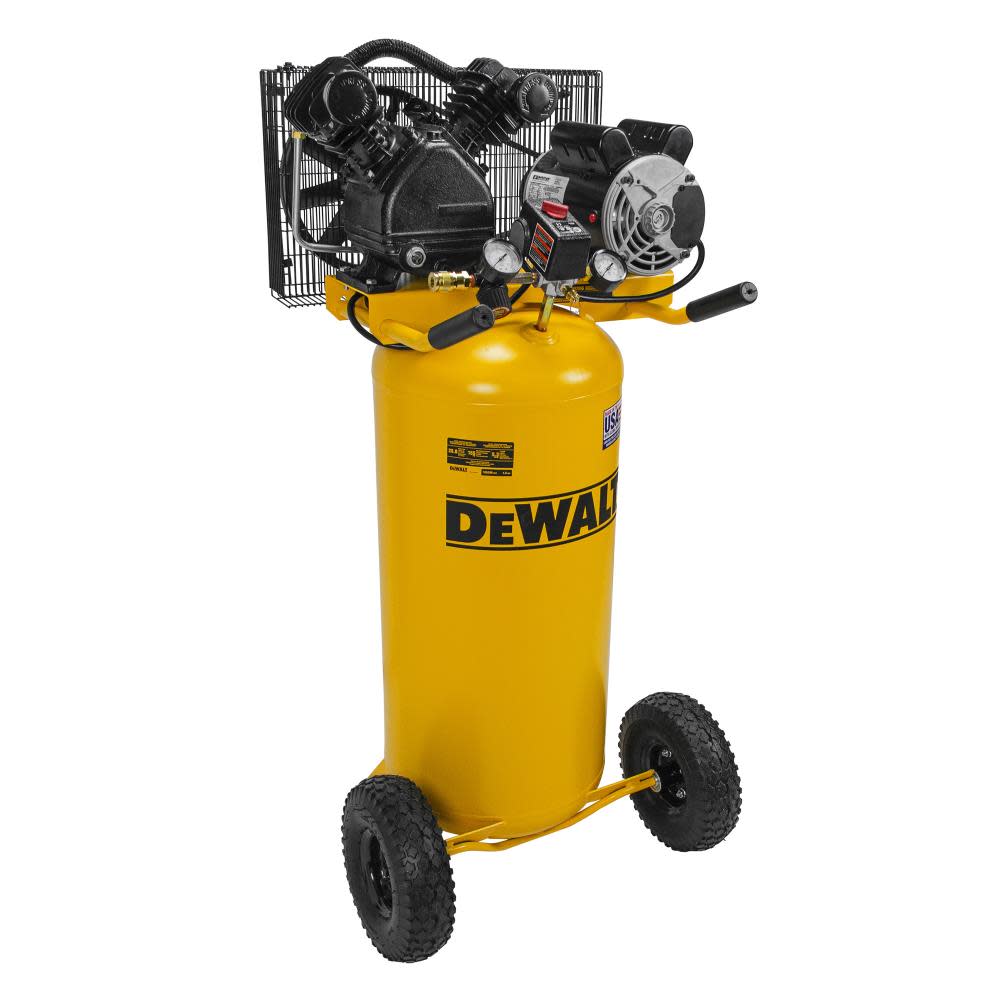

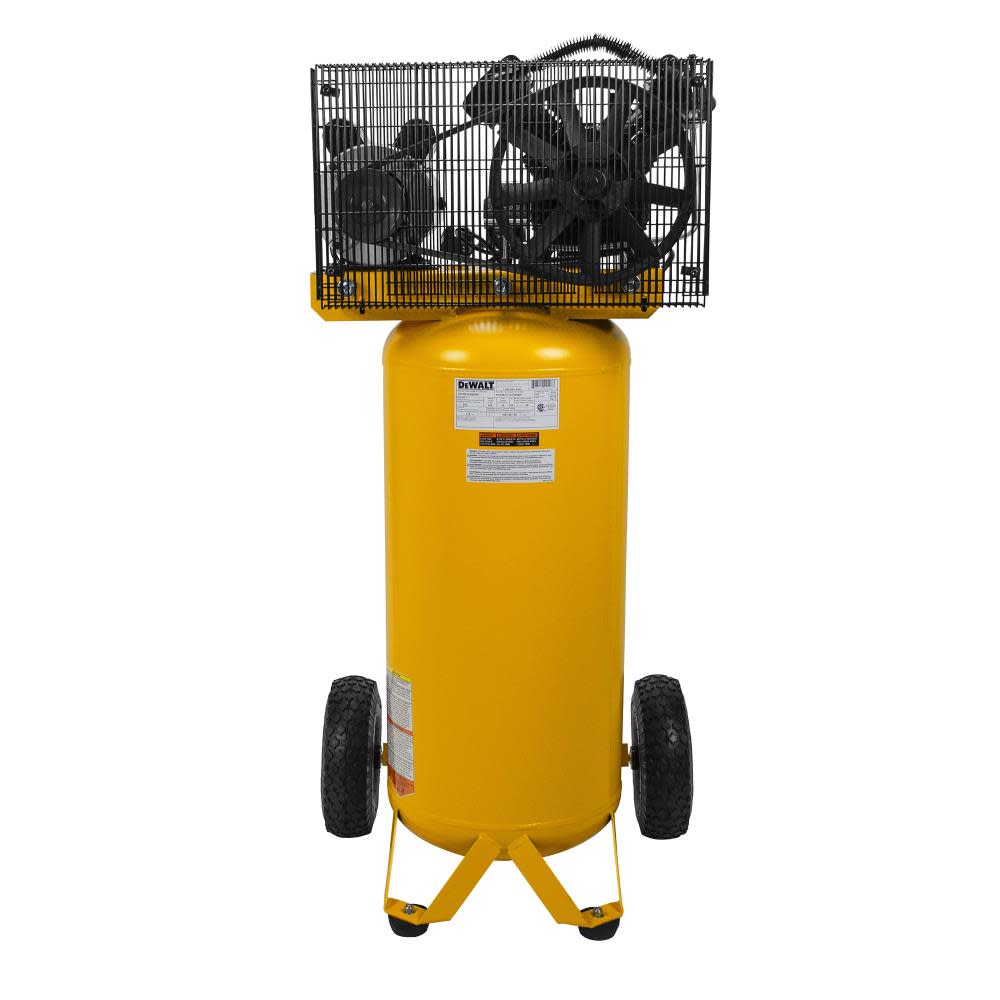

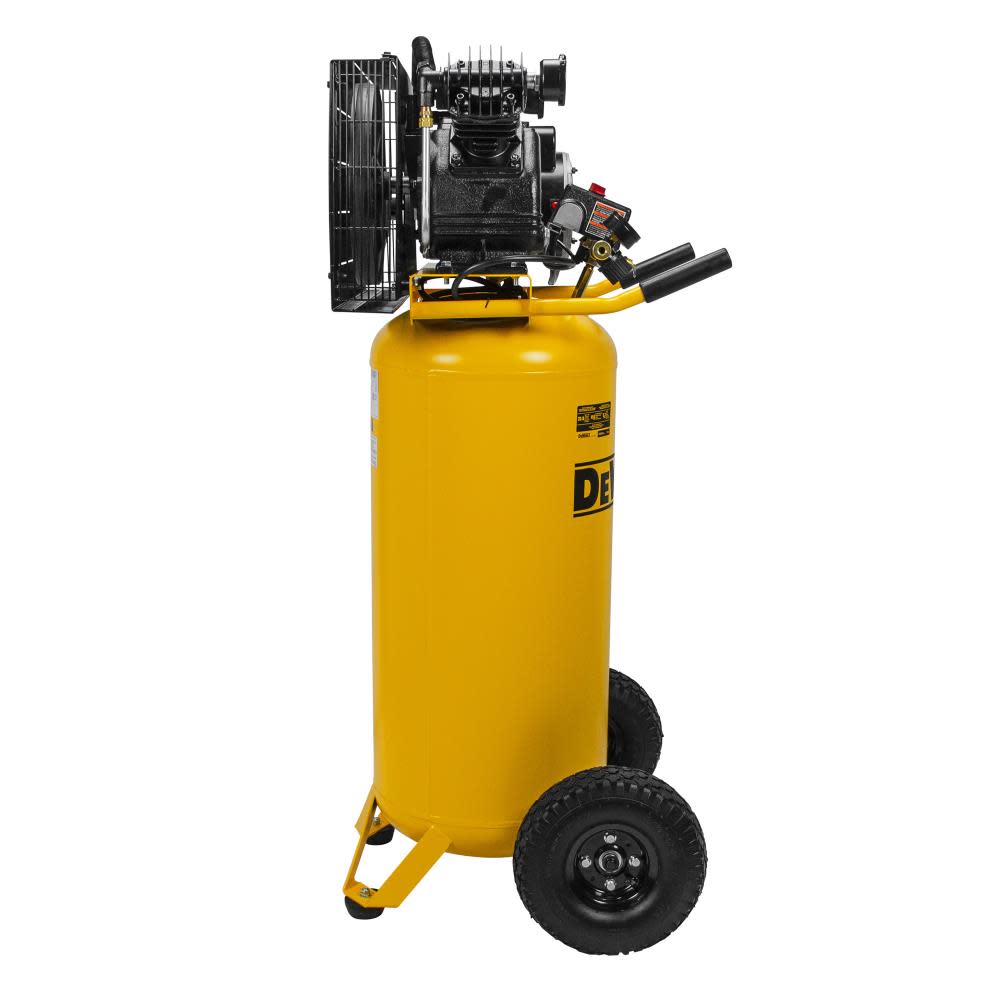

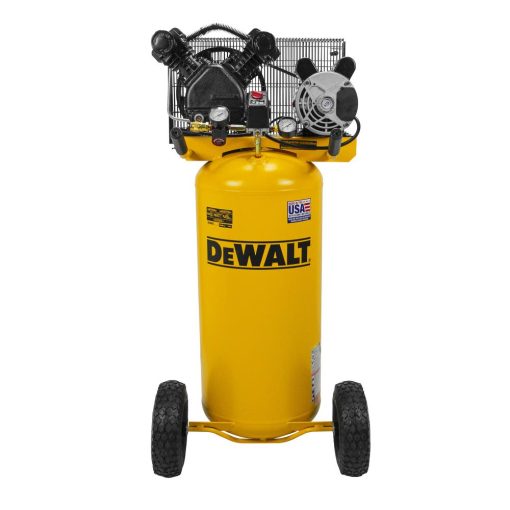

20-Gallon Portable 155-PSI Electric Vertical Air Compressor

$120.33

999 in stock

SKU: 846212024287 Category:

Description

Description

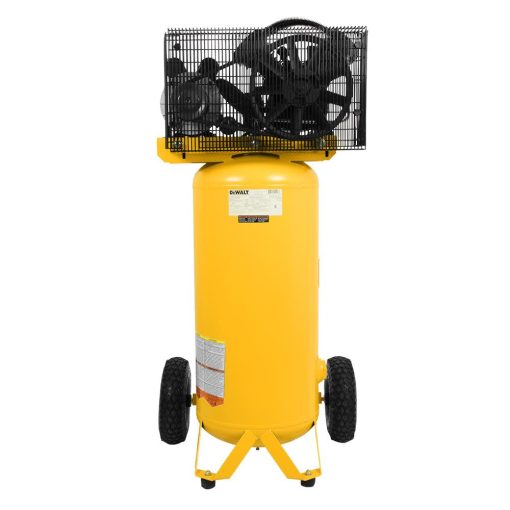

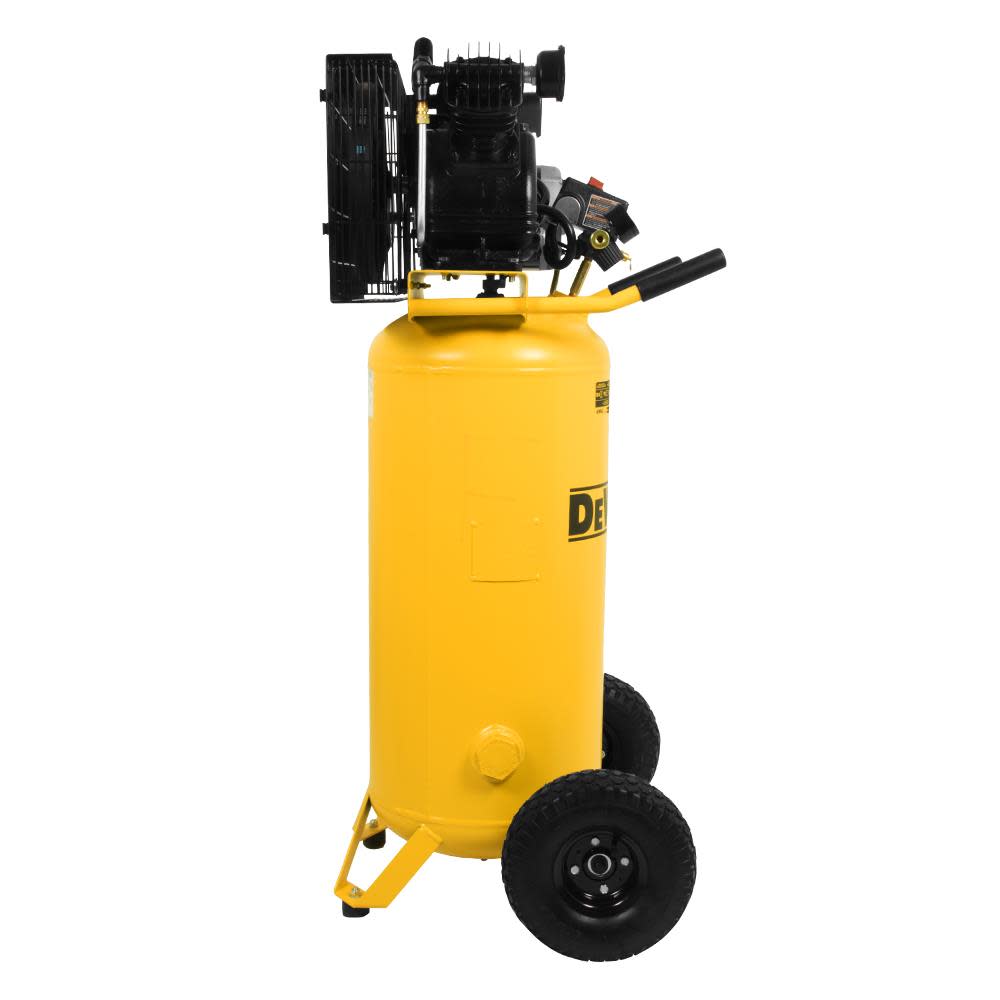

20-Gallon Portable 155-PSI Electric Vertical Air Compressor

The Dewalt 1.6 HP 20 Gallon single stage oil-lube vertical portable air compressor is jobsite tough and built for the professional. It features automotive style ball bearings, durable stainless steel reed valves, oil level sight glass, easily accessible oil fill and a cast iron balanced flywheel for easy maintenance, durability and convenience. This single-stage, oil lubricated compressor offers a twin-v cast iron pump with one piece cast iron crank case and thermally stable cast iron cylinder body. It has a heavy-duty 1.6 HP, 120/240 V induction motor, as well as a full-size metal belt guard for added motor protection and durability. For portability, you can wheel it wherever it is needed.



View Warning Label

Features


Cast iron V-twin cylinder pump, heavy duty induction motor, 20 Gallon ASME tank, pneumatic wheels, dual voltage motor wired for 120 Volt outlet, can be converted to 240 Volt application, quick set regulator, pressure gauge, and an on/off switch.

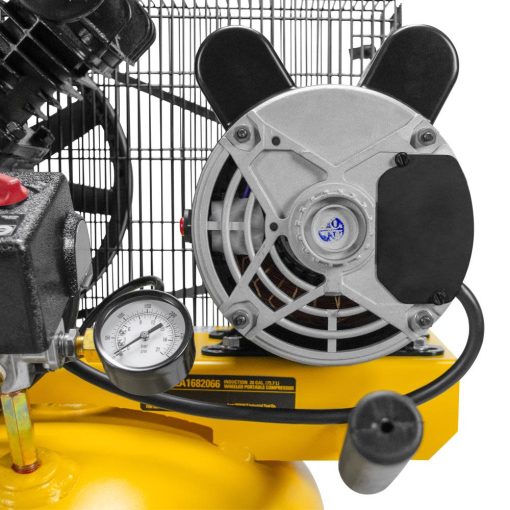

Heavy duty induction motor for maximum performance and efficiency

155 PSI max pressure for optimum tool performance

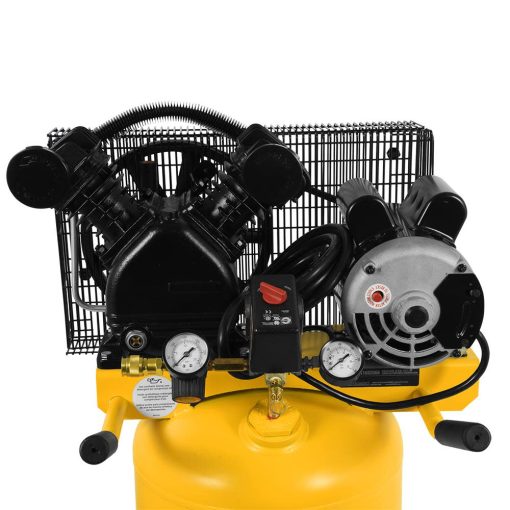

This compressor comes with a cast iron V-twin pump, this provides quiet operation, superior performance and long life


Comes with a quick set regulator. Set the regulator for the exact pressure you need. Also provides consistent pressure without the worry of knob drifting as you work.

Equipped with quick set regulator, tank and tool pressure gauges, quick connect air outlet and on/off switch

Specifications

Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DXCMLA1682066
Air Compressor Pump Design
Oil Lubricated
Air Delivery (scfm) @ 40PSI
6.2
Air Delivery (scfm) @ 90PSI
5.3
Amperage (A)
15
Assembled Weight (lbs)
159
California Proposition 65 Warning Required
Yes
Color / Finish
DEWALT Yellow
Compressor Design
Vertical
Cordless / Corded
Corded
Country of Origin
United States
CSA Certified
Yes
ETL Listed
No
Height (in)
49
Horsepower (hp)
1.6
Internal Supplier Part #
DXCMLA1682066
Internet Product Code (IPC)
85EFEC3CDF6
Length (in)
25
Manufacturer Warranty
2 Year Limited Warranty on oil lubricated pumps. 1 Year Limited Warranty on all other components.
Maximum Pressure Rating (psi)
155
Motor Type
Induction
Operating Position
Vertical
Package Depth
25.0
Package Height
49.0
Package Weight
159.0
Package Weight (lbs)
159
Tank Capacity (gal)
20
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Portable
UL Listed
No
Voltage
120
Voltage Rating
120
Weight (lbs)
159
Wheeled
Yes
Width (in)
24.5
