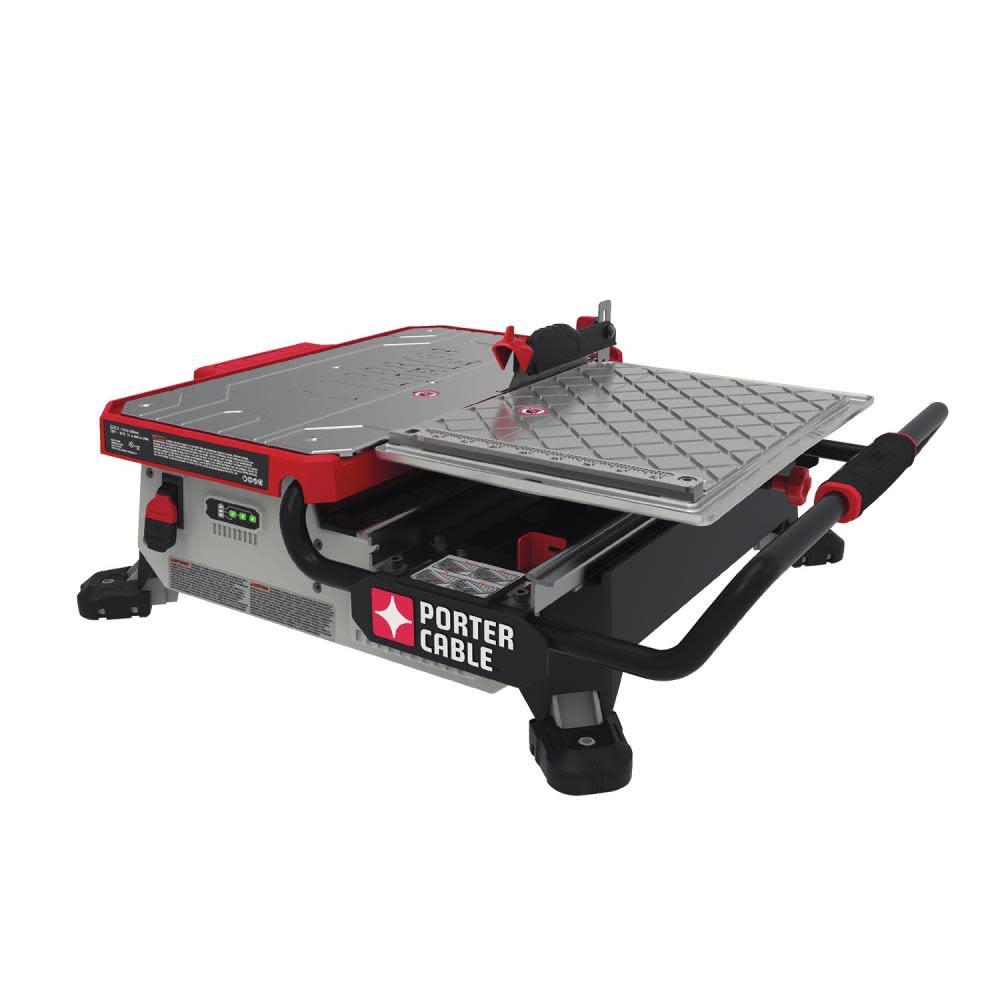

20V MAX 7-in Sliding Wet Tile Saw
The 20 V MAX 7-in table top wet tile saw brings cordless convenience and class-leading performance to professional tile setters, remodeler, and any dyer. It’s a compact, lightweight tile saw with professional cutting capacity and accuracy. With Porter Cable 20 V MAX battery power, it can complete up to 150 cuts of 3-in by 6-in ceramic subway tile per charge (with a 4.0 Ah battery). A cast-metal cutting cart gives the user best-in-class on-table cutting capacity, supporting up to 17-in of tile and accuracy to within 1/16-in over a 12-in cut.
Features

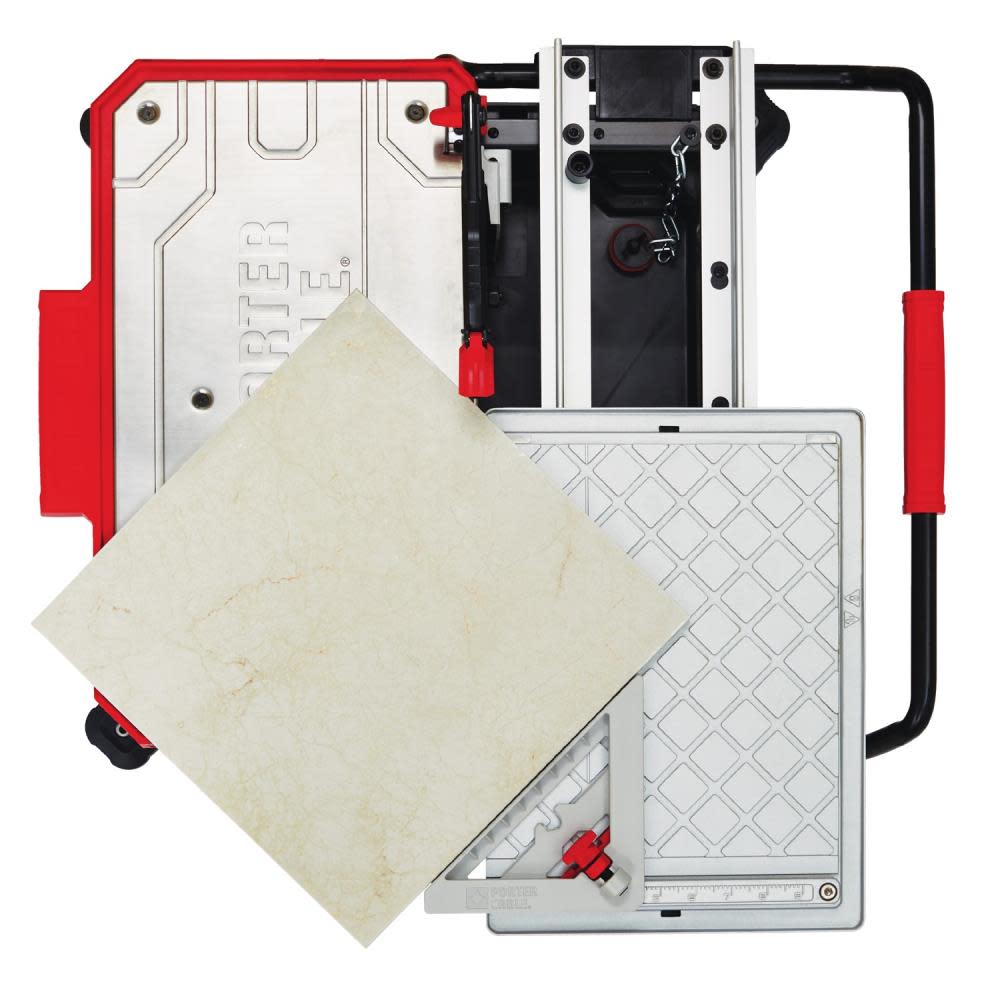

Sliding table delivers 17-in of best-in-class on-table cutting capacity, allowing users to cut 12-in by 12-in tile from corner to corner
Cordless 20V MAX battery power lets users set up this saw directly in the work space and offers the ability to move around the jobsite cord free
Sliding table consistently delivers cuts to within 1/16-in over 12-in cut for excellent finish to tile
Splash guard and water channeling deliver professional level water containment, allowing users to set up the saw in the space they set tile and still keep work space cleaner than most other saws
Roll cage for easy carrying and protection of the cutting cart

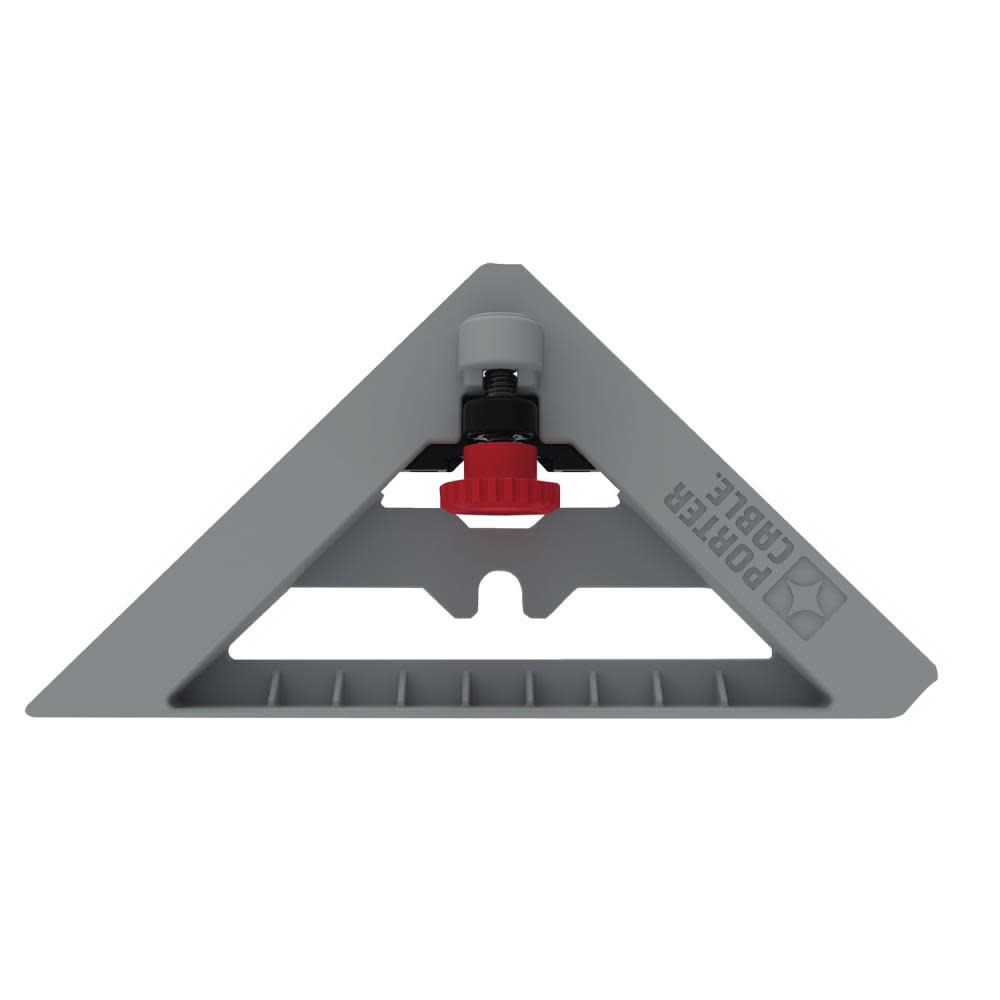

Onboard miter square to help line up miter cuts and repeatable rip cuts
Battery charge indicator shows the user the remaining battery life per charge
Simply remove the drain plug over a bucket to quickly drain water without a mess

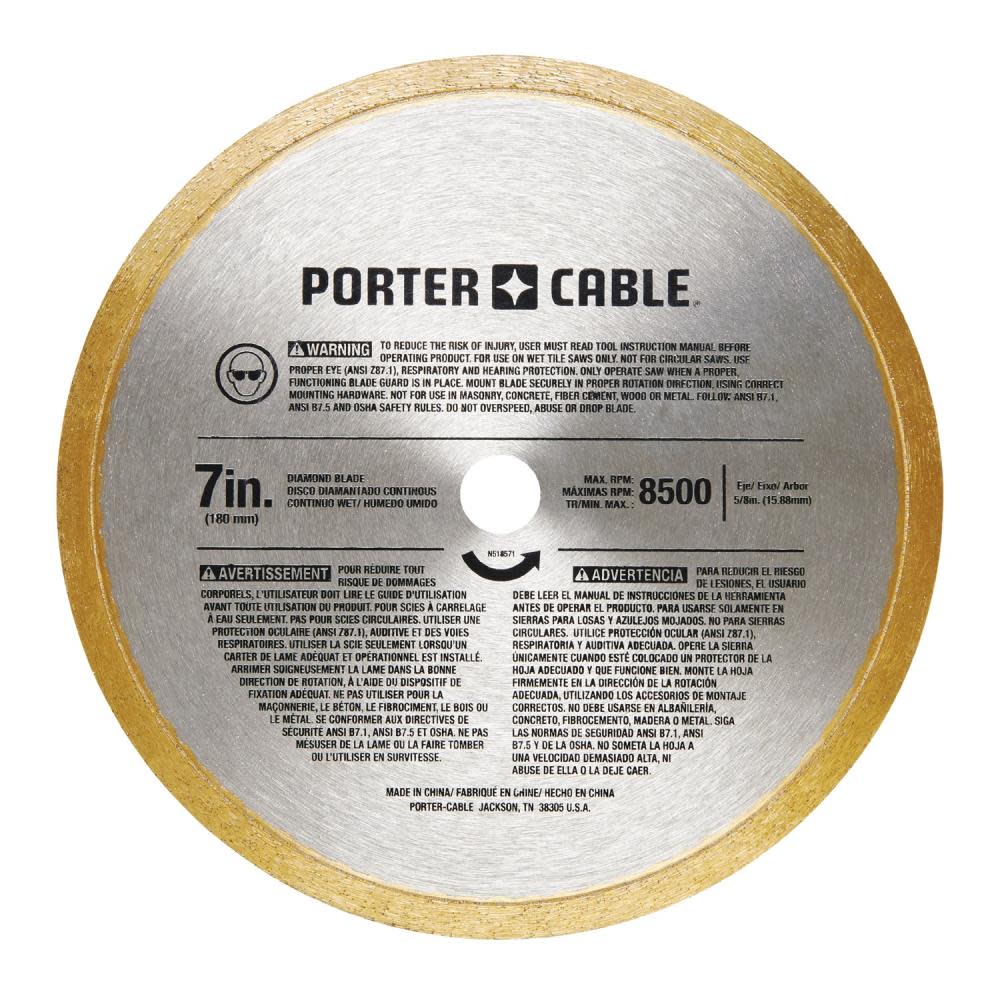

Includes (1) PCC780 20 V MAX 7-in wet tile saw, (1) PCC685L 20 V MAX 4.0 Ah battery, (1) PCC699L charger, (1) 7-in porcelain tile blade, (1) miter square, (1) blade wrench
Specifications
Acme Tools Brand Name
PORTER CABLE
Acme Tools Part Number
PCC780LA
Amperage (A)
0
Arbor Size (in)
0.625
Assembled Weight (lbs)
27
Battery Voltage (V)
20
Beveling Capability
No
Blade Diameter (in)
7
California Proposition 65 Warning Required
Yes
Color / Finish
Red/Black/Grey
Cord Length (ft)
0
Cordless / Corded
Cordless
Country of Origin
China
CSA Certified
No
Depth (in)
21
Diameter
7 in
Electric Motor Brake
No
ETL Listed
No
Height (in)
8
Horsepower (hp)
Universal Motor
Integrated Laser Guide
No
Internal Supplier Part #
PCC780LA
Internet Product Code (IPC)
89A9E42AD06
Manufacturer Warranty
3 year limited warranty/1 year free service contract/90 day money back guarantee
Maximum RPM
2800
Maximum Tile Cut Size Diagonal
12
Maximum Tile Cut Size Rip
17
Package Contents
PCC780 20V MAX* 7 in. Wet Tile Saw; PCC685L 20V MAX* 4.0Ah Battery; PCC699L Charger; 7 in. Porcelain Tile Blade; Miter Square; Blade Wrench
Package Weight
34.63
Package Weight (lbs)
34.63
Reservoir Capacity (gal)
0.57
Reservoir Material
Plastic
Size
0.625 in
Sliding
Yes
Stand Included
No
UL Listed
Yes
Voltage
20
Voltage (V)
20
Water Pump
No
Weight (lbs)
27
Width (in)
21
