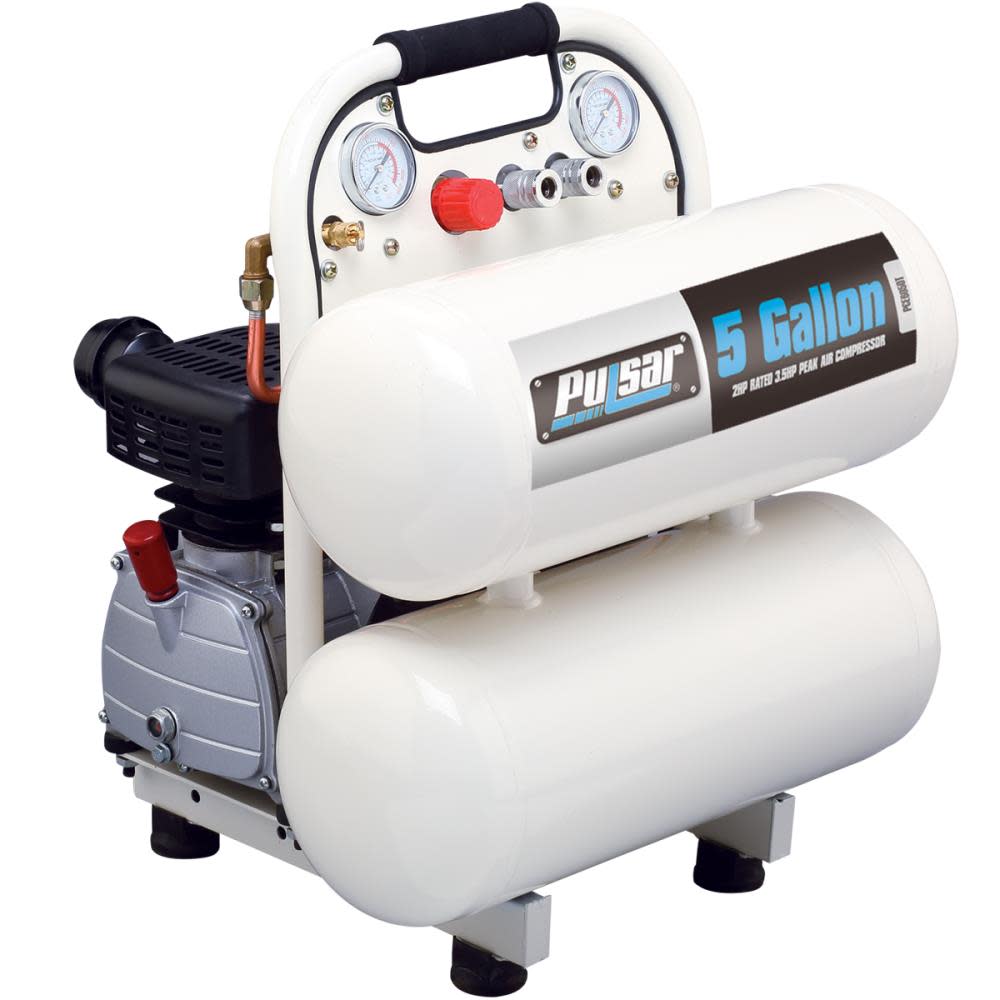

5 Gallon Twin Tank Air Compressor
The twin-tank design of this oil-lubricated, five-gallon unit results in the smallest footprint of any compressor design. Add a powerful 3.5 HP electric motor, flutter-valve pump that puts out 115 PSI and OEM’s of 5.2 at 40 PSI and 4.2 at 90 PSI and you have a compact compressor capable of use with all but the most demanding air tools. Functional enough for use as an inflater, yet vibrant enough for use with the majority of air tools, the PCE6050T includes dual pressure gauges and dual quick couplers.
Features
3.5 HP peak
2 HP rated
Oil lubricated
5.2 CFM at 40 PSI
4.2 CFM at 90 PSI
Max pressure: 115 PSI
2 Quick connect couplers

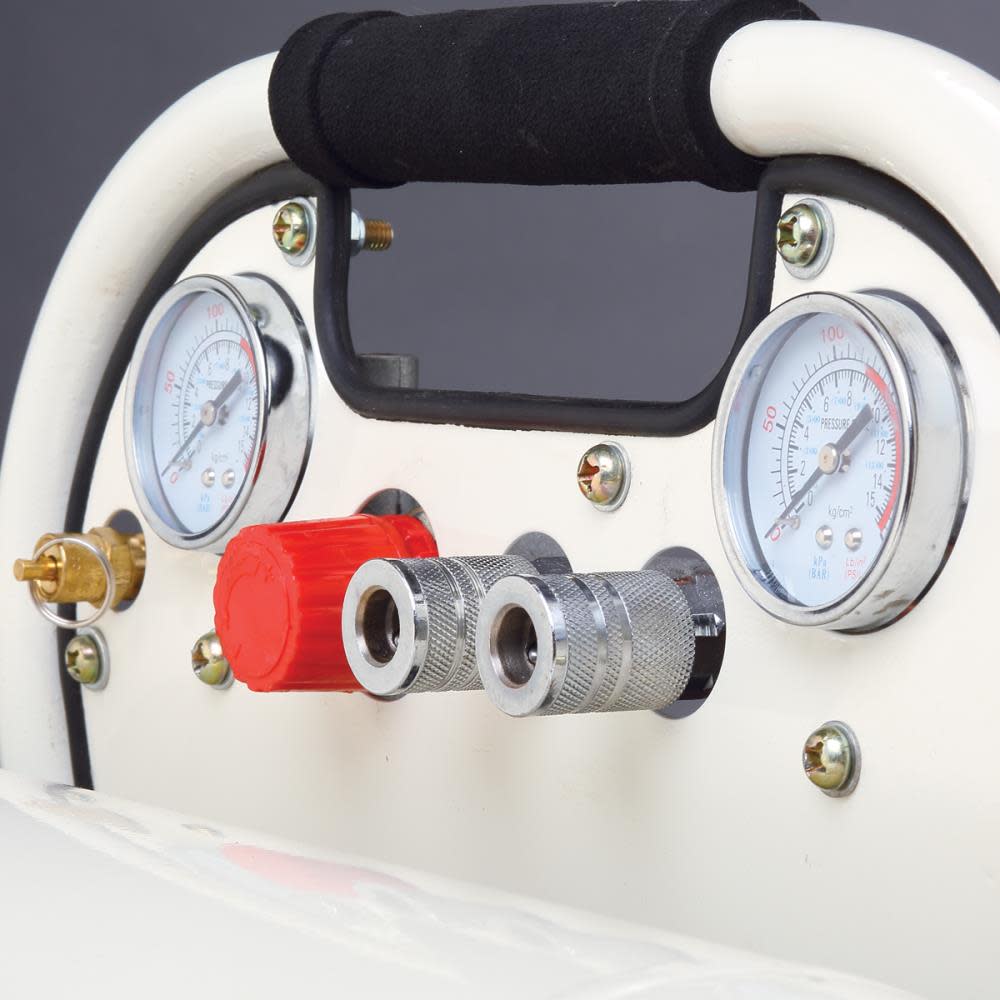

Easy-to-read dual pressure gauges
Compact and portable
Specifications
Acme Tools Brand Name
PULSAR PRODUCTS
Acme Tools Part Number
PCE6050T
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
13
Assembled Weight (lbs)
55.0
California Proposition 65 Warning Required
Yes
Color / Finish
White
Compressor Design
Portable (Hand Carried)
Cordless / Corded
Corded
Country of Origin
British Indian Ocean Territory
CSA Certified
Yes
ETL Listed
No
Height (in)
23
Horsepower (hp)
3.5
Internal Supplier Part #
PCE6050T
Internet Product Code (IPC)
B0021D1A405
Length (in)
18
Manufacturer Warranty
1 Year
Maximum Pressure Rating (psi)
115
Motor Type
Electric
Operating Position
Horizontal
Package Depth
18.0
Package Height
43.0
Package Weight
62.0
Package Weight (lbs)
62
Tank Capacity (gal)
5
Tank Configuration
Twin Stack
Tank Material
Steel
Tank Pressure Gauge
Yes
Type of Air Compressor Tank
Portable
UL Listed
No
Voltage
120
Voltage Rating
120
Weight (lbs)
60
Wheeled
No
Width (in)
21.5
