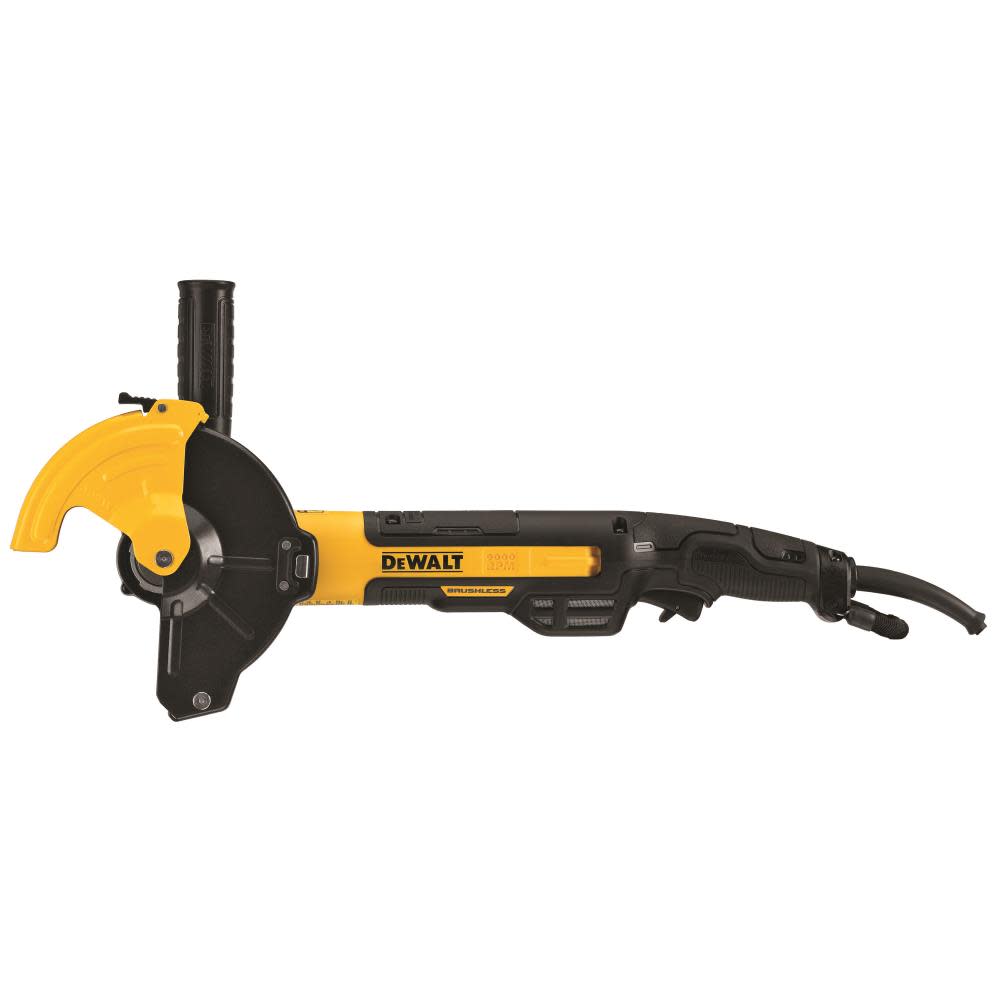

5 in. / 6 in. Brushless Small Angle Grinder, Rat Tail, with Adjustable Cut-Off Guard, Kickback Brake, No-Lock On
This 5 in. / 6 in. Brushless Small Angle Grinder, Rat Tail, with Adjustable Cut-Off Guard, Kickback Brake, and No Lock has a brushless motor to eliminate the need to service and replace brushes. It also features a brake that stops the wheel fast. PERFORM & PROTECT™ features on this tool include Kickback Brake, E-CLUTCH®, and LANYARD READY™ attachment points. This grinder is GUARANTEED TOUGH and delivers the performance you demand.
Features
Brushless motor requires no brush changes
Brake stops wheel in 1 second or less on average using DW8824 wheel
The electronic kickback brake engages when a pinch, stall, or bind-up event is sensed, engaging with maximum force to quickly stop the wheel, reduce the movement of the grinder, and shut the motor off
Power-Loss Reset® – the on/off trigger switch has a no-volt release function. in the event of a power outage or other unexpected shut down, the trigger switch will need to be cycled (turned off and then on) to restart tool.
LANYARD READYâ„¢ integrated lanyard attachment point (Lanyard not included)
2-stage trigger requires two actions to activate tool
Closed position of guard also allows for cutting in tight spots
Narrow width of guard provides better visibility compared to standard type-1 guard
Guard is adjustable from 180 degrees for cutting large materials and closed to 90 degrees for cutting small materials
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DWE46266N
Amperage (A)
13
Arbor Size
5/8 -11 UNC
Assembled Weight (lbs)
6
California Proposition 65 Warning Required
Yes
Color / Finish
Yellow/Black
Cordless / Corded
Corded
Country of Origin
China
ETL Listed
No
Grinder Type
Angle
Housing Material
Plastic
Internal Supplier Part #
DWE46266N
Internet Product Code (IPC)
EF0A821D38D
Length (in)
18.7
Lock-on Switch
No
Manufacturer Warranty
3 year limited warranty/1 year free service contract/90 day money back guarantee
Maximum Output Wattage
1800
Maximum RPM
9000
Net Tool Weight (lbs)
6.8
Overload Protection
Yes
Package Contents
Grinder; Side Handle; Hex Key; Inner and outer flange; 6 in. Adjustable Cutoff Guard
Package Weight
6.46
Package Weight (lbs)
6.46
Powered Tool Power Source
Electric – Corded
Product Storage Included
No Case Included
Side Handle
Yes
UL Listed
Yes
Variable Speed
No
Voltage
120
