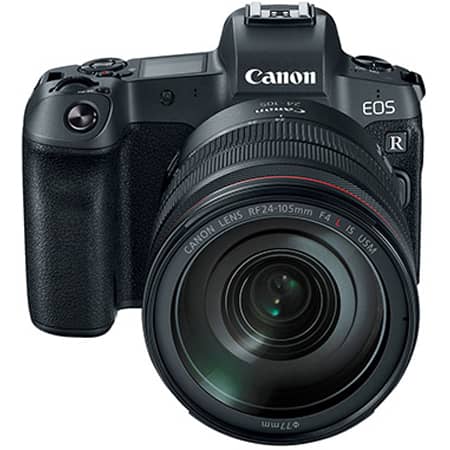

Canon 3075C012 EOS R Mirrorless Digital Camera With 24-105mm Lens
Meet Canon’s new addition to the EOS System, the EOS R camera. The foundation of this system is an entirely new lens mount, designed for optical excellence today and incredible optical potential for the future. Get ready to capture a variety of subjects in many different environments. Versatility is key with the EOS R; a 30.3 Megapixel Full-frame CMOS sensor and the DIGIC 8 Image Processor deliver stellar low-light performance, even in dark situations. Focus can be attained with incredible speed and accuracy thanks to Canon’s proprietary Dual Pixel CMOS AF system and a maximum of 5,655 manually selectable AF points**. This system also captures smooth 4K video that’s easy to share and can be enhanced in post-production thanks to the included Canon Log. The built-in, high-precision EVF and a Vari-angle Touchscreen LCD make it easy to adapt to different shooting situations. In daylight or in the dark, in the studio or on the street, the EOS R’s lightweight, intuitive and durable design means strong performance and gorgeous results. Whether capturing landscapes or wildlife, wedding portraits or dance performances, the EOS R is an advanced and impressive imaging tool that’s primed to deliver the stunning photos and videos that photographers, moviemakers and any visual storytellers need to make their stories fly. Witness a new beginning with the EOS R and be the revolution.
Features
- RF Mount Compatible with RF Lenses and EF/EF-S Lenses*
Whether you’re purchasing your first EOS camera or your fifth, the EOS R camera is designed to integrate smoothly into existing EOS systems. Engineered to work seamlessly with RF lenses, it maintains complete compatibility with EF and EF-S lenses by using one of three optional Mount Adapters. When using EF-S lenses, the EOS R even crops automatically to reflect the APS-C sized sensor the lenses are designed for
- 54mm Large Diameter and Short Back Focus
The RF mount on the EOS R Body camera has a large, 54mm internal diameter that enables impressive handling and provides increased flexibility for lens design. And thanks to the camera’s mirrorless design, the lens’s rear element can be much closer to the image plane. This reduced back focus distance, combined with the RF mount’s 54mm diameter, helps facilitate lenses of stellar optical quality and stunning performance while enabling innovative compact camera and lens designs
- 20mm Flange Focal Distance with Robustness for Professional Use
All RF lenses feature a 20mm flange focal distance, which is the distance from the lens mount to the surface of the image sensor. This flange focal distance balances the benefits of short back focus with the engineering requirements necessary for mount stability. Accordingly, the RF mount’s flange focal distance ensures excellent optical performance while maintaining the mount rigidity and camera durability necessary for real-world operation
- 12 Pins for Quickly Communicating Large Amounts of Information
With a robust 12 pin connection between the camera and the lens, the EOS R camera and RF lenses are able to communicate at a higher speed, transmitting a larger amount of data and information for incredibly fast AF, plus enhanced image stabilization and optimization
- Variety of Mount Adapter Options for Expanded Compatibility with EF/EF-S Lenses
Mount adapters, such as the Mount Adapter EF-EOS R, deliver seamless connections between the EOS R camera and EF and EF-S lenses with all functions intact. Offering L series level weather and dust sealing, the Mount Adapter EF-EOS R is even compatible with EF extenders like the Extender EF 1.4x III to extend your camera’s optical reach. With an entire arsenal of EF and EF-S lenses at your disposal, the Mount Adapter EF-EOS R and other mount adapters ensure endless creative possibilities for the EOS R camera. Beyond enabling use of EF and EF-S lenses on the EOS R camera, the Control Ring Mount Adapter EF-EOS R and the Drop-in Filter Mount Adapter EF-EOS R add functions that open up a number of new possibilities for creative image capture. The Control Ring Mount Adapter EF-EOS R adds a control ring like those found on RF lenses, providing the same level of control to your EF and EF-S lenses and supporting the same setting configuration regardless of lens. The Drop-in Filter Mount Adapter EF-EOS R enables compatibility with EF and EF-S lenses and includes drop-in filter capability for use with circular polarizing filters or variable ND filters
Specifications
General
- Type: Digital single-lens non-reflex AF/AE camera
- Compatible Lenses:
- Canon RF lens group (excluding EF, EF-S and EF-M lenses)
- When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Image Sensor
- Pixel Unit: Approx. 5.36 µm square
- Aspect Ratio: 3:2 (Horizontal:Vertical)
- Color Filter System: RGB primary color filters
- Low Pass Filter: Installed in front of the image sensor, non-detachable
- Dust Deletion Feature:
- Self Cleaning Sensor Unit
- Removes dust adhering to the low-pass filter
- At power off only / Enable / Disable. Performed automatically (taking about 3.0 sec. as indicated on the screen) or manually (taking about 9.0 sec. as indicated on the screen)
- After manually activated cleaning, the camera will automatically restart (Power OFF to ON)
- When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected
- Dust Delete Data acquisition and appending
- The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images
- The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots
- Not available with EF-S lenses, in cropped shooting or when distortion correction is applied
Recording System
- Recording Format: EXIF 2.3 (DCF2.0)
- File Size:
- 3:2 Aspect Ratio:
- Large/RAW/C-RAW: 6720 x 4480
- Medium: 4464 x 2976
- Small 1: 3360 x 2240
- Small 2: 2400 x 1600
- 1.6x (Crop):
- Large/RAW/C-RAW: 4176 x 2784
- Small 2: 2400 x 1600
- 4:3 Aspect Ratio:
- Large/RAW/C-RAW: 5952 x 4480*
- Medium: 3968 x 2976
- Small 1: 2976 x 2240*
- Small 2: 2112 x 1600*
- 16:9 Aspect Ratio:
- Large/RAW/C-RAW: 6720 x 3776
- Medium: 4464 x 2512
- Small 1: 3360 x 1888
- Small 2: 2400 x 1344
- 1:1 Aspect Ratio:
- Large/RAW/C-RAW: 4480 x 4480
- Medium: 2976 x 2976
- Small 1: 2240 x 2240
- Small 2: 1600 x 1600
- Values for Recording Pixels are rounded to the nearest 100,000 or 10,000
- For RAW and JPEG images, information outside the cropping area is not retained
- JPEG images are generated in the set aspect ratio
- RAW images are generated in [3:2], and the set aspect ratio is appended
- * Indicate an inexact proportion
- File Numbering:
The following file numbers can be set:
- Continuous Numbering: The numbering of captured images continues even after you replace the card
- Auto Reset: When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card
- Manual Reset: Resets the file number to 0001, and creates a new folder automatically
- RAW + JPEG Simultaneous Recording: Possible
- Color Space: Selectable between sRGB and Adobe RGB
White Balance
- Auto White Balance: Option between ambience priority and white priority settings
- Color Temperature Compensation:
- Blue/Amber Bias: ±9 Levels
- Magenta/Green Bias: ±9 Levels
- Corrected in reference to the current WB mode’s color temperature
Viewfinder
- Magnification: Approx. 0.76 (with 50mm lens at infinity, -1 m-1)
- Eye Point: Approx. 23mm (at -1 m-1 from the eyepiece lens end)
- Viewfinder Information: Displayed with transparent liquid crystal
- AF point information
- Number of remaining multiple exposures
- HDR shooting
- Multiple-exposure shooting
- Dual Pixel RAW shooting
- Multi Shot Noise Reduction
- Digital Lens Optimizer
- AF method
- AF operation
- Drive mode
- Metering mode
- Anti-flicker shooting
- Shooting mode
- Scene icons
- AE lock
- Flash-ready
- Flash off
- FE lock
- High-speed sync
- Shutter speed
- Multi-function lock warning
- Aperture
- Lens information
- Exposure level indicator
- Exposure compensation
- Highlight tone priority
- ISO speed
- Possible shots
- Number of self-timer shooting
- Maximum burst
- Battery level
- Exposure simulation
- AEB
- FEB
- Still photo cropping
- Aspect ratio
- Auto Lighting Optimizer
- Picture Style
- White balance
- White balance correction
- Image Quality
- Bluetooth® function
- Wi-Fi® function
- Histogram
- Electronic level
Autofocus
- AF Points:
- Max. 5,655
- When selected with cross keys
- AF Working Range: EV -6 to 18 (f/1.2, at 73°F/23°C, ISO 100, One-Shot AF)
- AF Assist Beam:
- Enable
- Disable
- LED AF assist beam only
- Focus range with the AF-assist beam is generally no more than 13.1 ft. / 4m (at f/5.6)
Exposure Control
- Metering Modes:
- Evaluative metering (AF point-linked)
- Partial metering (approx. 6.1% of the area at the center of the screen)
- Spot metering (approx. 2.7% of the area at the center of the screen)
- AF point-linked spot metering not provided
- Center-weighted average metering
- Metering Range: EV -3 – 20 (at 73°F/23°C, ISO 100)
- Exposure Control Systems:
- Scene Intelligent Auto
- Flexible-priority AE
- Program AE (shiftable)
- Shutter-priority AE (Safety shift possible)
- Aperture-priority AE (Safety shift possible)
- Manual exposure
- Bulb
- Custom shooting mode C1, C2, C3
Shutter
- Shutter Release: Soft-touch electromagnetic release
Built in Flash
External Speedlite
- EOS Dedicated Speedlite: The camera can set the following with EX series Speedlites
- External flash control
- Flash firing, E-TTL II Flash metering, Slow synchro, Safety FE, Flash mode, Wireless function, Flash zoom, Shutter synchronization and Flash exposure compensation
- Flash Custom Function setting
- The setting options for both (1) and (2) will differ depending on the Speedlite used
- Flash Exposure Compensation: ±3 Stops in 1/3- or 1/2-stop increments
Drive System
- Drive Modes:
- Single shooting
- High-speed continuous shooting
- Max. approx. 8.0 fps
- The conditions are attaining the maximum continuous shooting speed are as follows: Shooting with a fully charged battery in One-Shot AF mode at a 1/1000 sec. or faster shutter speed and maximum aperture (depending on the lens), at room temperature (73°F/23°C), with flicker reduction, Dual Pixel RAW shooting and Digital Lens Optimizer disabled
- In One-Shot AF mode with Image Stabilizer off when using these lenses: EF 300mm f/4L IS USM, EF 28-135mm f/3.5-5.6 IS USM, EF 75-300mm f/4-5.6 IS USM, EF 100-400mm f/4.5-5.6L IS USM
- The continuous shooting speed for high-speed continuous shooting may be lower, depending on conditions such as these: battery level, temperature, flicker reduction, Dual Pixel RAW shooting, shutter speed, aperture, subject conditions, brightness, AF operation, type of lens, use of flash and shooting settings
- The maximum continuous shooting speed may be lower when using a cold battery in cold environments or when the battery level is low, at approx. 6.0 shots/sec.
- With Servo AF: Max. approx. 5.0 fps (shooting speed priority) [Silent LV shooting: Mode 1]
- With Servo AF, the maximum continuous shooting speed may become slower depending on subject conditions or the lens used. Also, the maximum continuous shooting speed will become slower when setting the [LV silent shooting] to [Disable]
- Low-speed continuous shooting (Tracking priority)
- Max. approx. 3.0 fps
- With Dual Pixel RAW: Max. approx. 2.2 fps
- High-speed continuous shooting not possible
Live View Functions
- Metering Modes:
- Center-weighted average metering
- Metering Brightness Range: EV -1 – 20 (at 73°F/23°C, ISO 100)
- AF point-linked evaluative metering
- For face detection with Face detection + Tracking AF.
- Metering Range: EV -4 – 18 (at 73°F/23°C, ISO 100, One-Shot AF, with 29.97 fps)
- Grid Display:
Video Shooting
- Exposure Compensation: ±3 Stops in 1/3- or 1/2-stop increments
LCD Monitor
- Coverage: Approx. 100% vertically/horizontally
- Brightness Control: Manually adjustable to one of seven brightness levels
- Coating: Clear View LCD II
- Anti-smudge coating provided
- Anti-reflection coating not provided
- Interface Languages: 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)
Playback
- Display Format:
- Single image display
- No information display
- Basic information display
- Detailed shooting information display
- Detailed information
- Lens/Histogram information
- White balance information
- Picture Style information 1
- Picture Style information 2
- Color space/Noise reduction information
- Lens aberration correction information 1
- Lens aberration correction information 2
- Record of sent images
- GPS information
- IPTC information
- Display selection is available for Basic information display and Shooting information display
- Index Display:
- 4-Image index
- 9-Image index
- 36-Image index
- 100-Image index
- Highlight Alert: The white areas with no image data will blink
Image Protection and Erase
- Protection:
- Single image (select image)
- Select range
- All images in folder
- All images on card
- Image browsing and image search can be based on ratings
- Ratings-based image selections also possible with DPP
- All found images (only during image search)
- Erase: Except protected images
- Select images to erase
- Select range
- All images in folder
- All images on card
- All found images (only during image search)
Direct Printing
- Compatible Printers: Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed
DPOF: Digital Print Order Format
- DPOF: Compliant to DPOF Version 1.1
Power Source
- Battery Check: Automatic battery check when the power switch is turned ON
- Displayed in 6 levels
- Battery level displayed on the LCD panel and in the viewfinder
- One of six levels displayed for LP-E6N and LP-E6. The display for other power sources is different
- Power Saving: Power turns off after the set time of non-operation elapses
- Display Off:
- Available Time Options:
- 15 Sec.
- 30 Sec.
- 1 Min.
- 3 Min.
- 5 Min.
- 10 Min.
- 30 Min.
- Auto Power Off:
- Available Time Options:
- 30 Sec.
- 1 Min.
- 3 Min.
- 5 Min.
- 10 Min.
- Disable Viewfinder Off:
- At least approx. 6 min. until auto power off while the [Date/Time/Zone] screen is displayed
- Date/Time Battery:
- Built-in secondary battery
- When fully-charged, the date/time can be maintained for approx. 3 months
- Recharge Time: Approx. 8 hrs.
- The recharge time required to provide the above number of months with no battery pack installed.
- Start-Up Time:
- Approx. 0.9 sec.
- Based on CIPA testing standards
|
