Name: Canon EOS RP Mirrorless Digital Camera (Body Only)
SKU: 013803313222
Availability: InStock

Description

Canon EOS RP Mirrorless Digital Camera (Body Only) – 3380C002

Stepping up to a full-frame camera has never been easier. The mirrorless EOS RP – the lightest and most compact full-frame EOS camera to date* – includes a 26.2 MP CMOS sensor, fast and accurate autofocus, 4K video, and our powerful DIGIC 8 processor for exceptional results, even in low light. Explore vast creative possibilities with RF lenses as well as all EF/EF-S lenses**. Get impressive results using the camera’s helpful Feature Assistant and Creative Assist functions. Be imaginative with a number of special scene modes. And quickly adjust settings with the convenient Mode Dial. With its compact size, comfortable grip, vari-angle touchscreen LCD and electronic viewfinder, operation is familiar and easy. Whether you travel near or far, the EOS RP helps you capture your world with the quality, control and ease you crave.

Features

Lightest, Smallest Full-frame EOS Camera*
For all their appealing features one of the concerns of using a full-frame camera has been its larger profile, however, the EOS RP is the lightest and smallest Canon EOS full-frame camera to date.* Weighing approx. 440g (body only) while being impressively compact and comfortable to use, the EOS RP is more convenient to carry, shoot with, and store than any previous EOS full-frame camera before.
Compatible with EF/EF-S Lenses**
Engineered to work seamlessly with RF lenses, the EOS RP also maintains complete compatibility with EF and EF-S lenses by using one of three optional Mount Adapters. When using EF-S lenses, the EOS RP even crops automatically to reflect the APS-C sized sensor the lenses are designed for.

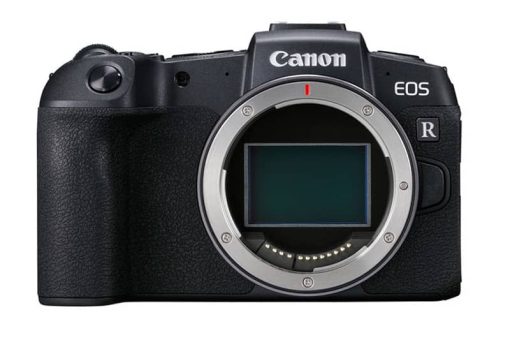

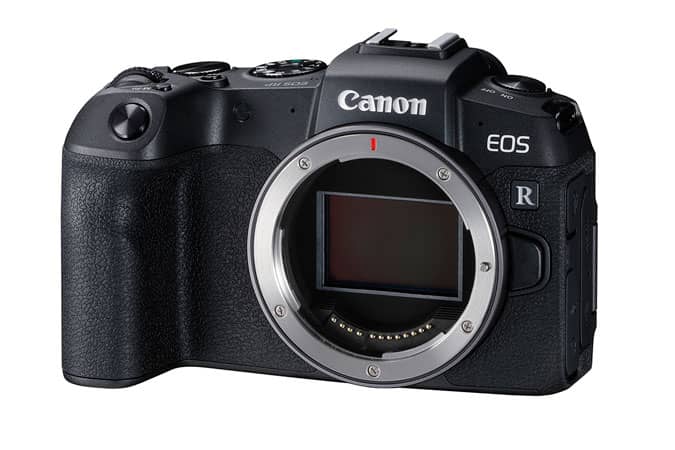

54mm Large Diameter and Short Back Focus
The RF mount on the EOS RP camera has a large, 54mm internal diameter – the same as the EOS R – enabling impressive handling and providing increased flexibility for lens design. Thanks to the camera’s mirrorless design, the lens’s rear element can be much closer to the image plane. This reduced back focus distance, combined with the RF mounts 54mm diameter, helps facilitate lenses of stellar optical quality and stunning performance while enabling innovative compact camera and lens designs.
20mm Flange Focal Distance for Increased Durability
All RF lenses feature a 20mm flange focal distance, which is the distance from the lens mount to the surface of the image sensor. This flange focal distance balances the benefits of short back focus with the engineering requirements necessary for mount stability. Accordingly, the RF mount’s flange focal distance ensures excellent optical performance while maintaining the mount rigidity and camera durability necessary for real-world operation.
12 Pins for Quickly Communicating Large Amounts of Information
With a robust 12 pin connection between the camera and the lens, the EOS RP camera and RF lenses are able to communicate at a high speed, transferring a large amount of data and information for incredibly fast AF, plus enhanced image stabilization and optimization.
Variety of Mount Adapter Options for Expanded Compatibility with EF/EF-S Lenses
Mount adapters, such as the Mount Adapter EF-EOS R, deliver seamless connections between the EOS RP camera and EF and EF-S lenses with all functions intact. Offering L series level weather and dust sealing, the Mount Adapter EF-EOS R is even compatible with EF extenders like the Extender EF 1.4x III to extend your camera’s optical reach. Beyond enabling use of EF and EF-S lenses on the EOS RP camera, the Control Ring Mount Adapter EF-EOS R and the Drop-in Filter Mount Adapter EF-EOS R add functions that open up a number of new possibilities for creative image capture.
High Image Quality with 26.2 Megapixel Full-frame CMOS Sensor and DIGIC 8 Image Processor.
26.2 Megapixel Full-frame CMOS Sensor
The EOS RP camera features a Canon-developed and produced 35mm full-frame CMOS sensor with approx. 26.2 effective megapixels. It employs the DIGIC 8 Image Processor to enhance the speed of operations across the board. This means fast, efficient performance and phenomenal image quality.

Specifications

General

Type: Digital single-lens non-reflex AF/AE camera
Recording Media: SD/SDHC/SDXC memory cards
- SD card speed class-compatible.
- UHS-I and II supported.
- Use of UHS-II microSDHC/SDXC cards with a microSD to SD adapter is not recommended. When using UHS-II supported cards, use SDHC/SDXC cards compatible with UHS-II.
- Eye-Fi cards not supported.
- Multimedia cards (MMC) cannot be used.
Image Format: Approx. 35.9 x 24.0mm
Compatible Lenses
- Canon RF lens group (excluding EF, EF-S and EF-M lenses)
- When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount: Canon RF mount

Image Sensor

Type: CMOS sensor (compatible with Dual Pixel CMOS AF)
Pixels: Approx. 26.2 megapixels
Pixel Unit: Approx. 5.76 µm square
Total Pixels: Approx. 27.1 megapixels
Aspect Ratio: 3:2 (Horizontal:Vertical)
Color Filter System: RGB primary color filters
Low Pass Filter: Installed in front of the image sensor, non-detachable
Dust Deletion Feature
- Self Cleaning Sensor Unit
- Removes dust adhering to the low-pass filter.
- At power off only / Enable / Disable. Performed automatically (taking about 3.3 sec. as indicated on the screen) or manually (taking about 12.2 sec. as indicated on the screen).
- After manually activated cleaning, the camera will automatically restart (Power OFF to ON).
- When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected.
- Dust Delete Data acquisition and appending
- The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
- The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
- Not available with EF-S lenses, in cropped shooting or when distortion correction is applied.
- Manual cleaning (by hand)

Recording System

Recording Format
- Compliant to Design rule for Camera File system 2.0 and Exif 2.3.
- Supports time difference information in Exif 2.31.
File Size
- 3:2 Aspect Ratio
  - Large/RAW/C-RAW: 6240 x 4160
  - Medium: 4160 x 2768
  - Small 1: 3120 x 2080
  - Small 2: 2400 x 1600
- 1.6x (Crop)
  - Large/RAW/C-RAW: 3888 x 2592
  - Small 2: 2400 x 1600
- 4:3 Aspect Ratio
  - Large/RAW/C-RAW: 5536 4160
  - Medium: 3680 x 2768
  - Small 1: 2768 x 2080*
  - Small 2: 2112 x 1600*
- 16:9 Aspect Ratio*
  - Large/RAW/C-RAW: 6240 x 3504
  - Medium: 4160 x 2336
  - Small 1: 3120 x 1752
  - Small 2: 2400 x 1344
- 1:1 Aspect Ratio
  - Large/RAW/C-RAW: 4160 x 4160
  - Medium: 2768 x 2768
  - Small 1: 2080 x 2080
  - Small 2: 1600 x 1600
- Values for Recording Pixels are rounded to the nearest 100,000 or 10,000.
- For RAW and JPEG images, information outside the cropping area is not retained.
- JPEG images are generated in the set aspect ratio.
- RAW images are generated in [3:2], and the set aspect ratio is appended.
- * Indicate an inexact proportion.
File Numbering
The following file numbers can be set:
- File numbering methods
- Continuous numbering
- The numbering of captured images continues even after you replace the card.
- Auto reset
- When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
- Manual reset
- Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording: Possible
Color Space: Selectable between sRGB and Adobe RGB
Picture Style
- Auto
- Standard
- Portrait
- Landscape
- Fine Detail
- Neutral
- Faithful
- Monochrome
- User Defined 1-3
- In Scene Intelligent Auto, [Auto] will be set automatically.
- [Standard] is the default setting for [User Def. 1-3].

White Balance

Settings
- Auto
- Day Light
- Shade
- Cloudy*
- Tungsten light
- White fluorescent light
- Flash
- Custom (Custom WB)
- Color temperature
- * Effective also in twilight and sunset.

Auto White Balance: Option between ambience priority and white priority settings.

Color Temperature Compensation
- Blue/amber bias: ±9 levels
- Magenta/green bias: ±9 levels
- Corrected in reference to the current WB mode’s color temperature.

Viewfinder

Type: OLED color electronic viewfinder
Coverage: Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint).
Magnification: Approx. 0.70 (with 50mm lens at infinity, -1 m-1)
Eye Point: Approx. 22mm (at -1 m-1 from the eyepiece lens end)
Viewfinder Information
- Movie recording time
- Maximum burst
- Possible shots/Sec. until self-timer shoots
- Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
- Touch Shutter
- AF method
- AF operation
- Drive mode
- Metering mode
- Anti-flicker shooting
- Shooting mode/Scene icon
- AE lock
- Flash-ready/FE lock/High-speed sync
- Shutter speed/Multi-function lock warning
- Aperture
- AF point (1-point AF
- Exposure level indicator
- Exposure compensation
- Highlight tone priority
- ISO speed
- Create folder
- Movie recording size
- No. of shots left for focus bracketing/multiple exposures/interval timer
- Temperature warning
- Battery level
- Exposure simulation
- AEB/FEB
- Magnify button
- Still photo cropping
- Aspect ratio
- Auto Lighting Optimizer
- Picture Style
- White balance/White balance correction
- Quick Control button
- Image Quality
- Bluetooth®/Wi-Fi® function
- Wi-Fi® signal strength
- Histogram
- Electronic level
- GPS acquisition status
- Flash exposure compensation
- Focus distance display

Autofocus

Type: Phase-difference detection system with image sensor (Dual Pixel CMOS AF)
AF Points
- Max. 4,779
- When selected with cross keys.
AF Working Range: EV -5 to 18 (f/1.2, at 73°F/23°C, ISO 100, One-Shot AF)
Focusing Modes
- One-Shot AF
- Servo AF
- Manual (Manual focus)
AF Point Selection
- AF Point Selection and AF Operation
  - AF Method: Face+Tracking AF
    - AF Point Selection:Automatic selection (auto detection), or AF points can be set manually and freely in the AF area.
    - AF Operation: AF prioritizing subjects targeted by Face+Tracking. If no Face+Tracking subject is detected, the entire AF area is used for auto selection AF.
  - AF Method: Spot AF*
    - AF Point Selection: Autofocuses targeting any specified AF points.
  - AF Method: 1-point AF
    - AF Point Selection: AF points can be set manually and freely in the AF area.
    - AF Operation: AF targeting specified AF points. (If there are faces in the area, they take precedence.)
  - AF Method: Expand AF Area (Above, below, left and right/Around)
    - AF Point Selection: AF points can be set manually and freely in the AF area.
    - AF Operation: AF prioritizing specified AF points, supplemented by AF points above, below, left and right or around in the expansion area. (If there are faces in the center frame area, they take precedence.)
  - AF Method: Zone AF Large Zone AF (Vertical/Horizontal)
    - AF Point Selection: Zones covering specific areas can be set manually and freely in the AF area.
    - AF Operation: Automatic AF point selection in the specified zone. (Prioritizes subjects at close range, but any faces in the area take precedence.)
  - AF points can be moved by touching the screen or using the Main Dial, Quick Control Dial or cross keys.
    * Not available in 4K movie recording
AF Assist Beam
- Enable
- Disable
- LED AF assist beam only

Focus range with the AF-assist beam is generally no more than 13.1 ft. / 4m (at f/5.6).
Options restricted to [Enable] / [Disable in Basic Zone modes.
[AF-assist beam firing] is set to [Disable] in Landscape, Panning, Kids, and Sports modes.

Exposure Control

Metering Modes: Real-time metering with image sensor (384 [24×16])
- Evaluative metering (AF point-linked)
- Partial metering (approx. 5.5% of the area at the center of the screen)
- Spot metering (approx. 2.7% of the area at the center of the screen)
- AF point-linked spot metering not provided.
- Center-weighted average metering
Metering Range: EV -3 – 20 (at 73Â°F/23Â°C, ISO 100)
Exposure Control Systems
- Scene Intelligent Auto
- Flexible-priority AE
- Program AE (shiftable)
- Shutter-priority AE (Safety shift possible)
- Aperture-priority AE (Safety shift possible)
- Manual exposure
- Bulb
- Custom shooting mode C1, C2, C3
ISO Speed Range
- Manual Setting
  - Normal: ISO 100–40000 (in 1/3-stop or whole-stop increments)
  - Expanded: L: equivalent to ISO 50, H1: 51200, H2: 102400
- For [Highlight tone priority], the minimum ISO speed limit will be ISO 200 to 40000.
- ISO speed safety shift possible with Custom Function.
- All the expanded ISO speeds including those for movies are only “equivalent speeds.
Auto
- Shooting Mode: Scene Intelligent Auto
  - ISO Settings
    - No Flash: ISO 100–12800
    - With Flash: ISO 100–1600

Shooting Mode: Fv/P/Tv/Av/M
- ISO Settings
  - No Flash: ISO 100–40000*1
  - With Flash: ISO 100–1600*1
Shooting Mode: Silent Mode
- ISO Settings
  - No Flash: ISO 100-12800
  - With Flash:-(Except with AF-assist beam)
Shooting Mode: B
- ISO Settings
  - No Flash: ISO 400 fixed*1*2
  - With Flash: ISO 400 fixed
*1 Depending on [Minimum] and [Maximum] of [ISO speed settings] or [Range for stills].
*2 If outside the range set for ISO Auto, the value nearest ISO 400 is used.

Exposure Compensation
- Manual: Â±3 stops in 1/3- or 1/2-stop increments
- AEB: Â±3 stops in 1/3- or 1/2-stop increments
AE Lock
- Auto AE lock
- The metering mode for AE lock after focus can be customized.
- Manual AE lock
- In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
- Enabled in all metering modes.

Shutter

Type
Electronically controlled focal-plane shutter
- Electronic first curtain, mechanical second curtain
- Electronic shutter (slit rolling read out)
Shutter Speeds
- 1/4000 to 30 sec., bulb (total range of all shooting modes)
- X-sync at 1/180 sec.
Shutter Release: Soft-touch electromagnetic release
Self Timer: 10-sec. delay, 2-sec. delay, Continuous shooting
Shutter Lag Time
- Drive Mode: Single Shooting
  - Silent LV Shooting: No flash
    - Release Time Lag: Approx. 55 ms
  - Silent LV Shooting: flash
    - Release Time Lag: Approx. 147 ms
- Drive Mode: Silent Shutter

Built in Flash

Flash Metering System: E-TTL II autoflash
FE Lock: Provided

External Speedlite

External Flash Settings
- The camera can set the following with EX series Speedlites:
- External flash control
- Flash firing, E-TTL II Flash metering, Slow synchro, Safety FE, Flash mode, Wireless function, Flash zoom, Shutter synchronization and Flash exposure compensation
- Flash Custom Function setting
- The setting options for both (1) and (2) will differ depending on the Speedlite used.
Flash Exposure Compensation
- ±3 stops in 1/3- or 1/2-stop increments

Drive System

Drive Modes
- Single shooting
- High-speed continuous shooting
- Max. approx. 5.0 fps
- The conditions are attaining the maximum continuous shooting speed are as follows:
- Shooting with a fully charged battery in One-Shot AF mode at a 1/500 sec. or faster shutter speed and maximum aperture (depending on the lens), at room temperature (73Â°F/23Â°C), without flicker reduction, or image stabilization (depending on the lens).
- The continuous shooting speed for high-speed continuous shooting may be lower, depending on conditions such as these: battery level, temperature, flicker reduction, shutter speed, aperture, subject conditions, brightness, AF operation, type of lens, use of flash and shooting settings.
- With Servo AF: Max. approx. 4.0 fps (shooting speed priority)
- When set to reduce flicker: Max. approx. 4.0 fps
- In flash photography: Max. approx. 2.3 fps
- Low-speed continuous shooting (Tracking priority)
- Max. approx. 2.6 fps
- Self-timer: 10 sec./remote control
- Self-timer: 2 sec./remote control
- Self-timer: Continuous Shooting
Maximum Burst
- Image Quality: Large (Fine)
  - Image File Size (approx. MB): 9.1
  - Possible Shots (approx.): 3320
  - Maximum Burst (approx.)
    - Standard: Full
    - High-speed (UHS-II): Full
- Image Quality: Large (Normal)
  - Image File Size (approx. MB): 4.9
  - Possible Shots (approx.): 6060
  - Maximum Burst (approx.)
    - Standard: Full
    - High-speed (UHS-II): Full
- Image Quality: Medium (Fine)
  - Image File Size (approx. MB): 5.1
  - Possible Shots (approx.): 5820
  - Maximum Burst (approx.)
    - Standard: Full
    - High-speed (UHS-II): Full
- Image Quality: Medium (Normal)
  - Image File Size (approx. MB): 2.9
  - Possible Shots (approx.): 10280
  - Maximum Burst (approx.)
    - Standard: Full
    - High-speed (UHS-II): Full
- Image Quality: Small 1 (Fine)
  - Image File Size (approx. MB): 3.4
  - Possible Shots (approx.): 8750
  - Maximum Burst (approx.)
    - Standard: Full
    - High-speed (UHS-II): Full
- Image Quality: Small 1 (Normal)
  - Image File Size (approx. MB): 2.0
- Image Quality: Small 2
  - Image File Size (approx. MB): 1.9
  - Possible Shots (approx.): 15760
  - Maximum Burst (approx.)
    - Standard: Full
    - High-speed (UHS-II): Full
- Image Quality: RAW
  - Image File Size (approx. MB): 29.1
  - Possible Shots (approx.): 1040
  - Maximum Burst (approx.)
    - Standard: 50
    - High-speed (UHS-II): Full
- Image Quality: C-RAW
  - Image File Size (approx. MB): 17.1
  - Possible Shots (approx.): 1780
  - Maximum Burst (approx.)
    - Standard: 130
    - High-speed (UHS-II): Full
- Image Quality: RAW + Large (Fine)
  - Image File Size (approx. MB): 29.1 + 9.1
  - Possible Shots (approx.): 790
  - Maximum Burst (approx.)
    - Standard: 42
    - High-speed (UHS-II): 98
- Image Quality: C-RAW + Large (Fine)
  - Image File Size (approx. MB): 17.1 + 9.1
  - Possible Shots (approx.): 1160
  - Maximum Burst (approx.)
    - Standard: 66
    - High-speed (UHS-II): 170
The number of possible shots and maximum burst (standard) apply to a 32GB card based on Canon’s testing standards. The maximum burst (High-speed) apply to a 32GB card based on Canon’s testing standards.
The file size, number of possible shots and maximum burst vary depending on shooting conditions (aspect ratio of 3:2, subject, memory card brand, ISO speed, Picture Style, etc.)
“Full” indicates that shooting is possible until the card becomes full.

Live View Functions

Shooting Modes: Still photo shooting and video shooting
Focusing
- Dual Pixel CMOS AF
- Contrast AF (when recording 4K movies)
- Manual focus
- Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
- With Contrast AF as used when recording 4K movies, focusing may take longer than when recording Full HD or HD movies, and focusing with certain lenses may be difficult.
Metering Modes
- Center-weighted average metering
- Metering brightness range: EV -1 – 20 (at 73Â°F/23Â°C, ISO 100)
- AF point-linked evaluative metering
- For face detection with Face detection + Tracking AF.
Metering Range
- EV -2.5 – 18 (at 73°F/23°C, ISO 100, One-Shot AF, with 29.97 fps)
Grid Display
- 3×3
- 6×4
- 3×3+diag
Video Shooting
- File Format
- MP4
- Video: MPEG-4 AVC / H.264
- Variable (averaged) bit rate
- Audio:
- ALL-I: Linear PCM
- IPB: AAC
Continuous Shooting Time
- Bit rate indicates video output only; audio is not included.
- Video recording is interrupted if the maximum recording time per movie, 29 min. 59 sec., is exceeded.
- When movie crop shooting is set to [Disable] or movie digital IS is set to [Disable].
- There is no restriction to automatically stop movie shooting even when the file size reaches 4GB.
- Sound is not recorded for approx. the last two frames when the compression method for movie recording quality is IPB or IPB Light (audio: AAC) and [C .Fn III-9: Audio compression] is set to [Enable]).
- When you play back movies on Windows, movie images and sound may become slightly out of synchronization.
Focusing
- Dual Pixel CMOS AF
- Contrast AF (When recording 4K movies)
- Manual focus
- Magnified view possible by approx. 5x or 10x for manual focusing (not possible during movie shooting).
- With Contrast AF as used when recording 4K movies, focusing may take longer than when recording Full HD or HD movies, and focusing with certain lenses may be difficult.
Range: Full range (0 to 255)
Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
LCD Monitor
- Type: TFT color, liquid-crystal monitor
- Monitor Size
  - 3.0-inch (screen aspect ratio of 3:2)
  - 2.95 in./7.50cm diagonal (2.46 in./6.24cm width, 1.64 in./4.16cm height)
- Pixels: Approx. 1.04 million dots
- Coverage: Approx. 100% vertically/horizontally
- Brightness Control: Manually adjustable to one of seven brightness levels
- Coating: Clear View LCD II
  - Anti-smudge coating provided.
  - Anti-reflection coating not provided.
- Interface Languages
  - 29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

Display Format
- Single image display
- No information display
- Basic information display
- Detailed shooting information display
- Detailed information
- Lens/Histogram information
- White balance information
- Picture Style information 1
- Picture Style information 2
- Color space/Noise reduction information
- Lens aberration correction information 1
- Lens aberration correction information 2
- Record of sent images
- GPS information
Display selection is available for Basic information display and Shooting information display.
- Index display
- 4-image index
- 9-image index
- 36-image index
- 100-image index
Highlight Alert: The white areas with no image data will blink.

Image Protection and Erase

Protection
- Single image (select image)
- Select range
- All images in folder
- All images on card
- Image browsing and image search can be based on ratings.
- Ratings-based image selections also possible with DPP.
- All found images (only during image search)
Erase
Except protected images
- Select images to erase
- Select range
- All images in folder
- All images on card
- All found images (only during image search)
Direct Printing
- Compatible Printers
- Images can be sent via Wi-Fi® to a PictBridge-compatible (Wireless LAN) printer and printed.
DPOF: Digital Print Order Format
- DPOF
  - Compliant to DPOF Version 1.1

Customization

Customizable Buttons
- Still Photo Shooting: Shutter button
- Still Photo Shooting: Movie button
- Still Photo Shooting: Multi-function button
  - Movie Shooting: Multi-function button
- Still Photo Shooting: AF-ON button
  - Movie Shooting: AF-ON button
- Still Photo Shooting: AE lock button
  - Movie Shooting: AE lock button
- Still Photo Shooting: AF point selection button
  - Movie Shooting: AF point selection button
- Still Photo Shooting: Lens AF stop button
  - Movie Shooting: Lens AF stop button
- Still Photo Shooting: Up key (cross keys)
  - Movie Shooting: Up key (cross keys)
- Still Photo Shooting: Left key
  - Movie Shooting: Left key
- Still Photo Shooting: Right key
  - Movie Shooting: Right key
- Still Photo Shooting: Down key
  - Movie Shooting: Down key
- Still Photo Shooting: SET button S
  - Movie Shooting: ET button
Customizable Dials
- Main dial
- Quick control dial
- Control ring
My Menu Registration
- Up to six top-tier menu items and Custom Functions can be registered.
- Up to five My Menu tabs can be added.
- My Menu tab overall operations
  - Adding a tab
  - Deleting tabs in a batch
  - Deleting all tab items
  - Setting the menu display
- My Menu tab detailed operations
  - Selecting a registered item
  - Sorting registered items
  - Deleting selected registered items
  - Deleting registered items in a batch
  - Deleting tabs
  - Changing a tab name (16 ASCII characters)

Interface

USB Terminal
Equivalent to SuperSpeed USB (USB 3.1 Gen 1)
- For PC communication
- Shared with terminal for in-camera charging with the USB Power Adapter PD-E1.
- In-camera charging: although it is compatible with USB Type-C (5V/1.5A) equivalent, do not charge the camera other than with the USB Power Adapter PD-E1.
Video Out Terminal
Type C (Resolution switches automatically) / CEC not compatible
- Images can be displayed through the HDMI output and on screen at the same time.
- Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.
Extension System Terminal
3.5mm diameter stereo mini jack

Power Source

Battery: Battery Pack LP-E17 x 1
- With the AC Adapter + DC Coupler, AC power is possible.
- With the USB Power Adapter PD-E1, in-camera charging of LP-E6N is possible but LP-E6 cannot be charged. The USB Power Adapter PD-E1 is not compatible with powering the camera.
Number of Shots
- Number of Possible Shots (Approx. Shots)
  - Shooting Method: Screen
    - Room Temperature: (73°F/23°C)
    - Possible Shots 250
    - Low Temperature: (32°F/0°C)
    - Possible Shots 240
  - Shooting Method: Screen (Eco Mode: On)
    - Room Temperature: (73°F/23°C)
    - Possible Shots 270
  - Shooting Method: Viewfinder (EVF) (Smooth)
    - Room Temperature: (73°F/23°C)
    - Possible Shots 210
    - Low Temperature: (32°F/0°C)
    - Possible Shots 200
  - Shooting Method: Viewfinder (EVF) (Power Saving)
    - Room Temperature: (73°F/23°C)
    - Possible Shots 250
    - Low Temperature: (32°F/0°C)
    - Possible Shots 240
Battery Check
Automatic battery check when the power switch is turned ON.
Displayed in 4 levels.
- Battery level displayed on the LCD panel and in the viewfinder.
- Remainingcapacity (3 level battery capacity indicator)
- Recharge performance
Power Saving
- Power turns off after the set time of non-operation elapses.
- Display off
  Available time options: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min.
- Auto power off
  Available time options: 30 sec. / 1 min. / 3 min. / 5 min. / 10 min.
- Disable
  Viewfinder off
  Available time options: 1 min. / 3 min. / Disable
  - At least approx. 6 min. until auto power off while the [Date/Time/Zone] screen is displayed.
Date/Time Battery
- Built-in secondary battery
  When fully-charged, the date/time can be maintained for approx. 3 months.
  - Recharge time: approx. 8 hrs.
    - The recharge time required to provide the above number of months with no battery pack installed.
Start-up Time
- Approx. 0.82 sec.
  - Based on CIPA testing standards.
Operating Environment
- Working Humidity Range: 32-104° F / 0-40° C
Working Conditions
- Working Temperature Range: 85° or less
