Name: Marantz Silver Gold Integrated Amplifier
SKU: 699927170158
Availability: InStock

Description

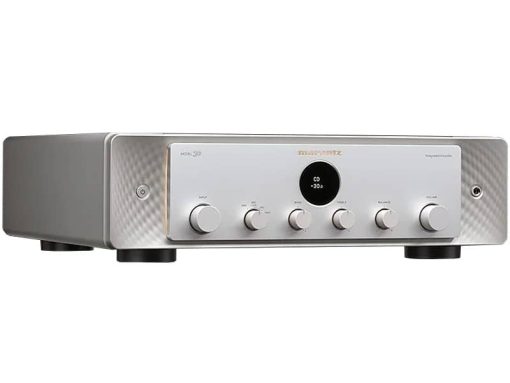

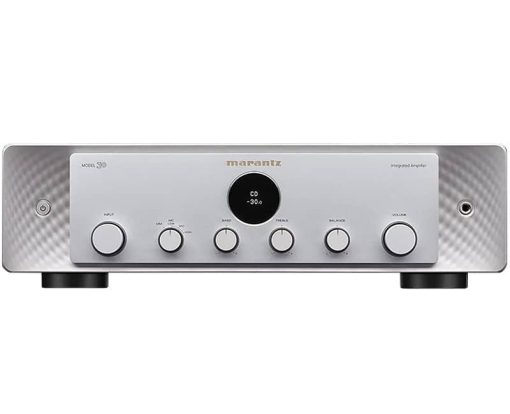

Marantz MODEL30SG Integrated Amplifier In Silver Gold

Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable.

Key Features

Custom-built preamplifier with Marantz HDAM technology
Tuned with passion by the Marantz Sound Master
Output: 100W + 100W (8ohm), 200W + 200W (4ohm)
Fully-discrete design for signal purity
Custom HDAM®-SA3 circuitry for clean, optimal dynamics
Separate amp and preamp power supplies reduce interference
Toroidal transformer dedicated to preamp for clarity and power
Current feedback preamp design with its wide-range circuitry
MM/MC Phono input with its Premium Phono EQ circuit
Brass machined input terminals for CD and Phono
Marantz original high-quality/high-purity copper speaker terminals
Linear volume control with new electric volume system
Amplifier design inherited from our flagship models

Features

Exquisite sound tuning
MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design
The most musical, accurate, detailed sound
MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM
Marantz Musical Premium Phono EQ
Envisioned to deliver optimal sound quality by simplifying the signal path – vital given the delicate nature of phono signals – the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier
MC / MM phono input impedance selector
In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector
Built for Generations
Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards
More Than 65 Years of Audiophile Heritage
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world

Specifications

Output Power

Rated Output Power
- 100W + 100W (8ohm)
- 200W + 200W (4ohm)

Features

Amplifier Circuit: Switching Amp (Hypex NC500/SMPS600 by single)
Power Trans: Toroidal w/case
Volume: Electric
Bass / Treble / Balance Control: Yes / Yes / Yes
Source Direct: Yes
Wide Range: 5Hz – 50kHz
Total Harmonic Distortion: 0.005% (1kHz, 8Ω)
Damping Factor: 500
Input Sensitivity: Phono input
- MM: 2.3 mV / 39 kohm
- MC: 250
Input Sensitivity: CD/LINE/RECORDER 220 mV / 13 kohm
Input Sensitivity: Power Amp input 1.1 V / 13 kohm
SN Ratio
- PHONO (MM): 88dB
- PHONO (MC): 75dB
- CD: 107dB

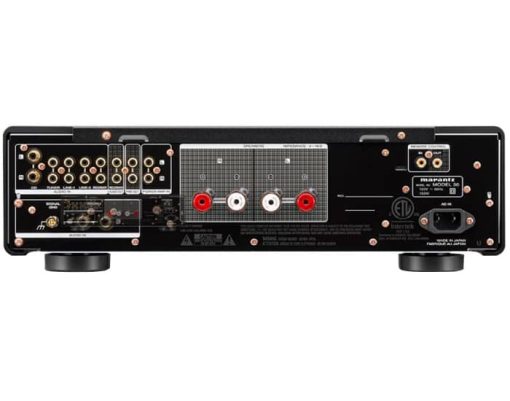

Terminal

Phono Input
- Yes (MM/MC)
- Marantz Musical Premium
- Phono EQ
Ext. Pre Input (Power Amp Direct): Yes
Preout: Yes
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out: 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
- * [PHONO] and [CD] inputs = high grade terminals
Speaker Terminal: Marantz Original SPKT-100+
Remote Control Bus Terminal: Yes (Cinch)
