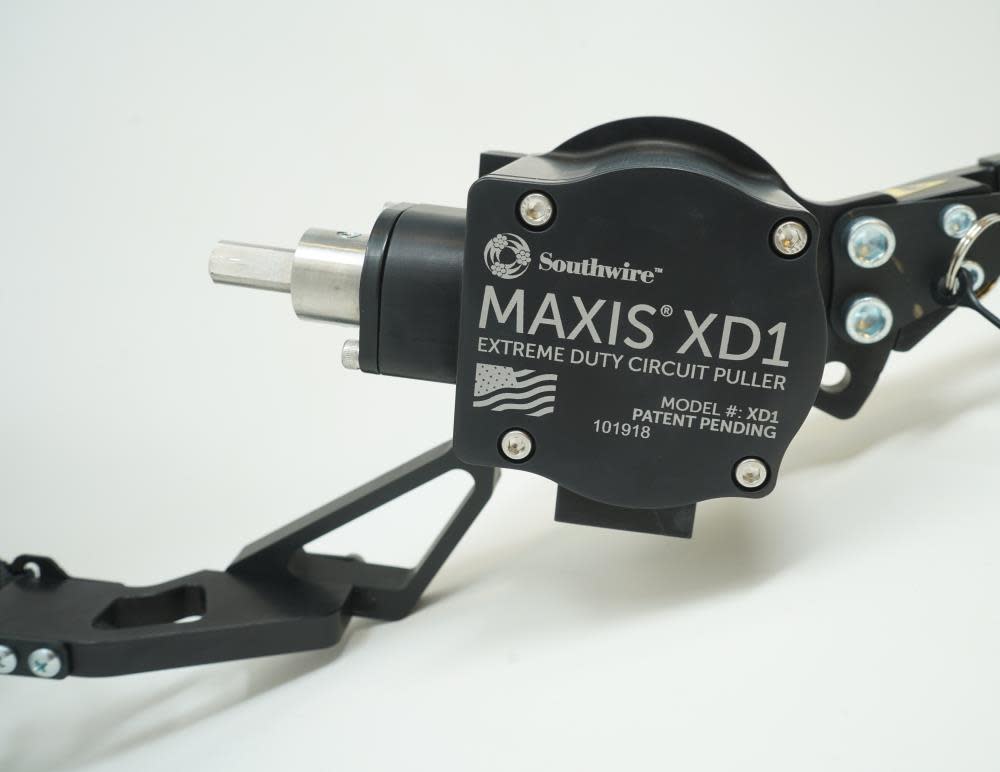

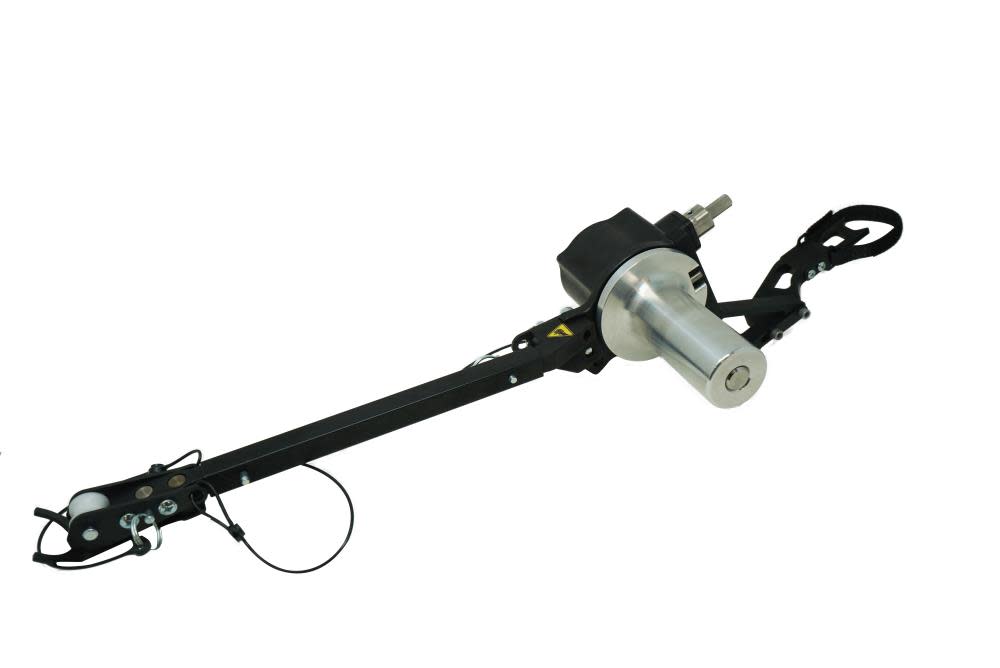

Maxis® Extreme Duty Circuit Puller
With a pulling capacity up to 1000lbs of torque, the Maxis® XD-1 brings safety, speed, and power into the hands of the contractor. By eliminating the need for physical exertion when pulling wire and cable by hand, the chances of injury from repetitive arm and shoulder motion are drastically reduced. The versatility of the XD-1 gives you another option for today’s circuit wire and small feeder pulls.
Features
COMPATIBLE: accepts most commercial 18V drills
EASY OPERATION: the XD1 has a lightweight design and is portable for one person setup and operation

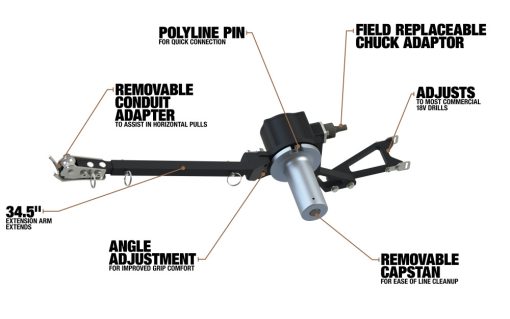

ADAPTABLE: Removable capstan to facilitate use with polyline
RUGGED DESIGN: Anodized for corrosion resistance and a field replaceable chuck adapter
1000 POUND PEAK: Continuous pulling up to 600 lbs. 1000 lbs. peak pulling force
Expandable: Expands up to 34. 5 inches with 1″ Rigid conduit and a threaded receiver for 3/4″ Monopole support
Field replaceable chuck adapter
600 lbs of constant pulling force with 1000 lbs peak pulling force
Specifications
Acme Tools Brand Name
SOUTHWIRE
Acme Tools Part Number
XD1
Assembled Height (in)
8.75
Assembled Weight (lbs)
8
Assembled Width (in)
8
Color/Finish
Black
Country of Origin
United States
Height (in)
8.75
Package Contents
Southwire 65090901 Southwire Maxis XD1 Extreme Duty 1000 lbs. Peak Circuit & Small Feeder Wire/Cable Puller One person setup and operation for use with most commercial 18V cordless drills
Package Depth
26
Package Height
12.75
Package Weight
8
