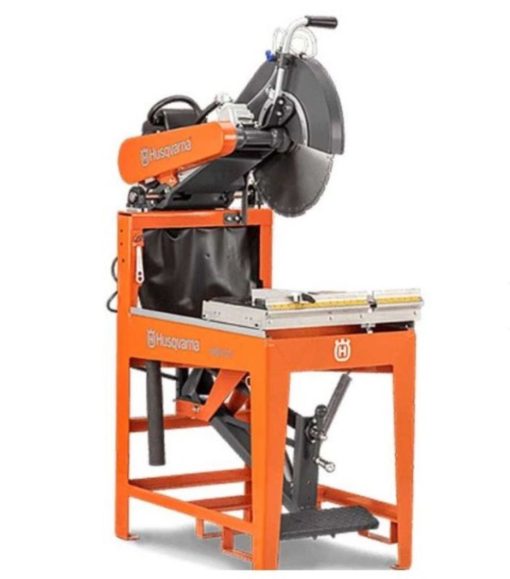

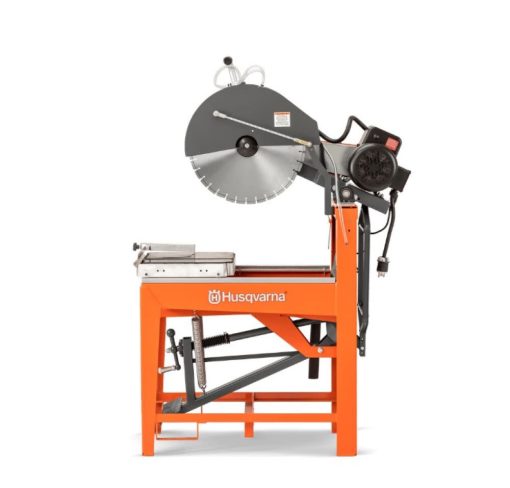

MS610 Masonry Saw 20″ 5HP 230V 60HZ 1PH
Husqvarna’s MS 610 Guardmatic wet saw is a 5HP 230V/60Hz wet saw that accepts a 20 inch diamond saw blade for all your larger work. With a 8 inch depth of cut, the saw can handle almost any project with the included foot pedal operated plunge cut feature and slide tray.
Features
Replaceable guide rails make alignment of conveyor cart easier
Height controlled by crank control or foot pedal
Stay-level blade guard keeps the blade guard parallel to the cutting table for accurate cuts
5HP Baldor totally enclosed fan cooled motor (TEFC) in 230V/60Hz
Cast alumimum conveyor cart
Twin V-belts for easy transmission of power to the blade shaft
Specifications
Acme Tools Brand Name
HUSQVARNA CONSTRUCTION
Acme Tools Part Number
967673504
Arbor Size
1 in
Arbor Size (in)
1
Assembled Weight (lbs)
370
Blade Diameter (in)
20
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Country of Origin
China
Engine Displacement (cc)
N/A
Engine Horsepower (hp)
5
Fuel Mix Ratio
N/A
Maximum Cutting Depth (in)
10
Maximum Flow Rate (gpm)
N/A
Package Contents
1 MS610 Masonry Saw 20″ 5HP 230V 60HZ 1PH
Package Depth
6
Package Height
3
Package Weight
370
Size
1 in
