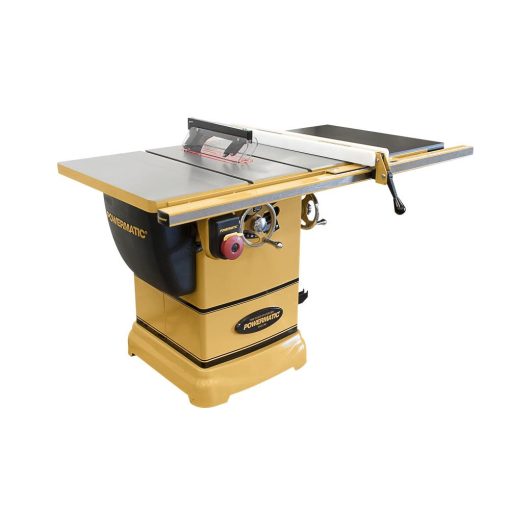

PM1000, 1-3/4 HP 1PH Table Saw, w/ 30 In. Accu-Fence System
The PM1000, 1-3/4HP 1Ph, 30-Inch Rip W/Accu-Fence System, from Powermatic, helps you cut large boards down to size for various projects. It has a 1-3/4hp motor that delivers a maximum speed of 4,200 rpm for fast job completion. This Powermatic PM1000 table saw has a pawl system to prevent kickback. The Poly-V belt transmits power efficiently and also runs quietly so you can work in greater comfort. Its Accu-Fence is strong and straight to give you more precise results. You can change the woodworking table saw’s blades with just one hand thanks to the arbor lock design. The 7-inch wheels are designed with ergonomics in mind so you can make adjustments without hand strain.
Features
Powermatic PM1000 table saw comes with fence, riving knives and miter gauge
Cuts through wood to resize pieces for use in any project
Single-phase table saw’s 1-3/4hp motor achieves a top speed of 4,200 rpm
Pawl system prevents kickback for added safety
Woodworking table saw’s Poly-V belt provides efficient power transmission
Machine runs relatively quiet
Accu-Fence is rigid to stay straight for more accurate results
Arbor lock design makes it easy to change out blades
Ergonomic handwheels prevent strain
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791000K
Amperage (A)
30
Arbor Size (in)
0.625
Assembled Weight (lbs)
417.8
Bench or Stationary
Stationary
Blade Diameter (in)
10
Blade Material
N/A
California Proposition 65 Warning Required
Yes
Color / Finish
See Photo
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Diameter
10 in
Drive Motor System
Electric
Dust Port
Yes
ETL Listed
No
Fence Included
Yes
Horsepower (hp)
1.75
Internal Supplier Part #
PM1000
Internet Product Code (IPC)
5A9B241A7A1
Manufacturer Warranty
5 Year
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
0.8125
Miter Gauge
Yes
Net Tool Weight (lbs)
346.8
Package Depth
42
Package Height
53
Package Weight
417.8
Package Weight (lbs)
417.8
Size
0.625 in
Spindle Lock
Yes
Table Height (in)
34.25
Table Height From Floor (In)
34.25
Table Length (in)
27
Table Material
Cast Iron
Table Width (in)
20
UL Listed
No
Voltage
115/230 Volts
