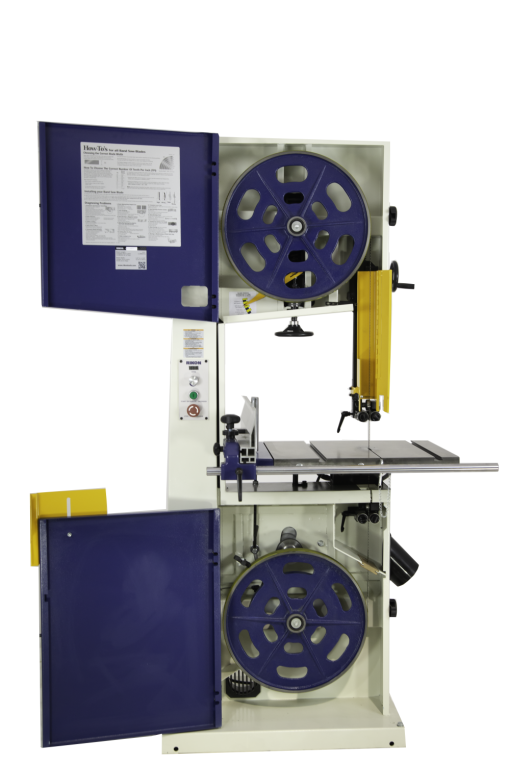

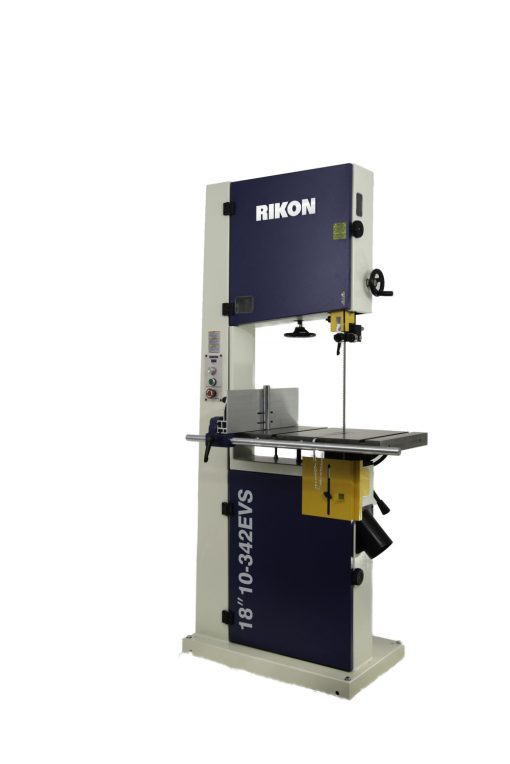

Rikon Band Saw 18″ 2.5 HP with Electric Variable Speed

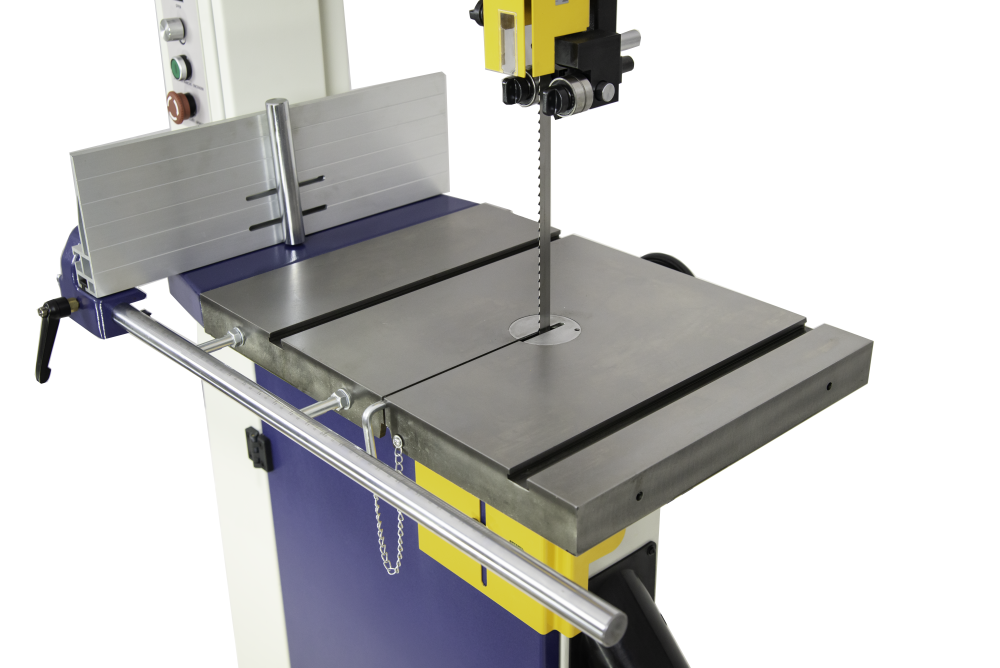

18 In. Bandsaw 10-342 is Rikon’s newest model with many patent pending features that professionals will enjoy – including spring-loaded tool-less blade quids, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window. 2.5 HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts. Includes 6 In. tall rip fence with re-saw bar and electronic variable speed.
Features
Rugged welded steel column and frame
Balanced cast iron drive wheels
Bandsaw capacity 13 In.

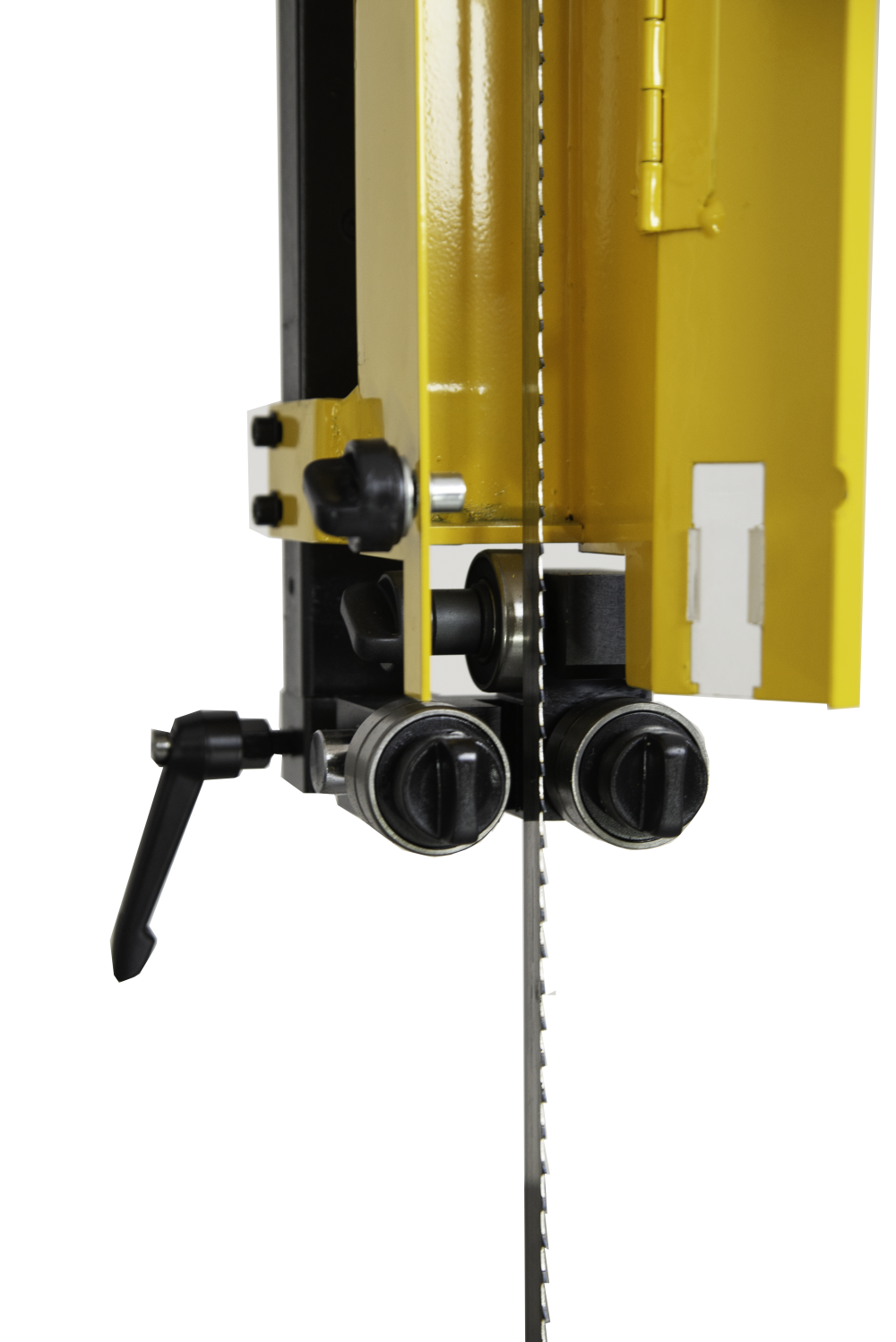

Precision guide bearings
Variable blade speed settings 92 – 3280 ft/min

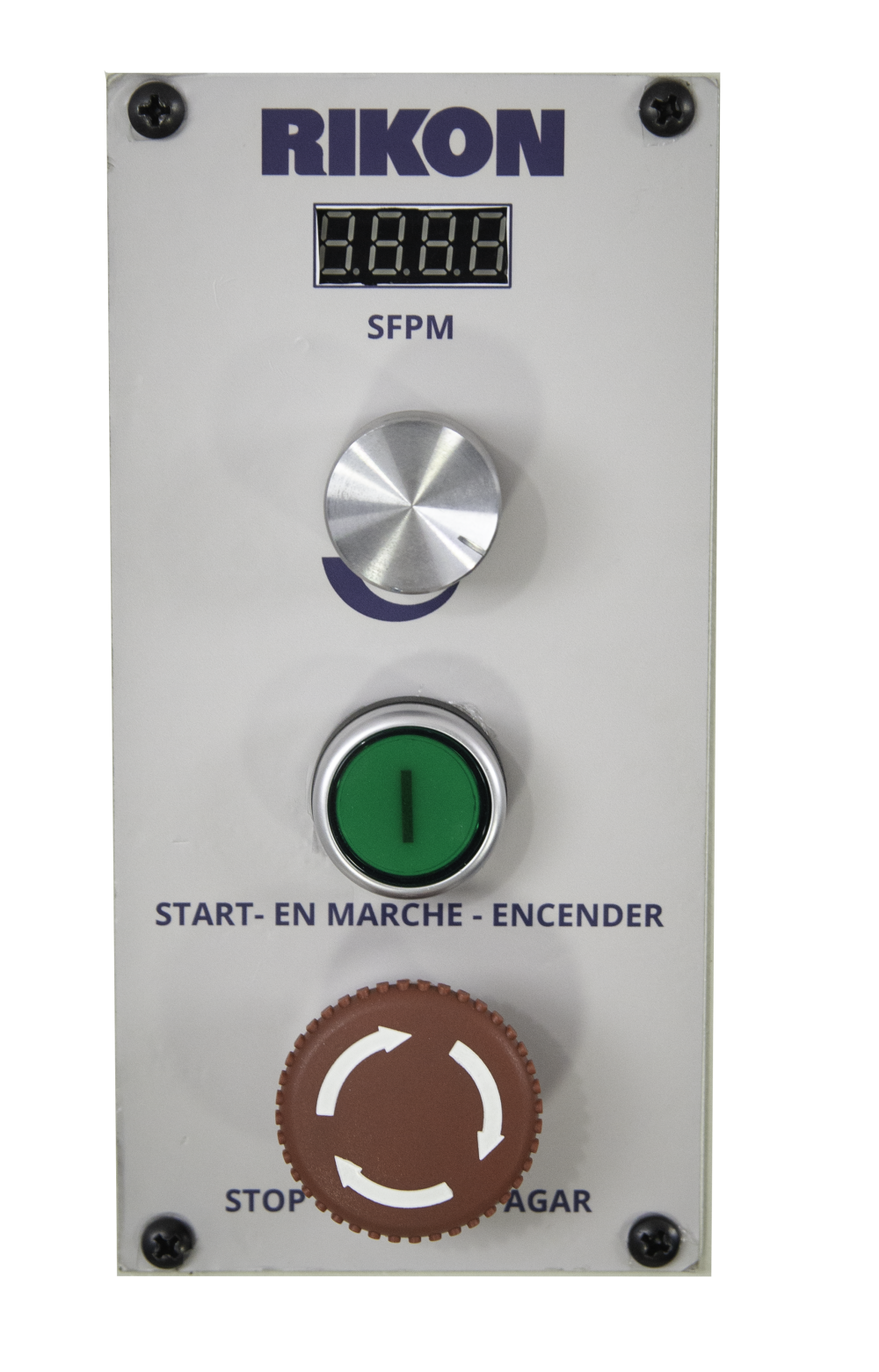

Digital readout for viewing blade speed
2.5 HP motor is computer monitored for continuous power and torque
Quick-release blade tension system
Rack and pinion upper guide adjustments
Specifications
Acme Tools Brand Name
RIKON
Acme Tools Part Number
10-342EVS
Amperage (A)
7.5
Assembled Depth (in)
48
Assembled Height (in)
75
Assembled Weight (lbs)
403
Assembled Width (in)
33
Band Saw Frame Material
Steel
Band Saw Type
Stationary
Blade Guide Type
Bearings
Color/Finish
Blue
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
China
Cutting Capacity Height (in)
13.0
Diameter
1/4 in
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
Yes
Fence Included
Yes
Height (in)
75
Horsepower (hp)
2.5
Material
Cast Iron
Maximum Blade Length (In)
153.0
Maximum Blade Width (In)
1.38
Maximum Feet Per Minute
3280
Micro Adjust Blade Guides Bottom
No
Micro Adjust Blade Guides Top
No
Minimum Blade Length (in)
153.0
Minimum Blade Width (in)
0.25
Minimum Feet Per Minute
92
Motor Type
TEFC
Package Depth
52
Package Height
80
Package Weight
403
Phase
Single Phase
Quick Tensioning System
Yes
Rack & Pinion Guide Post Adjustment
Yes
Saw Type
Stationary
Saw Wheel Material
Cast Iron
Speeds
92-3280
Stand Included
Yes
Table Height (in)
35.5
Table Height From Floor (In)
35.5
Table Length (in)
15.75
Table Material
Cast Iron
Table Tilt Left (Deg)
-10.0
Table Tilt Right (Deg)
45.0
Table Width (in)
21.5
Thrust Bearing Contact Point
Edge
Tire Cleaning Brush
Yes
UL Listed
No
Variable Speed
Yes
