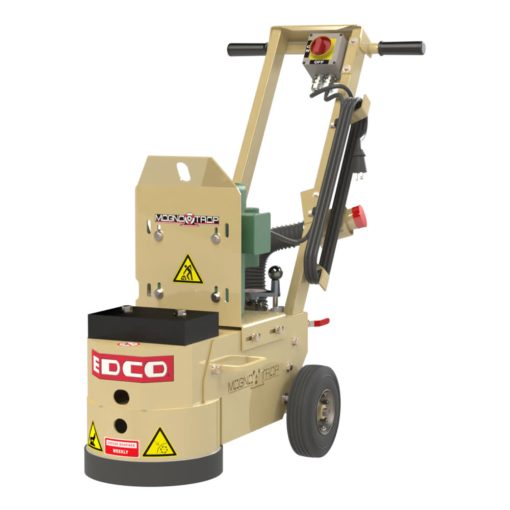

SEC-NG 1.5 HP 115/230V Single-Disc Floor Grinder
The modern day Concrete Floor Grinder was invented and is constantly improved by EDCO. The Magna-Trap® Floor Grinders combine leveling systems, better dust control, and new accessories to create superior surface preparation machines.
Features
GRIND WEDGE-LESS: The need for wooden wedges goes away with EDCO’s NEW Magna-Trap® Slide-On Tooling
GRIND LEVEL: Using EDCO’s exclusive Leveling System Hand Wheel you can adjust the machine’s height, use a wide range of accessories, and truly grind level. Level grinding is quicker, smoother, easier on the operator , and increases accessory life
VELCRO DUST SHROUD: This new heavy-duty Velcro Dust Shroud makes dust prevention easier. Simply readjust the shroud according to the height of the accessory being used
Extra Weight Standard: This bolted-on weight tray helps the machine work. Use when needed
Multi-Vac port for use with 2″ or 3″ vacuum hose
11″ working width will grind approximately 200-250 sq.ft. per hour at 1/32″ with EDCO Magna-Trap® Dyma-Dots
Electric machine plugs into dedicated residential wall outlets
Includes 1 magnetic multi-accessory disc, which accepts Dyma-Serts, Strip-Serts and all other Magna-Trap® accessories. 3 grinding accessories required per loading
EDCO’s Vortex 200 Vacuum System suppresses all the dust created by EDCO Grinders
Specifications
Acme Tools Brand Name
EDCO
Acme Tools Part Number
59800
Assembled Depth (in)
44
Assembled Height (in)
39.75
Assembled Weight (lbs)
188
Assembled Width (in)
22
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
United States
Grinder Wheel Size (In)
11
Grinding Speed (rpm)
575
Height (in)
39.75
Horsepower (hp)
1.5
Maximum RPM
575
Number of Grinder Heads
1
Package Depth
44
Package Height
39.75
Package Weight
189
Package Weight (lbs)
189
Recommended Safety Equipment
Protective Eyewear
