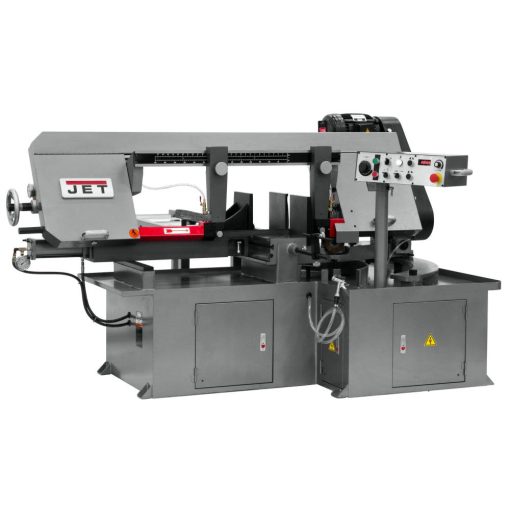

Semi-Automatic Dual Mitering Bandsaw 3HP 230V, 3-PH
Jet dual mitering horizontal bandsaws unique design head dual miters both left and right for quick angle cuts. The frequency inverter, unique to this saw, allows this EVS saw a full range of blade speeds.
Features
Heavy duty construction reduces vibration and deflection

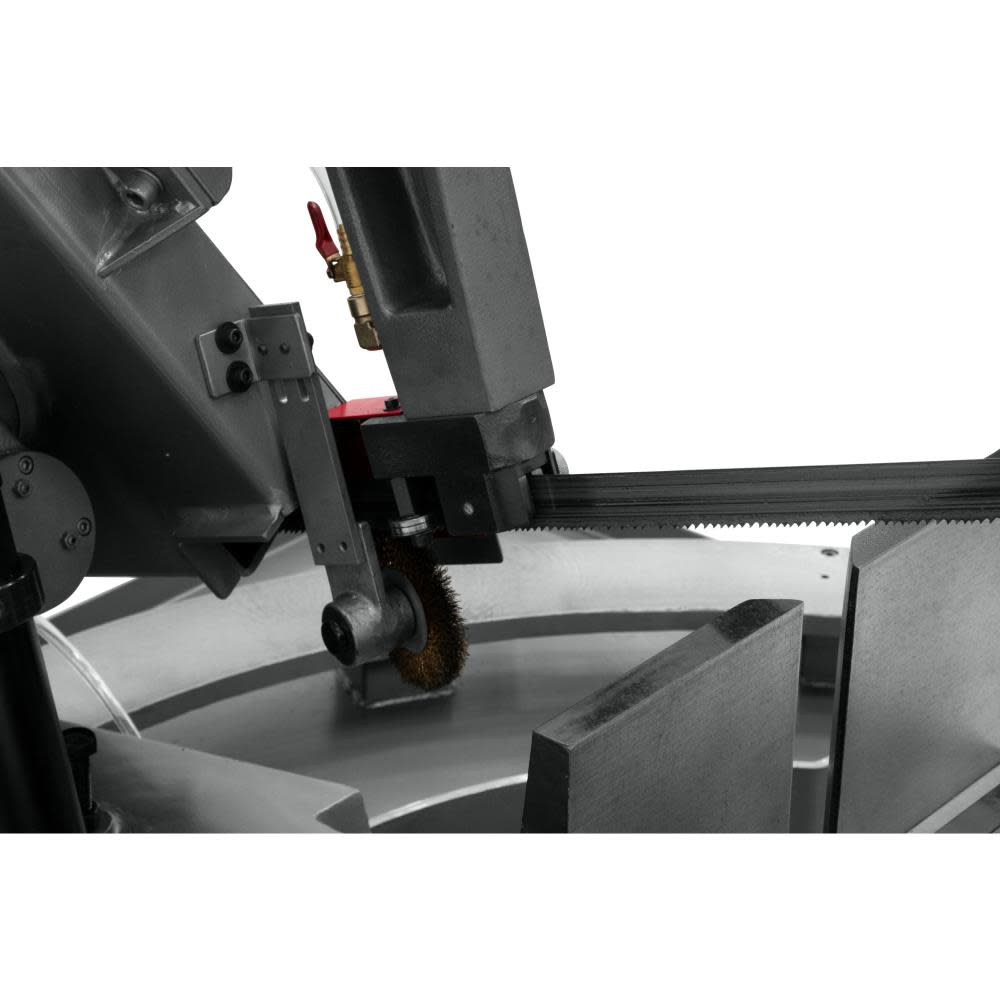

Built in, self propelled blade brush prevents chip build up in blade guides
Blade tension gauge helps to ensure the blade is in the correct cutting position
Magnetic starter for low voltage and lost phase protection
Automatic blade breakage sensor detects accidental breakage and interrupts the power
Power switch with safety key prevents accidental start up
CSA/CUS certified
Blade is fully guarded for operator safety
Automatic shut off switch stops the sawing process
Semi-automatic bow raises after cut to predetermined height
Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
Integrated pressurized wash hose for easy machine clean up

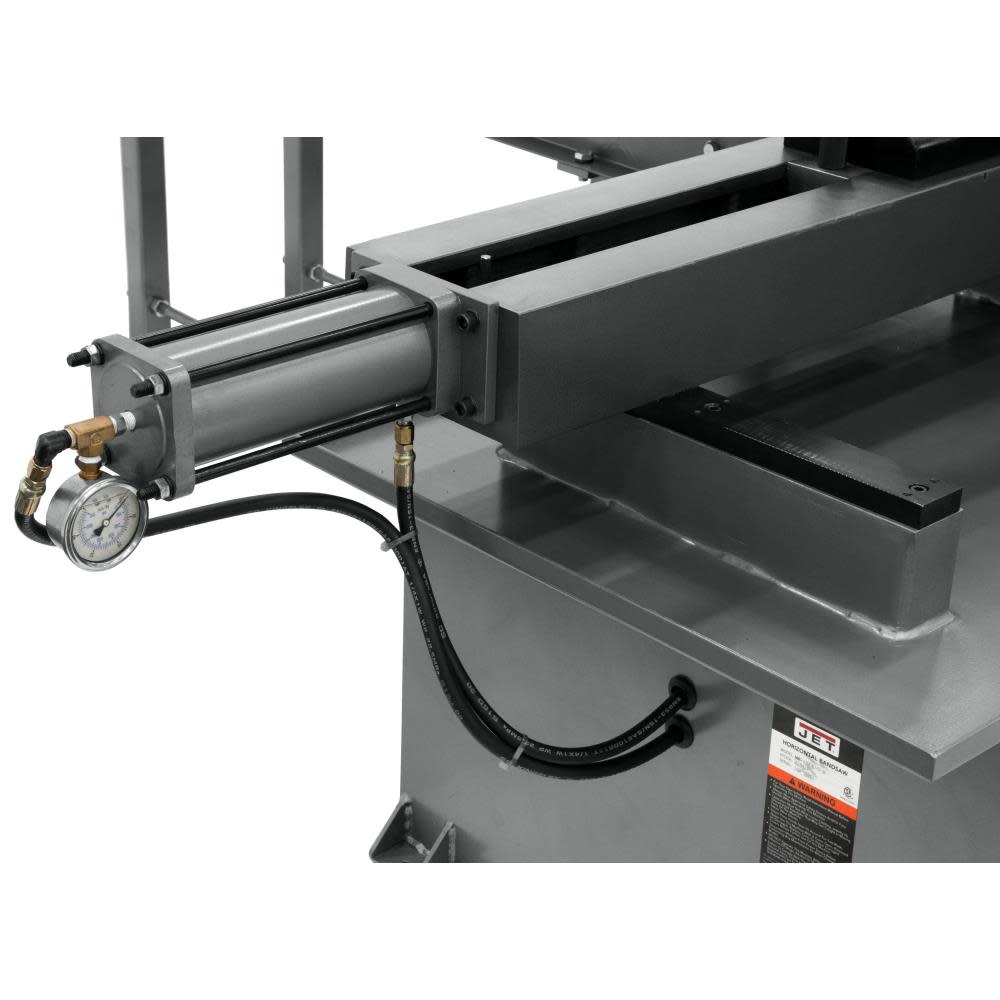

Hydraulic Vise for rapid clamping of material on 13″ saw
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
413412
Amperage (A)
20
Assembled Weight (lbs)
1826
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Metal
Cordless / Corded
Corded
Country of Origin
Taiwan
Dust Port
No
ETL Listed
No
Horsepower (hp)
3
Internet Product Code (IPC)
7715943CFD9
Manufacturer Warranty
2 year
Material
Cast Iron
Maximum Blade Length (In)
172
Maximum Blade Width (In)
1.25
Maximum RPM
1720
Minimum Blade Width (in)
1.25
Package Depth
89.76
Package Height
63
Package Weight
2090
Package Weight (lbs)
2090
Speeds
297
Table Length (in)
17
Table Material
Cast Iron
Table Width (in)
7.6
UL Listed
No
Variable Speed
Yes
Voltage
230 Volts
