Description

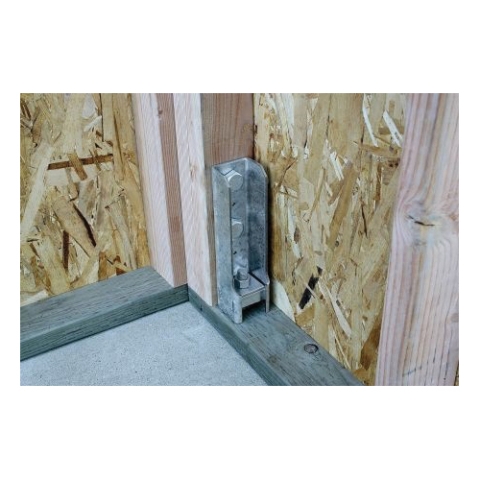

The HD5B bolted holdowns incorporate the proven design of our HDQ8 SDS-style holdown and feature a unique seat design which greatly minimizes deflection under load. HDB holdowns are self-jigging, ensuring that the code-required minimum of seven bolt diameters from the end of the post is met. They can be installed directly on the sill plate or raised above it and are suitable for back-to-back applications where eccentricity is a concern. HDBs are designed to provide loads for intermediate-load-range shear walls, braced-wall panels and lateral applications.
| Depth | : | 2-1/2 in |
| Finish | : | Galvanized |
| Length | : | 9-3/8 in |
| Material Gauge | : | 10 ga |
| Material | : | Steel |
| Width | : | 2-1/2 in |
