Description

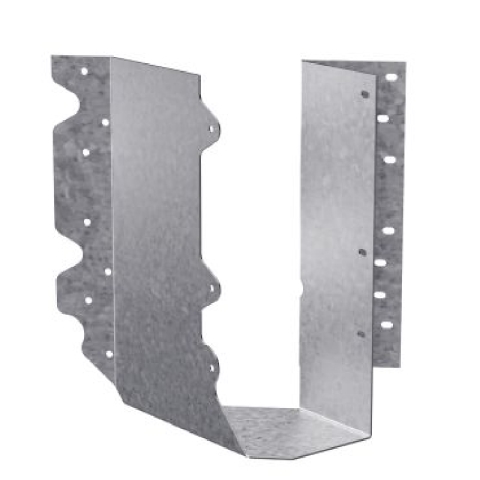

The SUR series are 45 deg skewed hangers designed specifically to ease the installation of single and double I-joists. In addition to featuring positive-angle nailing, these hangers encapsulate the top flange of the I-joist, so no web stiffeners are required for standard installation. The full range of 45 deg skewed hangers feature round nail holes on the acute side, allowing nails to be easily installed parallel to the joist. Installation is further simplified with no required bevel cuts.
| Depth | : | 2-5/8 in |
| Fastener Size | : | 16d, 16d x 2-1/2 in |
| Fastener Type | : | Nail |
| Finish | : | Galvanized |
| Height | : | 8-11/16 in |
| Material | : | Steel |
| Skew Angle | : | 45 deg |
| Width | : | 3-1/8 in |
