Description

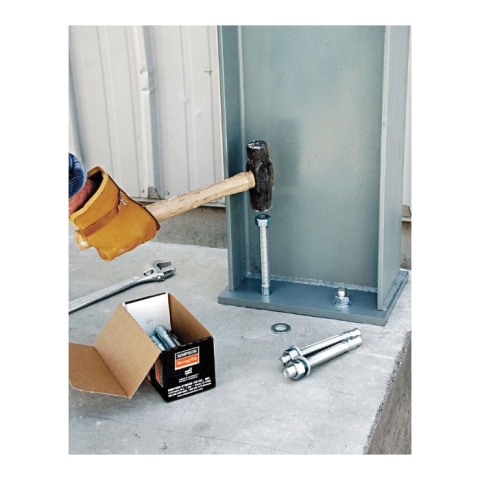

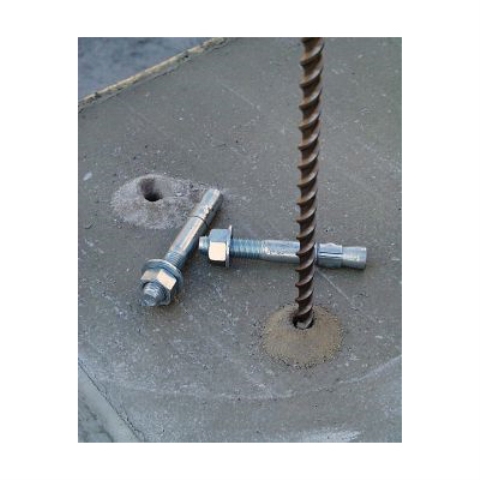

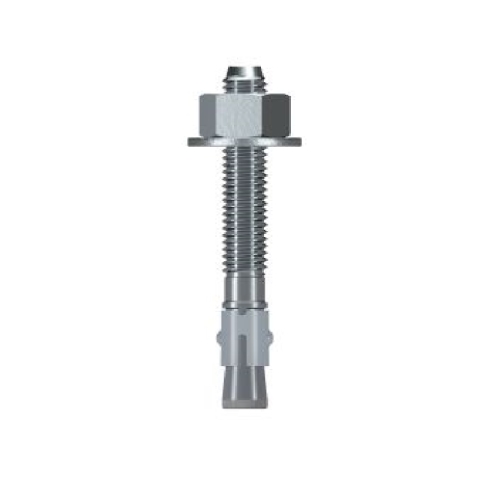

A non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled masonry. The Wedge-All wedge anchor is available in carbon steel with zinc or mechanically galvanized coating, as well as types 303/304 and type 316 stainless steel. Threaded studs are set by tightening the nut to the specified torque. The Wedge-All is code listed for grout-filled masonry applications.
| Diameter | : | 1/2 in |
| Drill Size | : | 1/2 in |
| Finish | : | Zinc-Plated |
| Length | : | 3-3/4 in |
| Material | : | Carbon Steel |
| Minimum Embedment Depth | : | 2-1/4 in |
| Shear Strength | : | 5575 lb |
| Tensile Strength | : | 70, 000 psi |
| Thread Length | : | 2-5/16 in |
