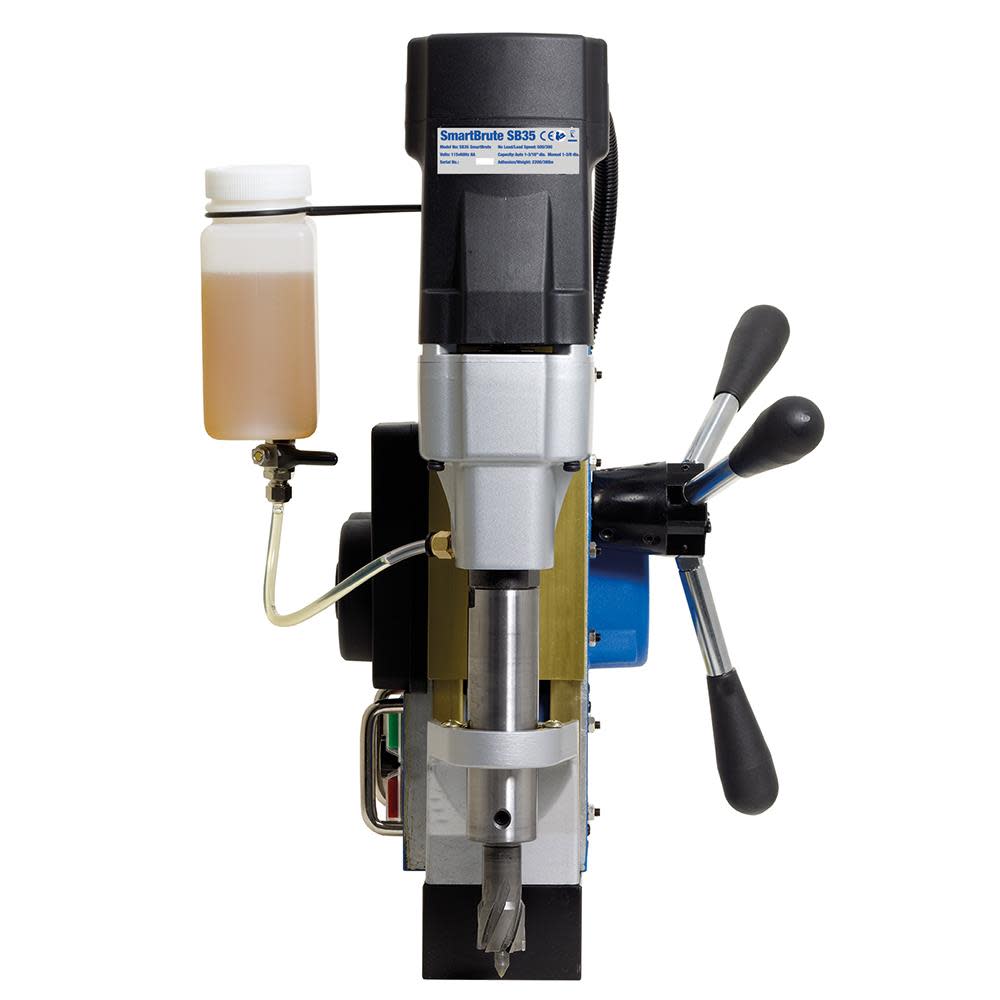

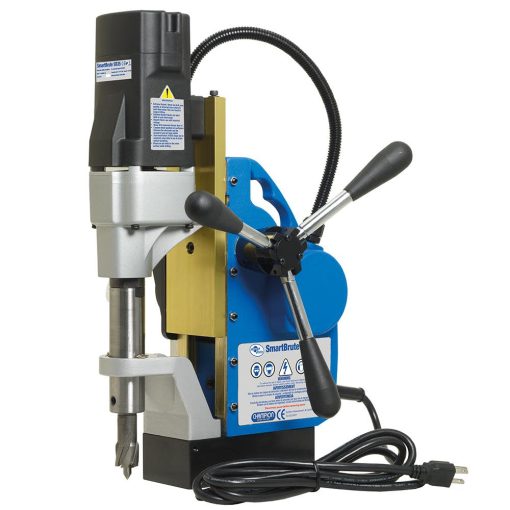

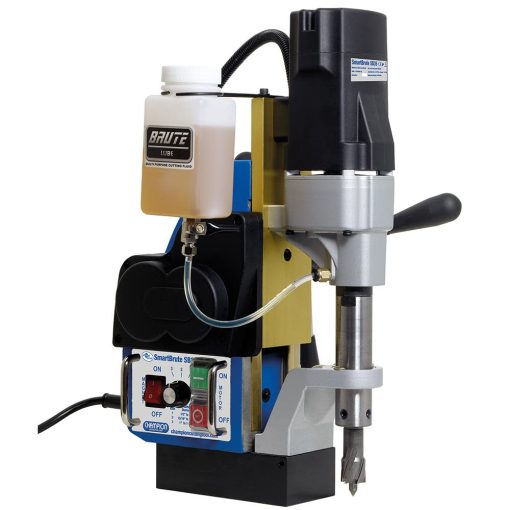

Smart Brute Magnetic Drill Press
Drill perfect holes every time using the SB35 smart brute mag drill. The smart, auto-feed feature drills fast and accurate holes for increased productivity on the job. Consistent drilling saves time and money by optimizing the life of your mag drill and annular cutters.
Features
Smart: automatic power feed technology increases productivity due to consistent drilling and longer tool life
Safe: cycle stop sensor shuts off motor automatically after hole is cut
Fast: controlled feed rates optimize tool life so you can get your job done faster
Flexible: can be used in auto or manual mode
Optimize performance of the your mag drill: use RotoBrute carbide tipped annular cutters and brute lube fluid
Auto-feed capacity: 1-3/16″ diameter x 1-3/4″ depth of cut
Manual feed capacity: 1-3/8″ diameter x 2″ depth of cut
Specifications
Acme Tools Brand Name
CHAMPION CUTTING TOOL
Acme Tools Part Number
SB35C1
Amperage (A)
10
Assembled Weight (lbs)
36
California Proposition 65 Warning Required
Yes
Chuck Capacity
3/4″ Shank
Chuck Design
Keyed
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
Yes
Drill Press Type
Portable
Height (in)
19
Integrated Laser Guide
No
Internal Supplier Part #
SB35
Internet Product Code (IPC)
0E4BBA7796B
Length (in)
14
Manufacturer Warranty
1 Year
Net Tool Weight (lbs)
36
Package Contents
carrying case, magnetic drill, safety chain, 8mm wrench, 2.5mm hex key, 4mm hex key, safety guard, coolant tank, 3/4″ arbor
Package Weight
45
Package Weight (lbs)
45
Speed Range High (rpm)
550
Speed Range Low (rpm)
550
Speeds
550
Spindle Travel (in)
3
UL Listed
Exempt
Voltage
110 Volts
Width (in)
12
