Description

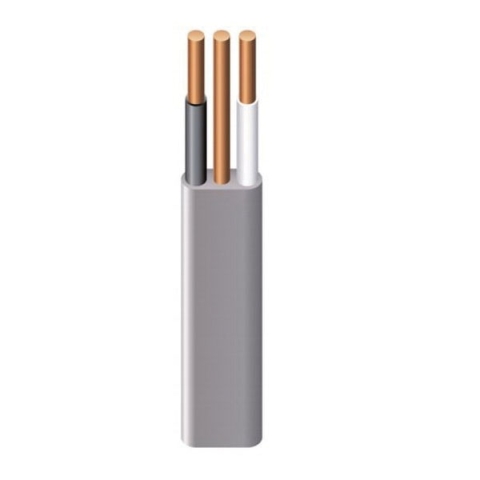

Southwire copper UF-B cable is generally used as feeder to outside post lamps, pumps and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90 deg C (with ampacity limited to that for 60 deg C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 V.
| Conductor Insulation | : | PVC |
| Conductor Material | : | Copper |
| Length | : | 100 ft |
| Number Of Conductors | : | 2 |
| Operating Temperature | : | 90 deg C |
| Sheath Color | : | Gray |
| Sheath Diameter | : | 518 x 215 mil |
| Sheath Material | : | Nylon |
| Stranded/Solid | : | Solid |
| Strands per Conductor | : | 1 |
| Type | : | UF-B |
| Voltage Rating | : | 600 V |
| Wire Size | : | 10 AWG |
