Description

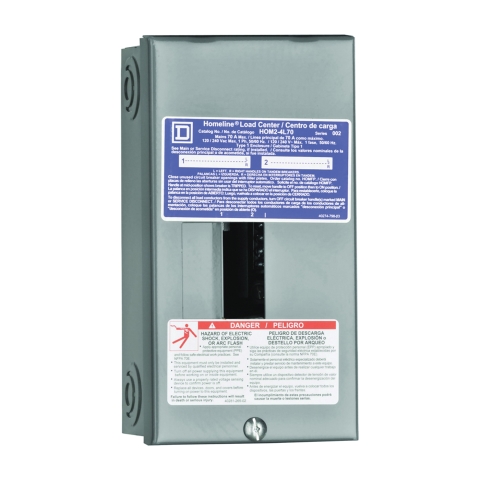

Main lug indoor load center, 70 A, 2 space/4 circuits. Maximum SCCR of 10,000 and a maximum load of 240 V. NEMA type 1 enclosure. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
| Breaker/Load Center Type | : | Main Lug |
| Bus Bar Material | : | Aluminum |
| Buss Bar Material | : | Aluminum |
| Cable Size | : | #12 to 3, #14 to 4 AWG |
| Color | : | Gray |
| Cover/Lid Type | : | Surface |
| Current Rating | : | 70 A |
| Enclosure Material | : | Welded Sheet Steel |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Baked Enamel |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug |
| Number Of Circuits | : | 4 |
| Number of Phases | : | 1 |
| Number of Spaces | : | 2 |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 3-Wire |
