Description

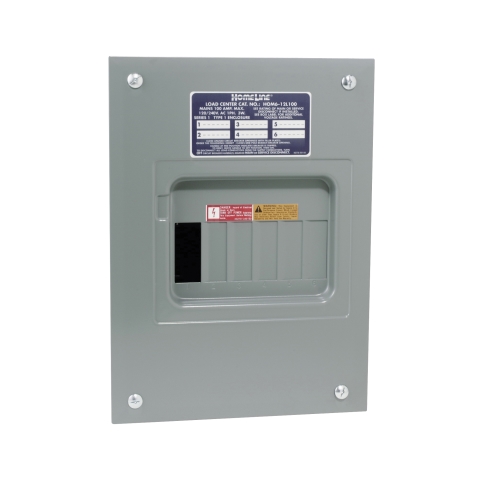

Main lug indoor load center, 100 A, 6 space/12 circuit. 1-1/2 in knockouts in the top and bottom end walls to allow for use with either overhead or underground fed electrical wiring. 22,000 short circuit current rating (SCCR) and can be fitted with a secondary surge arrestor (not included) for added protection. Single phase, 3-wire, solid neutral. UL listed.
| Breaker/Load Center Type | : | Main Lug |
| Bus Bar Material | : | Aluminum |
| Buss Bar Material | : | Aluminum |
| Cable Size | : | #8 to 1 AWG |
| Color | : | Gray |
| Cover/Lid Type | : | Flush |
| Current Rating | : | 100 A |
| Enclosure Material | : | Welded Sheet Steel |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Baked Enamel |
| Interrupt Rating | : | 10 kA |
| Mounting Type | : | Plug |
| Number Of Circuits | : | 12 |
| Number of Phases | : | 1 |
| Number of Spaces | : | 6 |
| Voltage Rating | : | 120/240 V |
| Wiring Configuration | : | 3-Wire |
