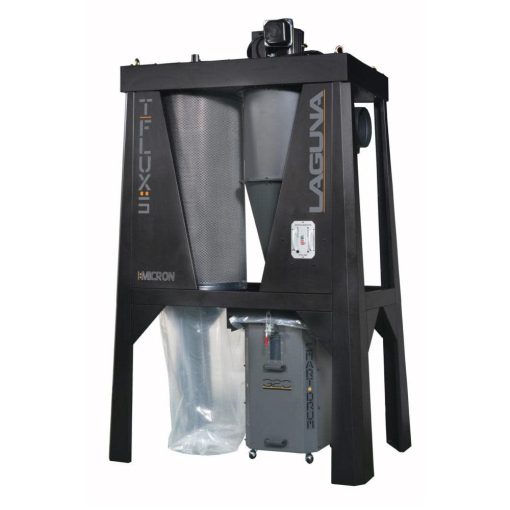

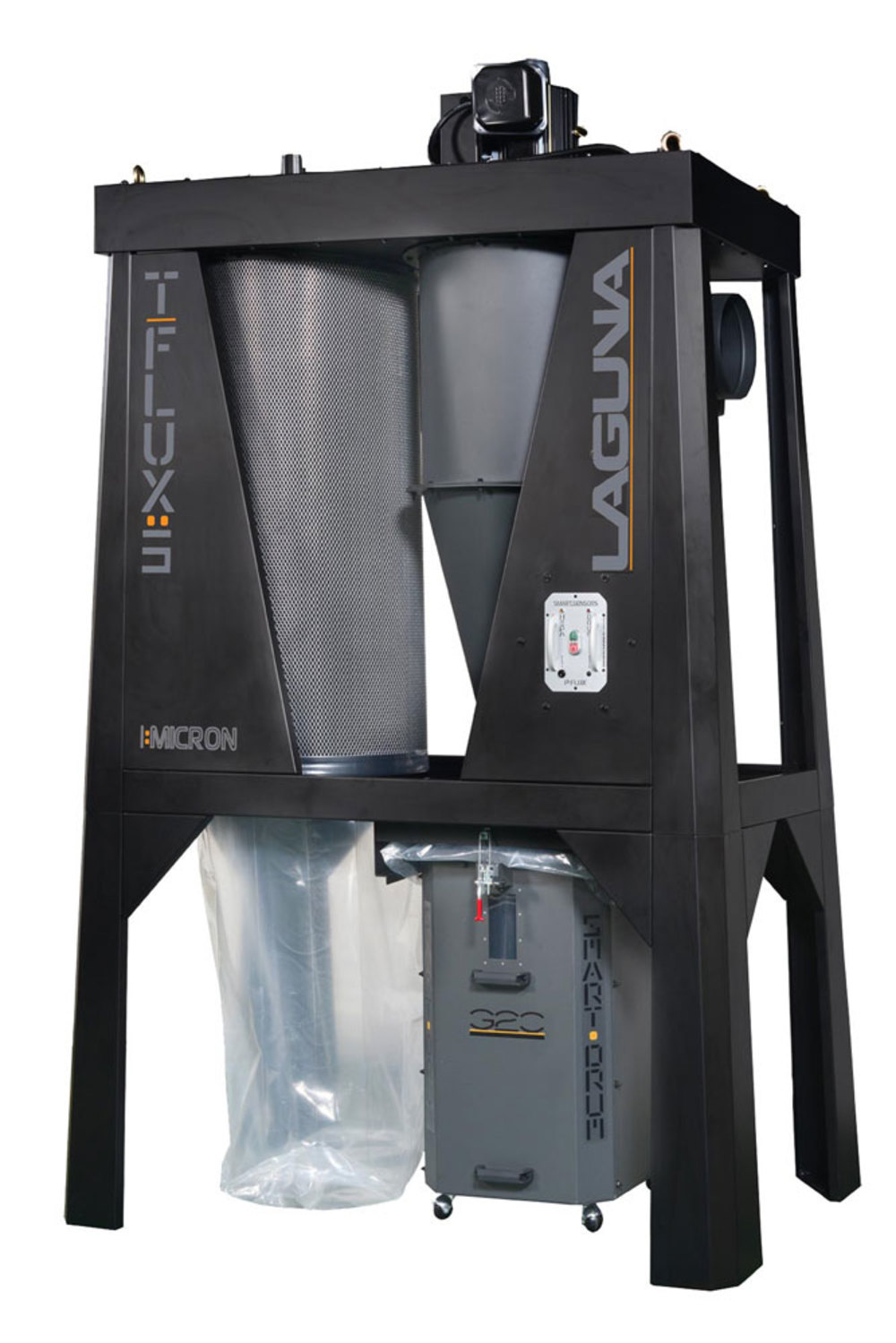

T|Flux:5 Dust Collector
The T|flux series from Laguna starts to get serious. The titan cyclones are geared towards clients who desire a single central unit for the entire shop. The cyclones are equipped with a 10 In. port that splits into 3 x 4 In., allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations. All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart drums comes standard with high quality casters and feature our unique quick disconnect design.
Features
Motor HP 5 HP, phase 1, voltage 220
Amps 22.4 A, hertz 60, plug no
RPM 3450, high frequency hand held remote control
Nominal CFM 4295, inlet diameters 10″
Max static pressure (inches of water) 12.1″
Impeller/fan size 16″
Impeller material steel
Impeller type radial fin
Balanced to: ISO 1940
Canister diameter 600 mm (23.62″)
Canister length: 1200 mm (47.24″)
Canister cleaning: auto clean (gear motor)/cleans every hour 10 sec clockwise, 10 sec counter-clockwise
Switch type: sunken radio frequency remote switch with LED full drum & LED filter dirt detection
Drum capacity: 54 gal.
US/CSA approved: yes

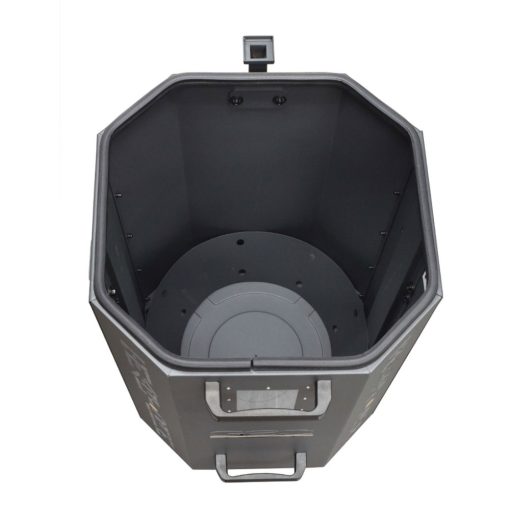

Octagon drum: low pressure suction
Drum collection bag (Dis. x L): plastic bag (740 x 1300 mm L)
Canister filter type: black 1 micron
Filtration efficiency: 0.2-2micron @ 99.97%
Filter surface area: 15 m²/ 162 ft²
Canister filter lower dust collection: plastic bag (610 x 600 mm L)
