Description
Product Information
SKU214189
Mfr Part#PS-TPG-0650FPCG
UPC841163066737
General Specifications
Cooling Fans:140mm Fan with RGB Illumination
Series:Toughpower Grand
Wattage:650 Watts
Form Factor:ATX
Color:Black
Material:Metal
LED Color:RGB
ATi CrossFire:CrossFire Compatible
NVIDIA SLI:SLI Compatible

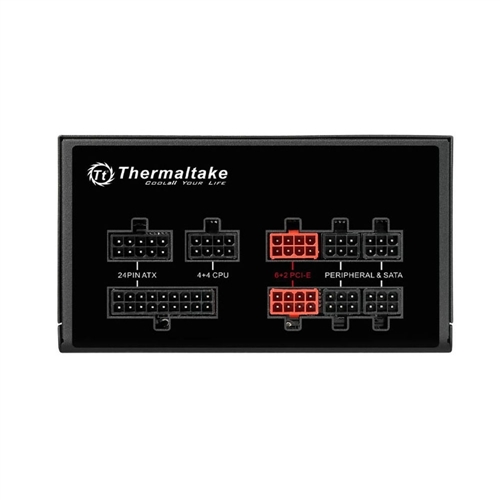

Drive/Power Connectors

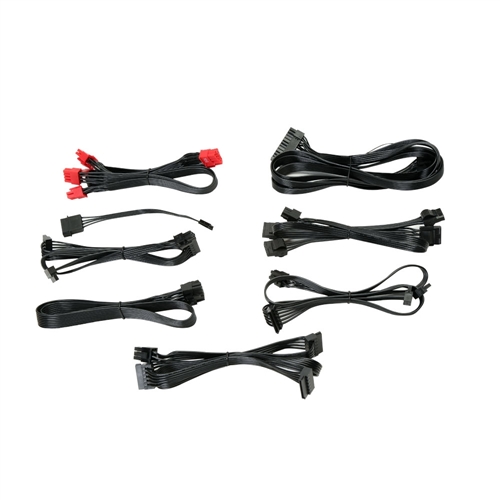

Wiring Type:Fully Modular Cable Design
Modular:Fully-Modular
ATX Connector:24-pin
ATX 12V Connector:1 x 4+4-pin
Graphics Connector:4 x 6+2-pin
Molex Connector:4
SATA Connector:9
Floppy Connector:1
Power Specifications
ATX Compliance:ATX 12V 2.4; EPS 2.92
PFC:Active
Rating:80 PLUS Gold Certified
Energy Efficiency:> 90% Typical
Input Voltage:100V/240V
Input Frequency Range:50Hz – 60Hz
Input Current:10A @ 100VAC / 10A @ 240VAC
Hold-up Time:16ms at Full Load
+12V Rails:1
Combined +12V Rating:650 Watts (54.2A)
Protection:OVP, SCP, OPP, UVP, OTP, OCP
Physical Specifications
Power Supply Depth:6.30 in. (160.02 mm)
Width:5.91 in. (150.00 mm)
Height:3.39 in. (86.00 mm)
MTBF:120,000 Hours
Safety Standards:BSMI, CCC, CE, cTUVus, EAC, FCC, TUV SUD
Package Contents
What's in the Box:Power Supply, Cables, Product Manual
Warranty
Parts:10 Year
Labor:10 Year
