Description
Product Information
SKU366369

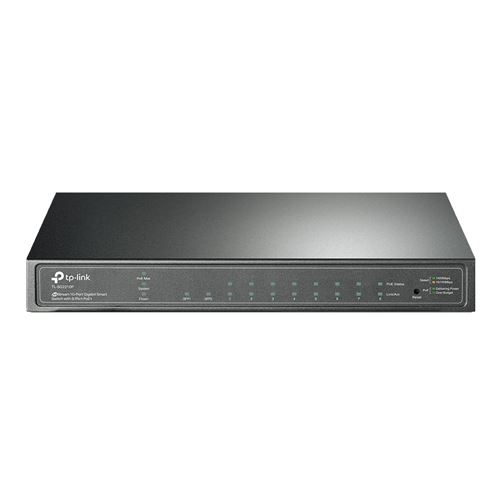

Mfr Part#TL-SG2210P
UPC845973088668
Specifications
Status Indicators:Power
Link/Activity
PoE Max
System
Features:QoS
VLANs
SFP
PoE+
Network Management:Managed
Rack Mountable:No
Stackable:Yes
Type:Switch
MAC Address Table:8K MAC Address Table
Priority Queues:8 Queues
Jumbo Frames:9216 Bytes
Data Transfer Rates
Half-Duplex Data Transfer Rate:10Mbps, 100Mbps, 1000Mbps
Network Speeds:10/100/1000Mbps
Compliant Standards (Wired):IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at
Connector Type:RJ-45, SFP
Switching Method
Switching Method:Store-and-Forward
Switch Bandwidth:20 Gbps
Max Forwarding Rates:14.88 Mpps
Managed Options
Security Protocols:Locked MAC Addresses
QoS: Port-based
QoS: 802.1p-based
Secure Shell
Secure Sockets Layer
DHCP Snooping
Port Trunks:6 groups per device, 4 ports per group
Ports & Connectors
Port Types:PoE
SFP
RJ45
Network Ports and Connectors:(8) 10/100/1000 RJ-45 Ports, (2) SFP Ports
Power
Power Supply:100-240 VAC, 50/60Hz
Physical Specifications
Operating Temperature Range:0 – 40 C (32 to 104F)
Depth:4.96 in. (126.00 mm)
Height:1.02 in. (26.00 mm)
Width:8.23 in. (209.00 mm)
Weight:3.44 lbs. (1.56 kg)
Operating Humidity Range:10 to 90% Noncondensing
Warranty
Parts:Lifetime Limited
Labor:Lifetime Limited
Package Contents
What's in the Box:1 x TL-SG2210P, 1 x Power Adapter, 1 x Installation Guide, 1 x Resource CD, 1 x Rubber Feet
