Description
Product Information
SKU276162
Mfr Part#TL-SG1024D
UPC845973020620
Specifications
Rack Height:1U
Status Indicators:Power
Link/Activity
Features:QoS
Network Management:Unmanaged
Rack Mountable:Yes
Rack Mounting Kit:Included
Stackable:No
Type:Switch
MAC Address Table:8K MAC Address Table
Jumbo Frames:10 KB
Layer:Layer 2
Data Transfer Rates
Half-Duplex Data Transfer Rate:10/100/1000Mbps
Network Speeds:20/200/2000Mbps
Compliant Standards (Wired):IEEE 802.3 i/u/p/x
Connector Type:RJ-45
Switching Method
Switching Method:Store-and-Forward
Switch Bandwidth:48 Gbps
Max Forwarding Rates:35.7 Mpps
Managed Options
Security Protocols:Port Mirroring (Many to one)
Port Mirroring (One to one)
Ports & Connectors
Port Types:LAN
Network Ports and Connectors:24 x RJ-45 10/100/1000
Power
Power Supply:Internal 100-240 VAC, 50/60Hz
Physical Specifications
Operating Temperature Range:32 – 104 F (0 – 40 C)
Depth:7.10 in. (180.34 mm)
Height:1.70 in. (43.18 mm)
Width:11.60 in. (294.64 mm)
Operating Humidity Range:10% – 90% Non Condensing
Warranty
Parts:Lifetime Limited
Labor:Lifetime Limited
Package Contents

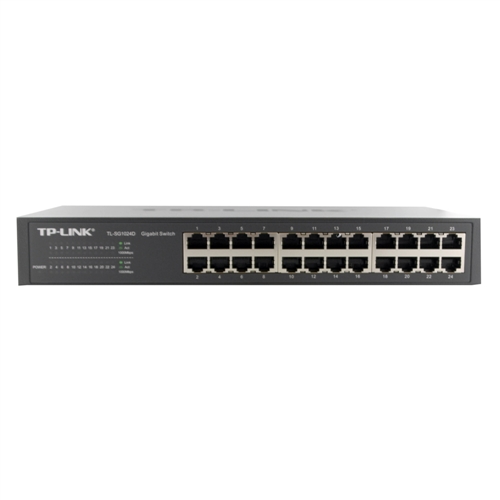

What's in the Box:24-Port Gigabit Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
