Description
Product Information
SKU455733
Mfr Part#TL-SG105E
UPC845973022037
Specifications
Status Indicators:Power
10/100M
1000M
Features:QoS
SNMP
LACP
IGMP Snooping
Port Mirroring
VLANs
Memory Buffer:2 MB
Network Management:Unmanaged
Rack Mountable:No
Stackable:No
Type:Switch
MAC Address Table:8K MAC Address Table
Priority Queues:4 Queues
Jumbo Frames:16 KB
Layer:Layer 2
Data Transfer Rates
Half-Duplex Data Transfer Rate:10/100/1000Mbps
Network Speeds:20/200/2000Mbps
Compliant Standards (Wired):IEEE 802.3 i/u/ab/x, IEEE 802.1q/p
Connector Type:RJ-45
Switching Method
Switching Protocol:CSMA/CD
Switching Method:Store-and-Forward
Switch Bandwidth:10 Gbps
Max Forwarding Rates:7.4 Mpps
Managed Options
Security Protocols:Storm Control
Port Mirroring (Many to one)
VLANs: Port-based
VLANs: 802.1Q tag-based
QoS: Port-based
Port Mirroring (One to one)
QoS: 802.1p-based
Ports & Connectors
Port Types:LAN

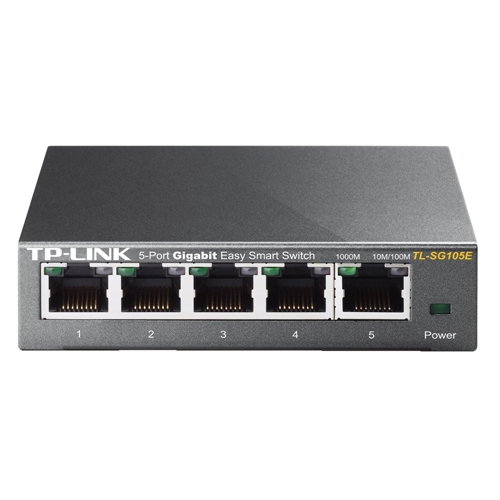

Network Ports and Connectors:5 x RJ-45 10/100/1000
Power
Power Supply:External 100-240 VAC, 50/60Hz
Physical Specifications
Operating Temperature Range:32 – 104 F (0 – 40 C)
Depth:3.93 in. (99.82 mm)
Height:1.00 in. (25.40 mm)
Width:3.93 in. (99.82 mm)
Operating Humidity Range:10% – 90% Non Condensing
Warranty
Parts:Lifetime Limited
Labor:Lifetime Limited
Package Contents

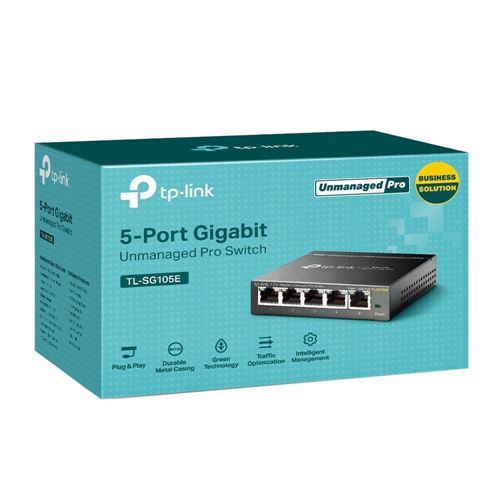

What's in the Box:TL-SG105E 5-Port 10/100/1000 Mbps Smart Switch, Power Cord, Installation Guide, Resource CD, Rubber Feet
