Description
Product Information
SKU235671

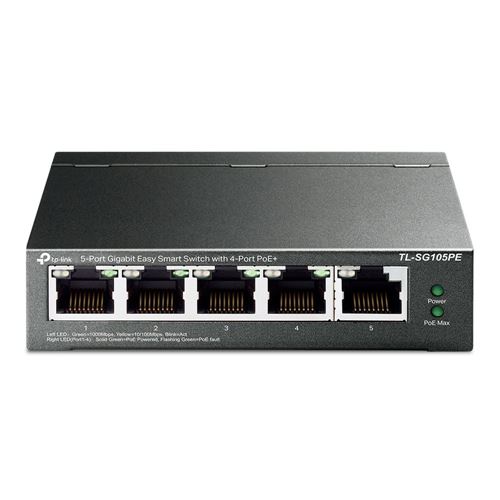

Mfr Part#TL-SG105PE
UPC845973089986
Specifications
Features:PoE
Status Indicators:PoE
10/100M
1000M
Activity
Memory Buffer:1.50Mb
Network Management:Managed
Type:Switch
MAC Address Table:2K MAC Address Table
Layer:Layer 2
Data Transfer Rates
Network Speeds:10/100/1000Mbps
Compliant Standards (Wired):IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Connector Type:RJ-45
Switching Method
Switching Protocol:Ethernet
Switching Method:Store-and-Forward
Switch Bandwidth:10 Gbps
Max Forwarding Rates:7.44 Mpps
Ports & Connectors
Port Types:PoE
RJ45
Power
Power Supply:External Power Adapter (Output: 53.5 VDC/1.3 A)
Physical Specifications
Depth:3.90 in. (99.06 mm)
Height:1.00 in. (25.40 mm)
Operating Temperature Range:32 – 104 F (0 – 40 C)
Width:3.90 in. (99.06 mm)
Operating Humidity Range:10% to 90% Non Condensing
Warranty
Parts:1 Year Limited
Labor:1 Year Limited
Package Contents
What's in the Box:TL-SG105PE, Power Adapter, Installation Guide, Rubber Feet
