Trailer Valet JX 5,000 lbs Side Mounted Drill Jack 14″ Travel
The Trailer Valet JX5-S (Swivel Pipe Mount with Bracket) is a 5K capacity trailer tongue jack. The JX5 is manual trailer jack that has the versatility to be powered using any standard 18-Volt to 20-Volt drill and the Trailer Valet Drill Attachment (sold separately) with a 5K capacity. The JX5-S can be bolted on the side of your trailer tongue with the included bracket kit. The JX5-S was created for all trailers consumers in mind, to make hitching and adjusting quick and convenient especially when you have a fully loaded trailer and do not want to always hand crank.
Features
Use included hand crank or combine with Trailer Valet Drill Attachment (TVDA -sold separately) and (18-Volt – 24-Volt) drill (sold separately) to adjust the height up and down
Zinc-rich coating, nickel plating and finished with our signature wrinkle black powder coating
Weather resistant shield protection
Patented gear material composition delivers maximum efficiency while reducing heat retention
5,000 lbs. weight rating
Sleeve fitting to offer the ultimate protection while ensuring a smooth glide every time (side mount only)

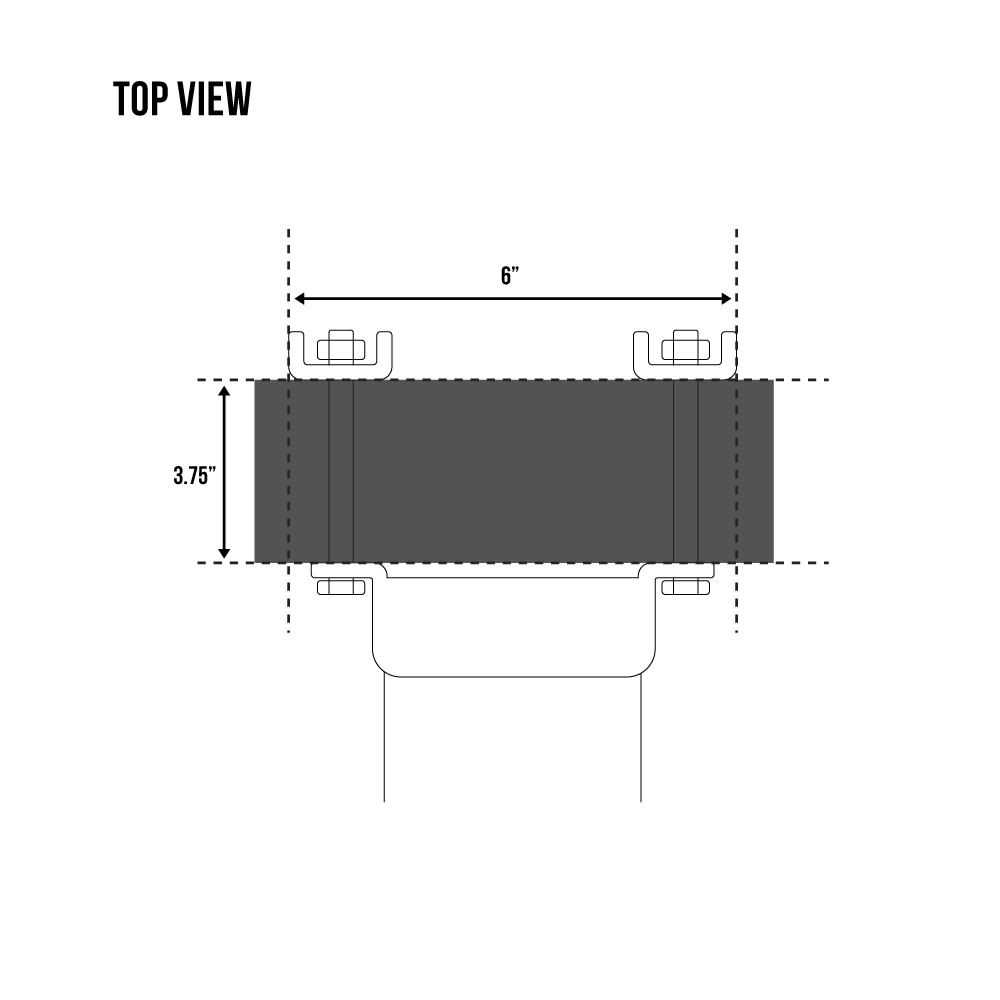

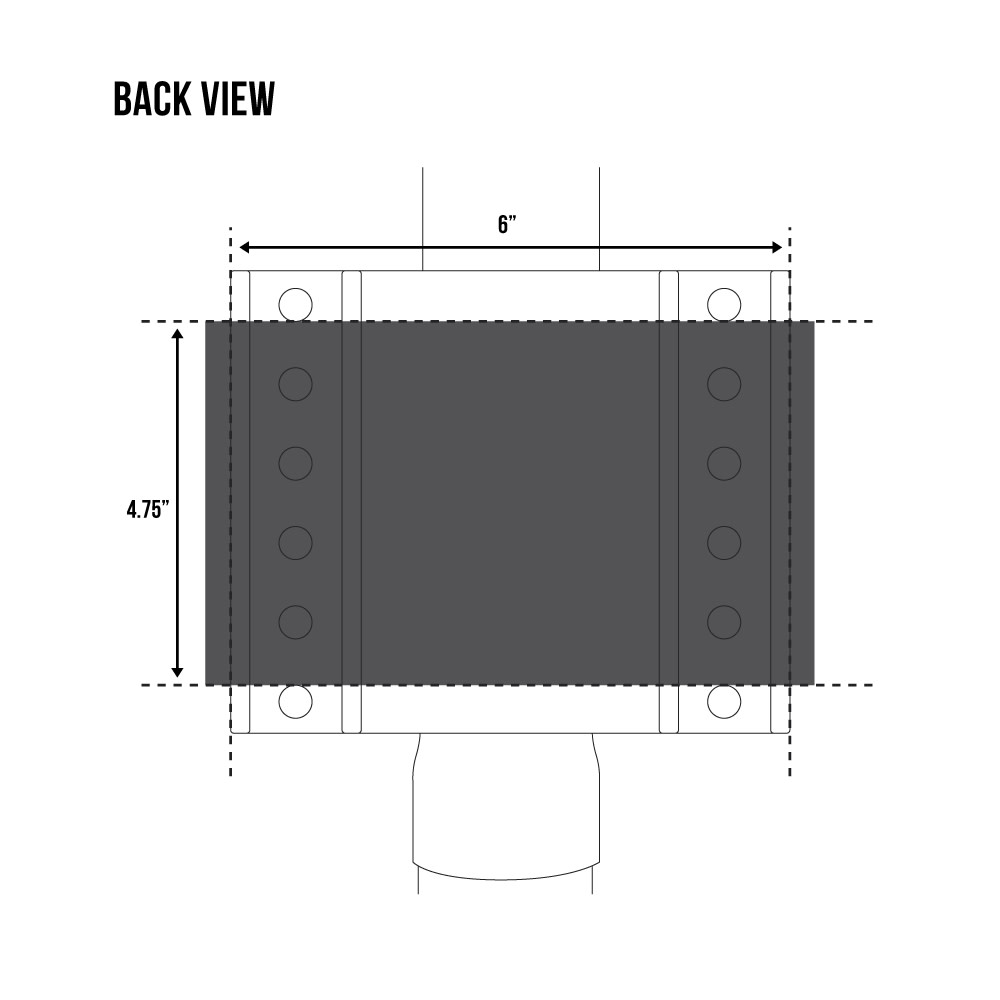

Max Frame Size Fit: 4.75 in high, 3.75 in deep
For frames from 4.75 inches to 5.75 inches use the mounting bracket option TVJLMB Sold Separately
Installation: Requires 8 in of clearance
Specifications
Acme Tools Brand Name
TRAILER VALET
Acme Tools Part Number
TVJX5-S
Assembled Weight (lbs)
30
California Proposition 65 Warning Required
No
Capacity
5000 Lbs
Capacity (tons)
2.5
Country of Origin
China
Manufacturer Warranty
Limited warranty. See owner’s manual for more details.
Package Contents
Swivel Drill Jack
Package Depth
9
Package Height
9
Package Weight
25
Package Weight (lbs)
31
