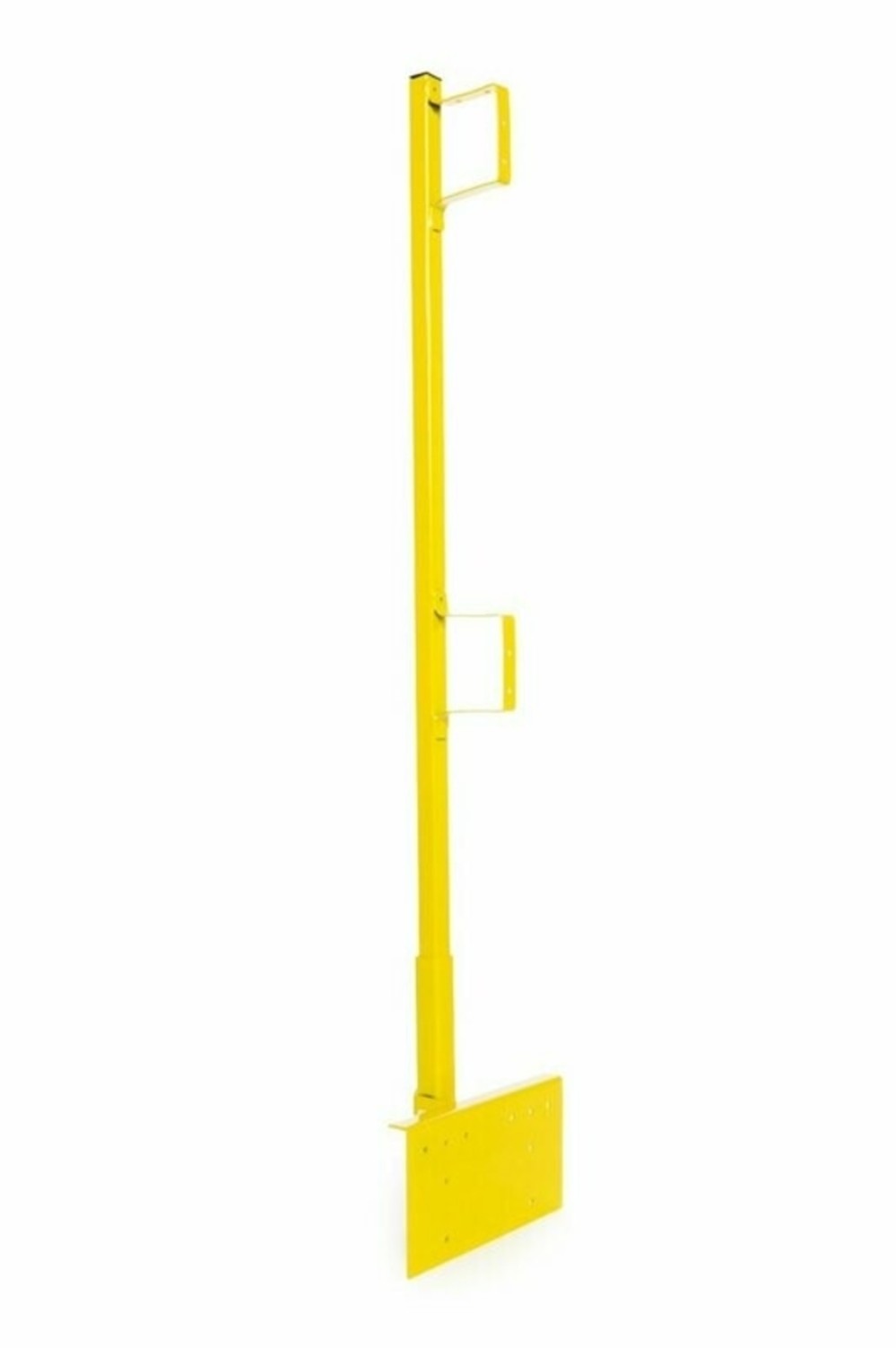

Vertical Guardrail System Bracket & Post
In 2012 Acro introduced the Vertical Guard Rail system model 12045 which is designed for fall protection on low pitch roofs, including parapet walls. This unique system is designed to be anchored on the outside of a parapet wall so that work can be done to the decking and cap without interference from the fall protection system. The 12045’s durability and versatility also makes it ideal for temporary guard railing around most openings or edges (skylights, stairwells, elevator shafts, etc). 2 x 4 construction grade lumber is used for cross rails. The design was updated in 2013 to allow for clearance of 2” parapet caps and drip edges and also to allow for post height adjustment.
Features
Capable of multiple applications including flat roofs, metal roofs, parapets, skylights, stairwells, elevator shafts, etc.
Bracket can be screwed or bolted to lumber or masonry
Attachment Plate Dimensions: 9.5” x 5.25”
System comes with bracket & post
Maximum spacing 8’ apart (used with construction grade lumber)
Complies with OSHA regulations
Powder coated safety yellow
Specifications
Acme Tools Brand Name
ACRO METAL
Acme Tools Part Number
12045
Assembled Weight (lbs)
11
California Proposition 65 Warning Required
Yes
Coating
Powder Coated
Country of Origin
United States
Fastener Type
#12 x 2.5’’
Field Adjustable
Yes
Meets ANSI or OSHA Standards
Yes
Meets OSHA Standards
Yes
Package Contents
(1) Vertical Guardrail System (Bracket & Post)
Package Depth
2
Package Height
53
Package Weight
11
Package Weight (lbs)
11
Weight Capacity (lbs)
200
