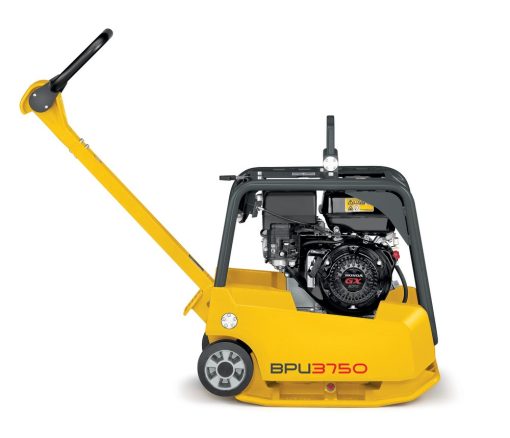

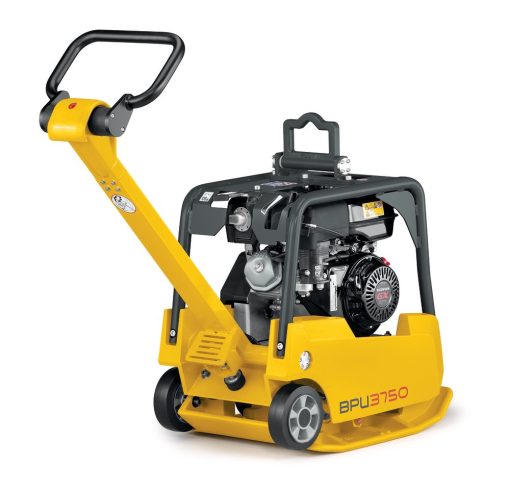

Wacker BPU3750A Reversable Vibratory Plate Compactor

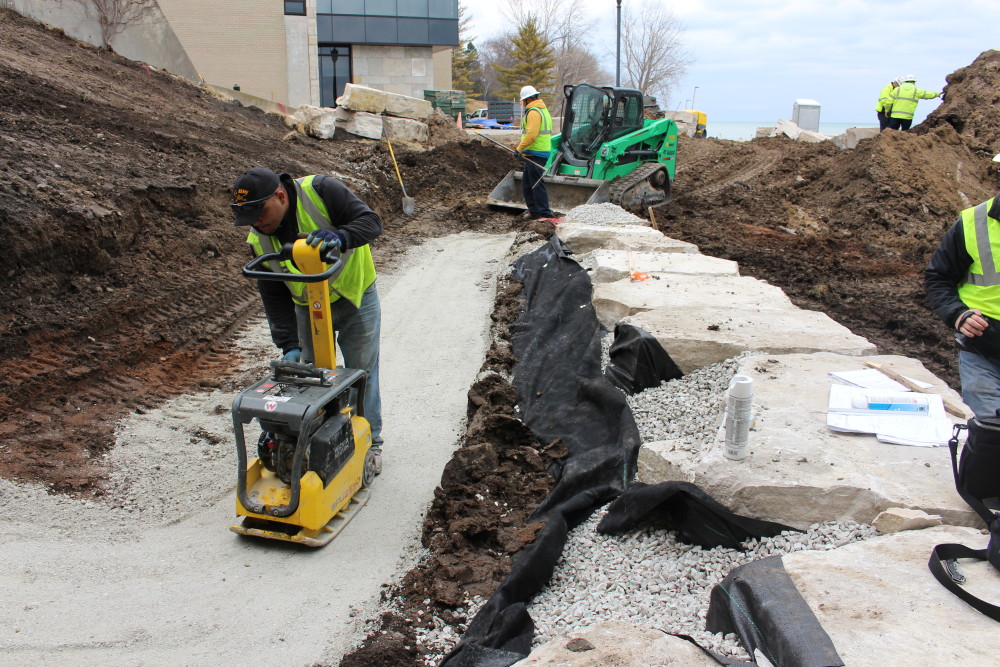

This reliable plate with a unique integrated wheel set deliver excellent compaction performance in their size class. The small dimensions and the great maneuverability, combined with high engine power, result in extraordinarily high productivity. Ideal for compaction of interlocking paving stones, trenches, landscaping and maintenance. Single lever direction control provides for easy operation.
Features
Intuitive control handle: Control of the movement of direction as well as the speed in the same movement sequence – without changing grips, both hands stay on the control unit
Low hand-arm vibrations (HAV) (well below 2.5 m/s²)
Height adjustable center pole
The engine and tank are protected by a sturdy frame, which is also useful for a sturdy tie-down during transport
Safety setting: Machine moves away from the operator if the control handle is released
Thick, wear resistant base plate made from nodular cast iron
Uniquely mobile: The integrated, very sturdy transport gear allows for easy transport on the construction site
Large-sized engine for a long service life
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5000610423
Adjustable Handle Height
Yes
Anti-Vibration Handle
Yes
Application
Crushed aggregate, mix soils, sands, asphalt, paving bricks
Assembled Depth (in)
51
Assembled Height (in)
52
Assembled Weight (lbs)
530
Assembled Width (in)
20
Battery Included
No
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color/Finish
Yellow
Compacting Plate Length (in)
28.9
Compacting Plate Material
Ductile Iron
Compacting Plate Width (in)
19.7
Compaction Equipment Type
Reversible Vibratory Plate Compactor
Country of Origin
Germany
Engine
Honda
Engine Starting Method
Recoil
Engine Type
Gasoline 4 Cycle
Extension Plates Included
No
Fuel Consumption (gph)
0.25
Height (in)
52
Lifting Bail Included
Yes
Material
Crushed aggregate, mix soils, sands, asphalt, paving bricks
Maximum Engine Output (hp)
8
Maximum Travel Speed (ft/min)
82
Package Contents
Unit and Operation Manual
Package Depth
30
Package Height
51
Package Weight
531
Package Weight (lbs)
531
Protective Cover
No
Surface Capability
Crushed aggregate, mix soils, sands, asphalt, paving bricks
Vibration Frequency (Hz)
90
Water Spray System Included
No
