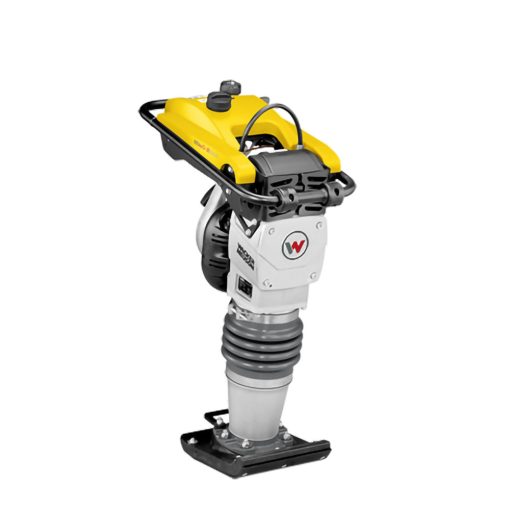

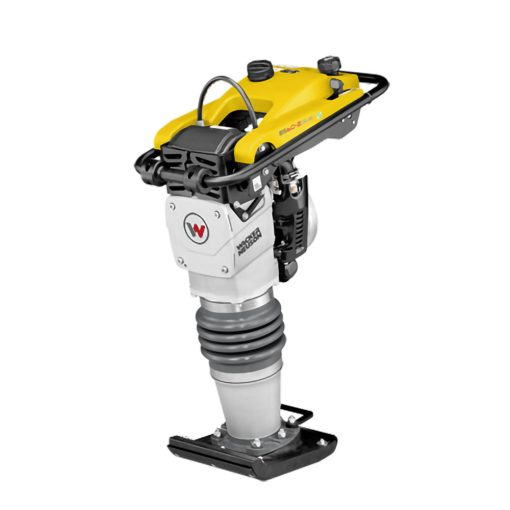

Wacker BS50-2Plus Oil Injected Vibratory Rammer 11″ Plastic Shoe
The patented Plus rammer series provides all the advantages of the classic two-stroke rammer, plus the convenience of a no-mix system. The two separate tanks for fuel and two-cycle oil eliminate premixing, and automatically provides the correct mix for long, clean running times. The Plus series rammers are available in three weight classes and are ideal for compaction of cohesive and mixed soil in trenches and other confined areas. The low center of gravity provides high performance and stability during operation.
Features
2-Cycle with Oil Injection
Lean fuel-to-oil ratio and large oil tank allow for up to 120 hours of run time
Optimized guide handle reduces hand-arm vibration and improves operator comfort

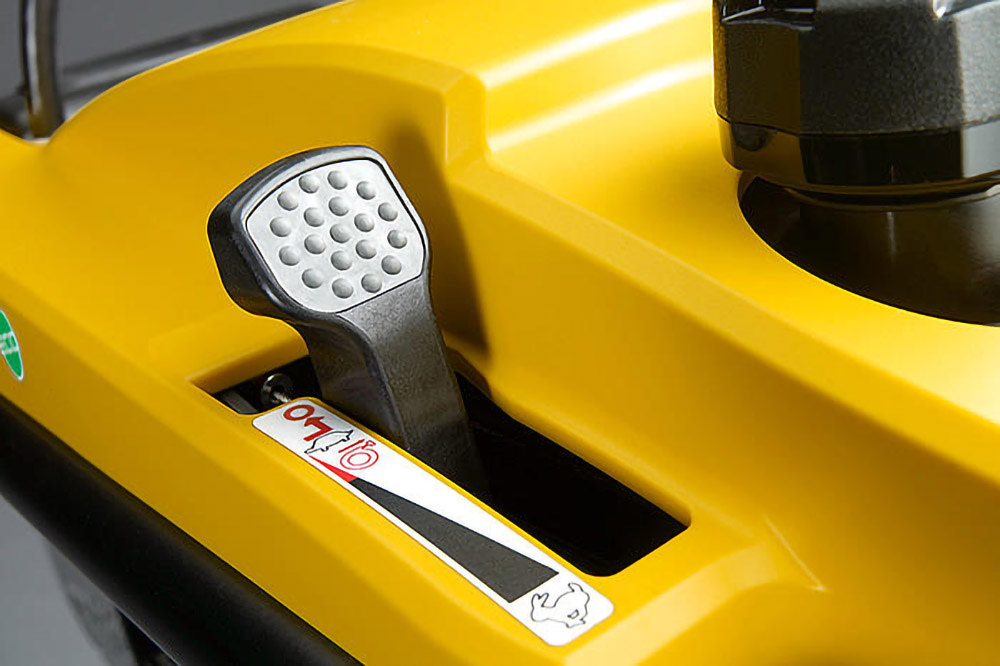

Comfortable operation with auto-choke and only one lever for idling, starting and stopping
Automatic shutdown after 10 minutes if left idling reduces emissions or when starting with an empty oil tank

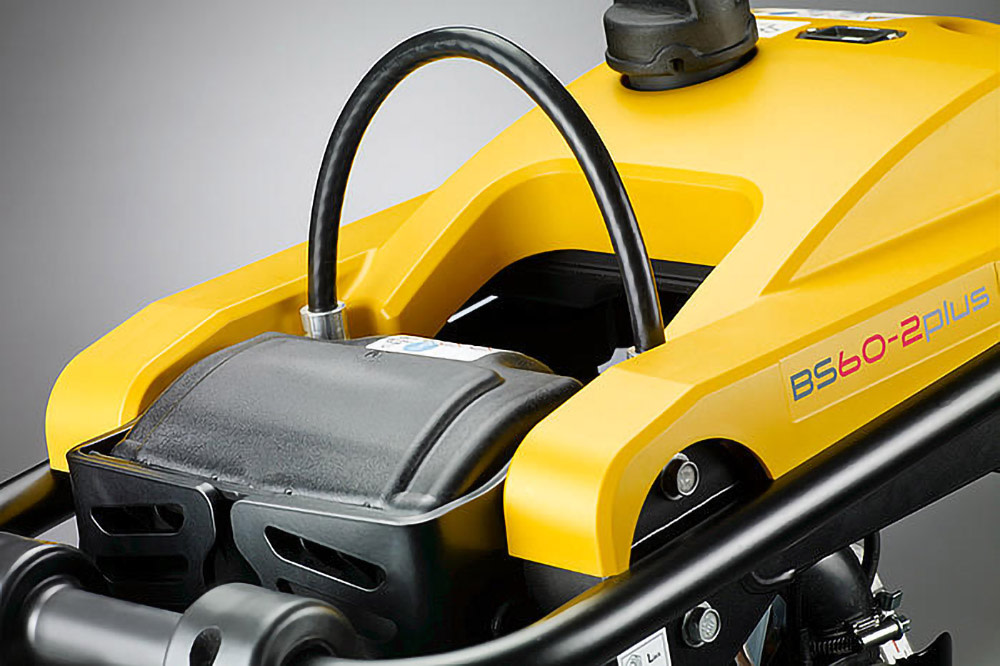

A unique four-stage air filtration provides a virtually dust-free engine for longer life and improved durability. The system includes a last chance filter that protects the engine during air filter maintenance
Easy to transport
Hour meter
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100030594
Assembled Weight (lbs)
130
California Proposition 65 Warning Required
Yes
Capacity
Fuel: .8 Gal
CARB Compliant
Yes
Compacting Plate Length (in)
13.4
Compacting Plate Width (in)
5.9
Compaction Equipment Type
Rammer
Country of Origin
Germany
Engine Displacement (in³)
4.9
Engine Oil Capacity (qt)
.32
Engine Starting Method
Crank Handle / Recoil
Engine Type
Gasoline 2 cycle
Fuel Consumption (gph)
.26
Fuel Tank Capacity (gal)
.8
Maximum Engine Output (hp)
2.3
Maximum Sound Output (dB)
95
Package Contents
BS50-2plus with 11″ Plastic Shoe
Package Depth
26.5
Package Height
37
Package Weight
131
Package Weight (lbs)
131
Ramming Force (kN)
16
Ramming Speed (SPM)
700
