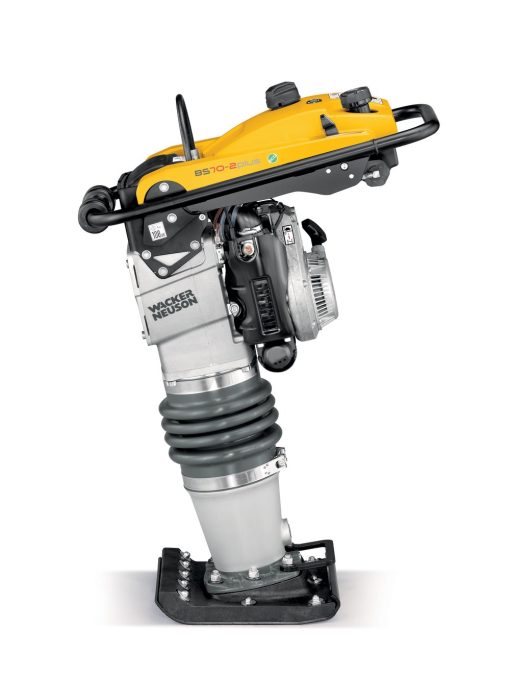

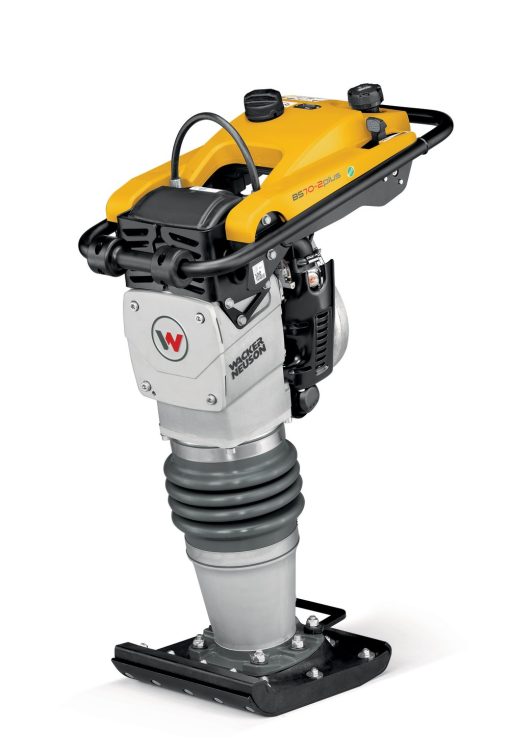

Wacker BS70-2plus Rammer 11″
Wacker Neuson’s rammers have set the standard in the construction industry. These rammers are powered by the exclusive WM 80, the only 2-stroke engine specifically designed and built for vibratory rammers and meets EPA air emission standards. Wacker Neuson’s rugged rammers are designed for maximum production, performance and durability.
Features
Driven by the exclusive WM80 2-cycle engine with catalytic converter, which was designed and developed by Wacker Neuson specifically for demanding ramming applications
The lowest CO-emissions, significantly below all four-cycle engines
High performance, maximum jump height and impact force
Maximum convenience when refuelling and always the right mixing ratio: Two separate tanks for fuel and two-cycle oil. One oil tank refuelling suffices for 120 hours of operation. Lockable oil tank cap available as an accessory.
Thanks to the automatic injection, always the optimal combustion and maximum performance.
Automatic shutdown of the engine after 10 minutes at idle in order to reduce fuel consumption and emissions
Specially designed and developed 4-stage air filter system provides for longer operating time and greater durability
With operating hours counter
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100030608
Adjustable Handle Height
No
Anti-Vibration Handle
Yes
Application
Crushed aggregate, mix soils, sands, asphalt, clay
Assembled Depth (in)
26.5
Assembled Height (in)
37
Assembled Weight (lbs)
163
Assembled Width (in)
13.5
Battery Included
No
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color/Finish
Yellow
Compacting Plate Length (in)
13
Compacting Plate Material
Steel, Plastic
Compacting Plate Width (in)
11
Compaction Equipment Type
Rammer
Country of Origin
Germany
Engine
Wacker Neuson
Engine Starting Method
Recoil
Engine Type
Gasoline 2 cycle
Extension Plates Included
No
Fuel Consumption (gph)
0.3
Height (in)
37
Lifting Bail Included
Yes
Material
Crushed aggregate, mix soils, sands, asphalt, clay
Maximum Engine Output (hp)
4
Maximum Travel Speed (ft/min)
29
Package Contents
Unit and Operation Manual
Package Depth
27
Package Height
39
Package Weight
164
Package Weight (lbs)
164
Protective Cover
Yes
Surface Capability
Crushed aggregate, mix soils, sands, asphalt, clay
Vibration Frequency (Hz)
11.6
Water Spray System Included
No
