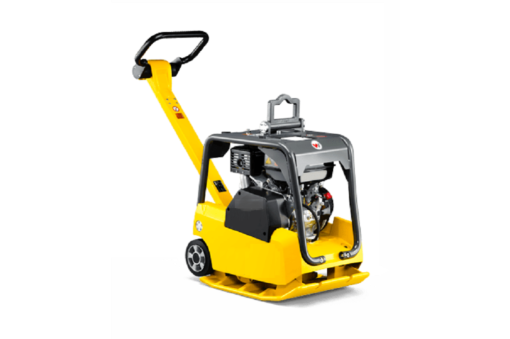

Wacker DPU 3050H Reversible Vibratory Plates Compactor with Hatz Diesel Engine
These reversible plates are ideal for the compaction of interlocking paving stones, trenches, landscape and municipal applications. They come with a unique, integrated wheel set that provides easy one-person movement around the job or shop.
Features
Single lever direction control provides for easy forward and reverse operation
Adjustable guide handle can be locked into a vertical position for easy transportation and storage
Easy access throttle control simplifies operation and reduces operator fatigue
Heavy duty frame features an integral central lifting point for easy on/off loading and placement of plate into trenches
Specially designed shockmount system offers virtually vibration-free guide handle for operator comfort and increased productivity
Reversible vibratory plate
Hatz diesel engine
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100000310
Assembled Weight (lbs)
386
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 1.3 Gal
CARB Compliant
Yes
Compacting Plate Length (in)
35
Compacting Plate Width (in)
19.7
Compaction Equipment Type
Reversible Vibratory Plate Compactor
Country of Origin
Germany
Engine
Hatz air-cooled, single-cylinder, four-cycle diesel engine
Engine Type
Diesel
Fuel Consumption (gph)
.15
Fuel Tank Capacity (gal)
1.3
Maximum Sound Output (dB)
0
Maximum Travel Speed (ft/min)
68.9
Package Contents
Compacter and Owner’s Manual
Package Depth
40
Package Height
35
Package Weight
400
Vibration Frequency (Hz)
90
