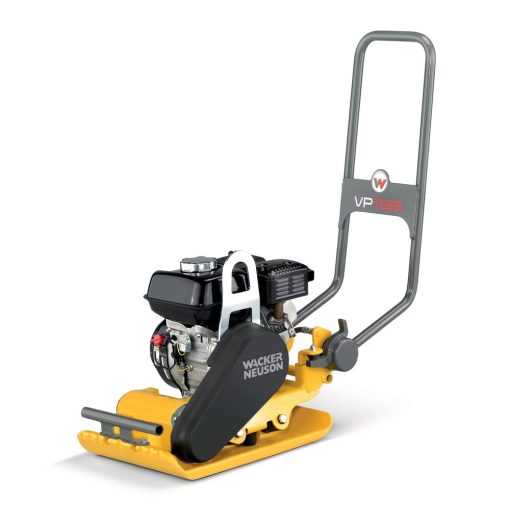

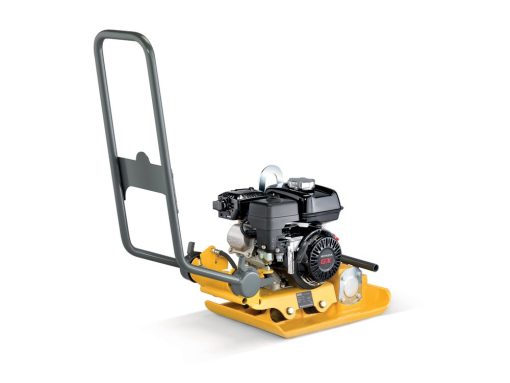

Wacker VP1135A Single Direction Vibratory Plate Compactor
The Wacker Neuson vibratory plates offer functionality and performance at a value price. The compact design allows for compaction of mixed soils in the narrowest of spaces – even in extremely narrow trenches. The guide handle with vibration dampening means longer working hours and less fatigue for the operator.
Features
Compact single direction vibratory plate, for occasional compaction work
Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.
A large sturdy lifting eye allows for secure transport. The guide handle that can be folded forward converts the unit into a compact unit in no time
Accessories, paving stone sliding mechanism as well as water tank with sprinkler set available.
“Low-vibration” guide handle greatly improves operator comfort and minimizes
operator fatigue.
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100029064
Adjustable Handle Height
Yes
Anti-Vibration Handle
Yes
Application
Crushed aggregate, mix soils, sands, asphalt, paving bricks
Assembled Depth (in)
35
Assembled Height (in)
35
Assembled Weight (lbs)
137
Assembled Width (in)
14
Battery Included
No
California Proposition 65 Warning Required
Yes
CARB Compliant
Yes
Color/Finish
Yellow
Compacting Plate Length (in)
20.5
Compacting Plate Material
Ductile Iron
Compacting Plate Width (in)
14
Compaction Equipment Type
Vibratory Plate Compactor
Country of Origin
Germany
Engine
Honda
Engine Starting Method
Recoil
Engine Type
Gasoline 4 Cycle
Extension Plates Included
No
Fuel Consumption (gph)
0.25
Height (in)
35
Lifting Bail Included
Yes
Maximum Engine Output (hp)
4
Maximum Travel Speed (ft/min)
85
Package Contents
Unit and Operation Manual
Package Depth
37.5
Package Height
33
Package Weight
138
Package Weight (lbs)
138
Protective Cover
No
Surface Capability
Crushed aggregate, mix soils, sands, asphalt, paving bricks
Vibration Frequency (Hz)
97
Water Spray System Included
No
