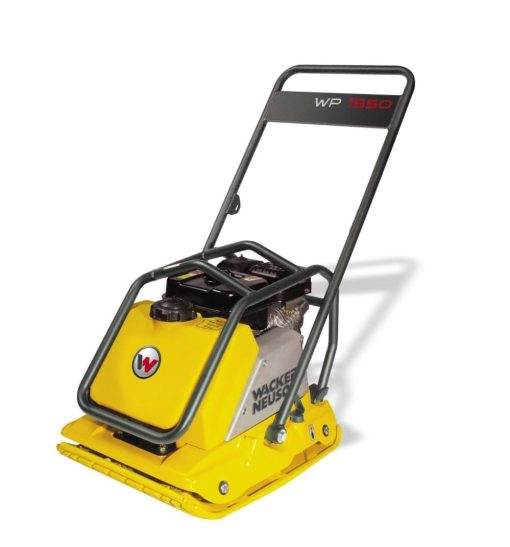

Wacker WP1550AW Single Directional Vibratory Plate with Water Tank
The WP premium plate series feature a patented computer designed base plate that has a tapered bottom and edges for high speed and excellent maneuverability. Designed for the compaction of granular, mixed materials with some cohesive content. Water tank models are available for asphalt applications. These plates have set the standard for performance and durability in confined areas such as parking lots, highway and bridge construction, next to structures, curbs and abutments. WP plates are also popular for landscape application for sub base and paver compaction.
Features
Lightweight, high strength aluminum components keep machine weight down and allow for way handling.
Straight, center-mounted guide handle offers superior maneuverability and can be lowered within inches of the surface to operate the plate under obstacles and form work.
Tough, wear resistant ductile iron base plate offers durability and shock resistance.
Water tank models have a large capacity polyethylene tank that includes a large filter inside the tank to prevent clogging during operation and can be easily removed for cleaning and draining.
Specifications
Acme Tools Brand Name
WACKER NEUSON
Acme Tools Part Number
5100018324
Adjustable Handle Height
Yes
Anti-Vibration Handle
Yes
Application
Asphalt
Assembled Weight (lbs)
190
Battery Included
No
Bore Diameter (in)
1.0
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 0.975 Gal
CARB Compliant
Yes
Color / Finish
Aluminum base plate
Compacting Plate Length (in)
23
Compacting Plate Material
Aluminum
Compacting Plate Width (in)
19.5
Compaction Equipment Type
Vibratory Plate Compactor
Country of Origin
Germany
Engine
Honda
Engine Oil Capacity (qt)
0.5
Engine Starting Method
Recoil
Engine Type
Gasoline 4 Cycle
Extension Plates Included
No
Fuel Consumption (gph)
0.5
Fuel Tank Capacity (gal)
0.975
Internal Supplier Part #
5100018324
Internet Product Code (IPC)
EEE460E58BD
Lifting Bail Included
Yes
Manufacturer Warranty
One year standard warranty
Maximum Engine Output (hp)
5
Maximum Sound Output (dB)
93
Maximum Travel Speed (ft/min)
100
Overall Height (in)
38
Overall Length (in)
23
Overall Weight (lbs)
190
Overall Width (in)
19.5
Package Contents
Operators manual
Package Weight
205
Package Weight (lbs)
205
Protective Cover
No
Surface Capability
Asphalt
Vibration Frequency (Hz)
100
Water Spray System Included
Yes
Water Tank Capacity (qt)
8.0
