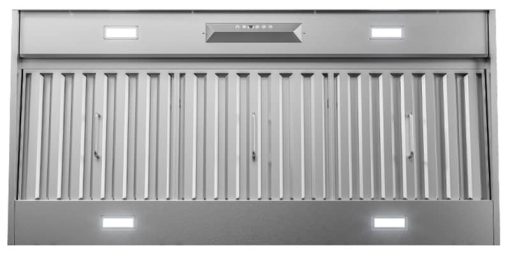

Zephyr Monsoon II 54″ Stainless Steel Hood Insert

Zephyr AK9352BS Monsoon II 54″ Stainless Steel Hood Insert

Now available with LumiLight LED lighting and our exclusive ACT™ technology, Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.

Features

• LumiLight LED Lighting
• Dual-Level Lighting
• 22-1/2″ Depth
• Airflow Control Technology™ (ACT™)
• CleanAir Function
• Professional Baffle Filters
• Electronic Touch Controls

Specifications

Blower Performance

• Blower CFM (Min. – Max.): 450 – 1,200
• Sones (Min. – Max.): 3.5 – 9
• ACT 590 CFM (Min. – Max.): 350 – 590
• ACT 590 Sones (Min. – Max.): 3.3 – 6
• ACT 390 CFM (Min. – Max.): 350 – 390
• ACT 390 Sones (Min. – Max.): 3.3 – 4

General

• ACT™ Technology: Yes
• Controls: Electronic Touch
• Speed Levels: 6*
• Auto Delay-Off : Yes
• CleanAir Function: Yes
• Lighting: LumiLight LED, 6W x4
• Dual-Level Lighting: Yes
• Filters: Pro Baffle x3
• Grease Collection Tray: Yes
• Wireless Remote Control: Yes
• Recirculating Option: No
• ADA Compliant: Yes

Duct

• Vertical Internal Blower: 10” Round
• Horizontal Internal Blower: NA
• AC POWER: 120V, 60Hz at Max. 7A

Mounting Height Range**

• 26″ – 36″

Approximate Dimensions

• Height: 12″
• Width: 52-3/8″
• Depth: 22-1/2″

Warranty Information

Footnotes:

• *When ACT™ is enabled the maximum speed levels will change. ACT 590 CFM = 3 speeds and ACT 390 CFM = 2 speeds.
• **Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
